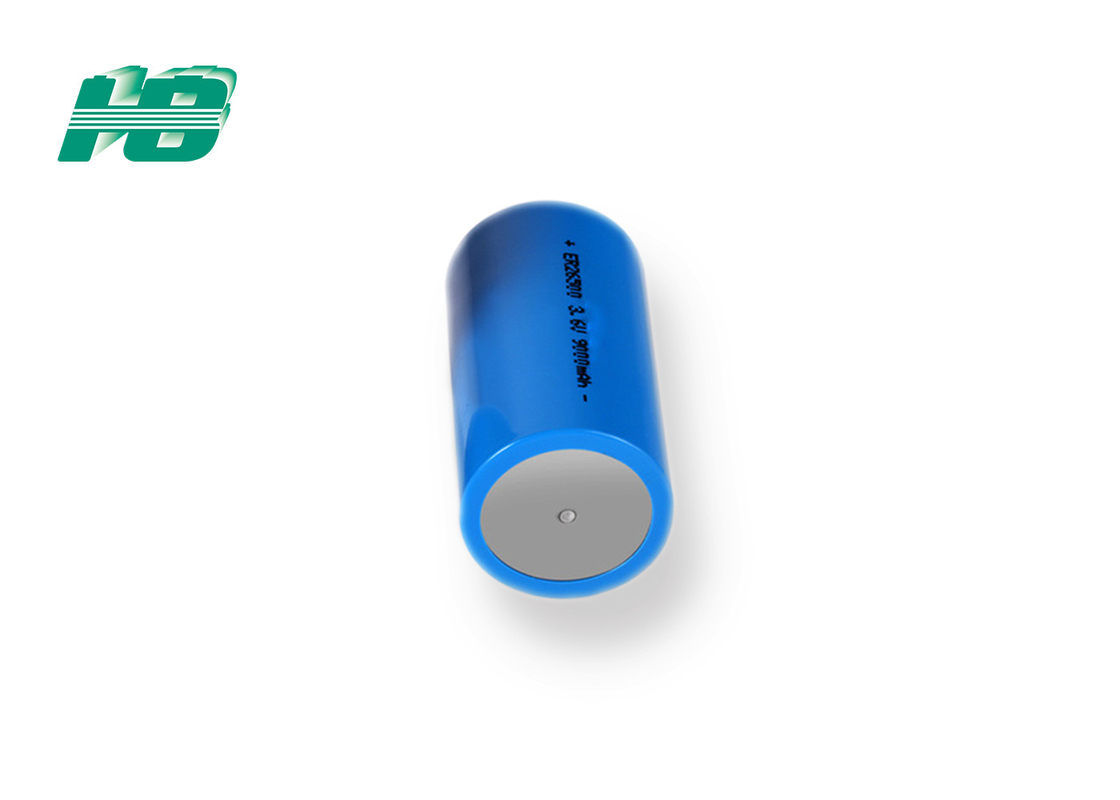

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage-16 years lithium battery expert

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: ER26500-9000mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
Shape:A Max.Size:Ø26.2*50.0mm
NominalVoltage:3.6V Capacity:9000mAh
Max.continuousCurrent:150mA 11

Product Description

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage

1. Model


2.1 Technical Parameters

Nominal capacity 9000mAh
Nominal voltage 3.6V
Max.continuous current 150mA
Max.pulse current capability 300mA
Weight Approx.55g
Dimension Ø26.2*50.0mm
Operating temperature range -60℃ ~+85℃


2.2 Battery Dimension

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage 0

2.3 Voltage vs. Temperature

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage 1

2.4 Discharge Characteristics(25℃ )

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage 2

2.5 Capacity vs. Current

9000mah 3.6v Water Meter Battery Disposable Type Stable Operating Voltage 3

3.Main Characteristics

High and stable operating voltage

Low self-discharge rate(less than 1% after 1 year storage at +25℃ )

Hermetic glass-to-metal sealing

Non-flammable electrolyte

Bobbin type

UL,CE,SGS recognized

ISO9001 approved

4.Application Area

CMOS memory, water, electricity, and other metering instruments and automatic electronic toll payment systems such as highway transit (that is, ETC system, but a better solution is to replace it with a lithium-manganese soft-pack battery), program logic controller and wireless security Power supply for radio frequency identification (RFID) devices such as alarm systems (this solution can be replaced by 3V lithium manganese button and soft pack batteries)

5.Warning and Attention

HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:

1) It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.

2) It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.

3) It is prohibited to disassemble, open, chop or puncture the battery pack with metal.

4) It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

5) It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

6) It is prohibited to subject a battery or battery pack to mechanical shock.

7) In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.

8) Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.

9) Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.

10) Keep the battery pack clean and dry.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.

12) Do not charge the battery pack for a long time.

13) The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.

14) Keep the original specification of the product for future reference.

15) Dispose of waste batteries or batteries in accordance with national environmental protection laws.

6.Model reference table

                                                                Li-SOCl2 Battery

Type Shape Model

(Ømmxmm )


(v) Nominal


(v) Termination





Max.Constant current





1/2AA ER14250 14.5X25.4 3.6 2 1200 25 11
2/3AA ER14335 14.5X33.5 3.6 2 1650 40 13
AA ER14505 14.5X50.5 3.6 2 2700 50 19
2/3A ER17335 17.0X33.5 3.6 2 2200 100 19
A ER18505 18.5X50.5 3.6 2 4000 100 32
C ER26500 26.2X50.0 3.6 2 9000 150 55
CC ER261020 26.2X102.00 3.6 2 17000 200 100
D ER34615 34.0X61.5 3.6 2 19000 230 107
DD ER341245 34.0X124.5 3.6 2 35000 400 220
  ER9V 17.0X26.5X48.8 10.8 6 1200 25 34



1/2AA ER14250M 14.5X25.5 3.6 2 800 100 11
2/3AA ER14335M 14.5X33.5 3.6 2 1300 200 15
AA ER14505M 14.5X50.5 3.6 2 2200 400 19
2/3A ER17335M 17.0X33.5 3.6 2 1900 400 19
A ER18505M 18.5X50.5 3.6 2 3500 1000 32
C ER26500M 26.2X50.0 3.6 2 6500 1500 55
D ER34615M 34.0X61.5 3.6 2 14500 2000 110
