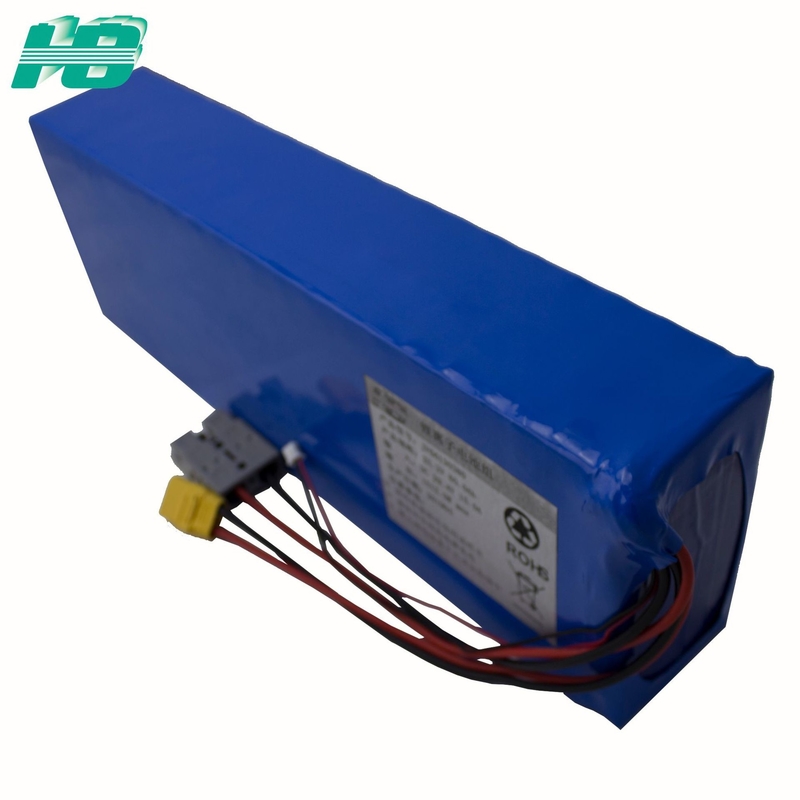

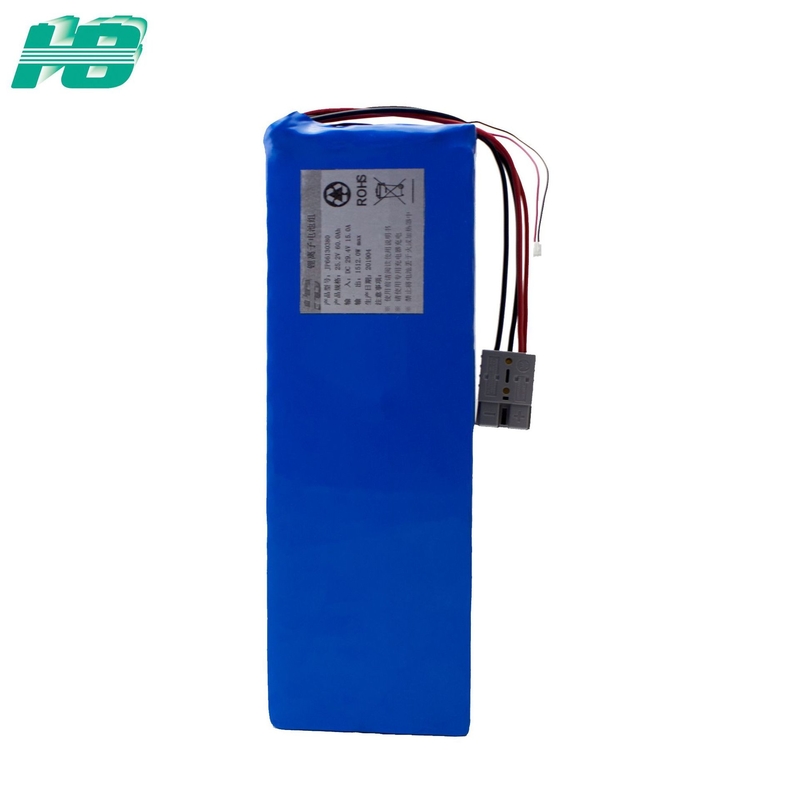

25.2V 60Ah Low Temperature Lithium Ion Battery For Logistics Vehicle

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB 21700 25.2V 60Ah 7S15P
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalCapacity:60AhType:217007S15P25.2V60Ah
Size:485*230*110mmNominalVoltage:25.2V
CycleLife:≥500Times(80%)11
Weight:About10.5kg
HighLight:softpacklithiumbattery,lithiumiondronebattery

Product Description

1. Product Configuration

No. Item SPEC

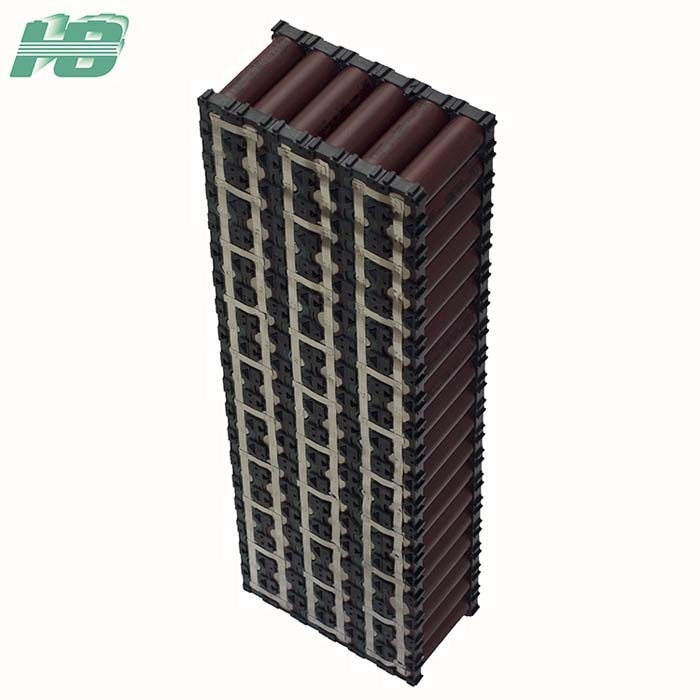

1 21700CL battery pack 7S10P-25.2V-40Ah
2 BMS 7S10P 50A
3 Wire / terminal 6 # silicone wire



No. SPEC
1 W MAX:240mm
2 T MAX:170mm
3 H MAX:80mm



2. Product Specification

No.



 Items Rated Performance Remarks
1 Nominal Capacity 40.0Ah

Discharge at 0.2C after standard charge fully.

Minimum Capacity



 40.0Ah
2 Nominal Voltage 25.2V
3

End-of-Voltage at end of Discharge

 17.5V
4

End-of-Charging Voltage/

 29.4V
5 AC Impedance  ≤100mΩ AC 1KHz
6

Standard charge current

 8.0A 0.2C
7

Standard discharge current

 8.0A 0.2C
8 Fast Charge 0.5C CC →4.2 V cutoff Charge time: Approx 2.5h.
9 Fast Discharge 0.5C CC→2.5V cutoff
10 Maximum Continuous Charge Current 20.0A 0.5C
11 Maximum Continuous Discharge Current 40.0A 1C



12

Operation Temperature Range

 Charge:-20℃~60℃ Humidity60±25%
Discharge: -40~70℃
13

Storage T/H Range



 -55~35℃/60±25% /
14 Weigh Approx/About:5.5KG /





15



Discharge at Low Temperature



1) Standard Charge

2) Put the cell into -40±2℃ low temp oven for 4 hours and discharge at 0.2C CC to 2.5V/cell at the low temperature.



0.2C Discharge

capacity 80%




3. PCM parameter

No. ITEM  Criteria
1

Over-charge Protection voltage

 29.4 – 29.45V
2

Over-discharge Protection voltage

 14.0V
3

Over current Protection current

 70A
4

Inner resistance

 ≤100mΩ
5 Normal current consumption ≤30μA
