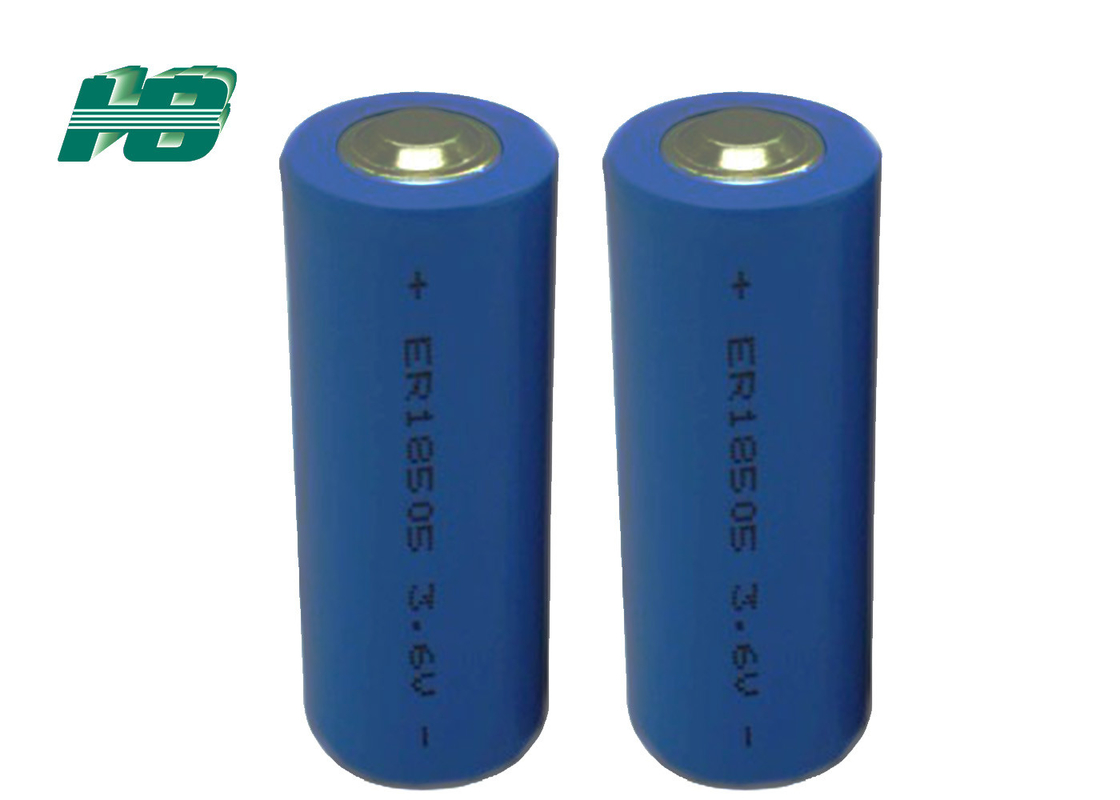

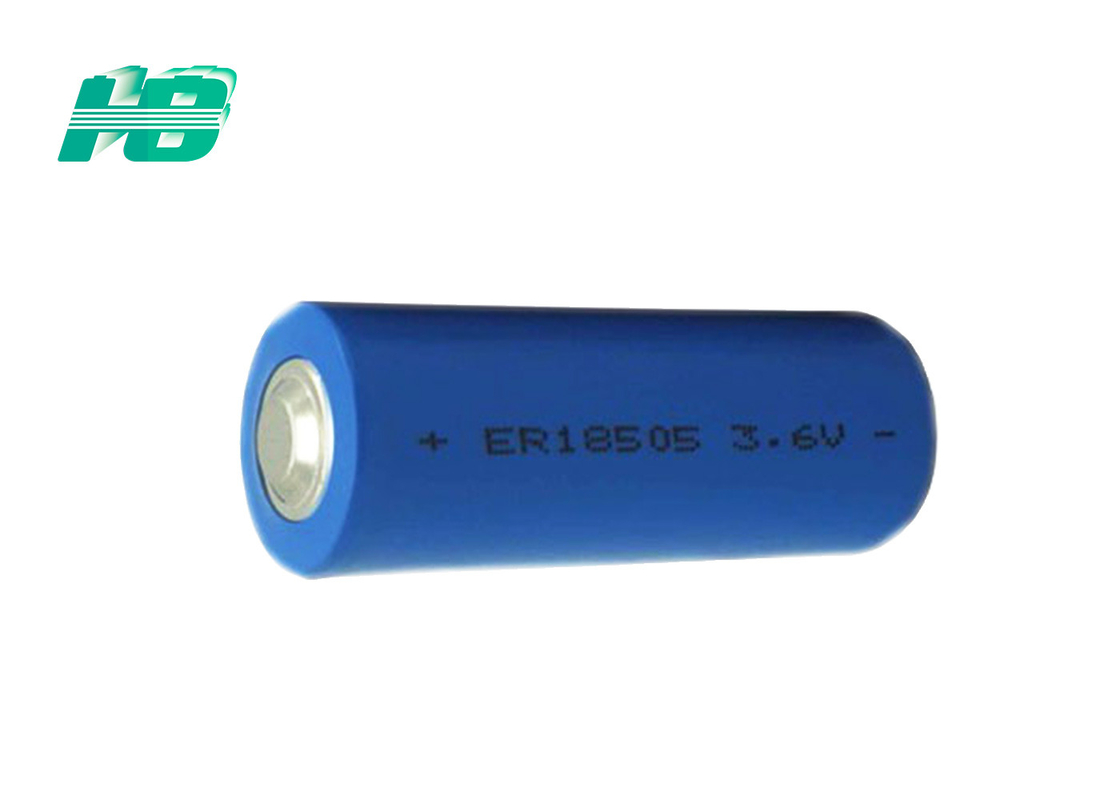

3.6v Lithium Thionyl Chloride Battery Disposable 3500mah ER18505M Spiral Type

Basic Information
Place of Origin:CHINA
Brand Name:HB
Certification:ROHS
Model Number:ER18505M-3500mAh
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information
Shape:AMax.Size:18.5*50.5mm(max)
NominalVoltage:3.6VTerminationVoltage:2V
Capacity:3500mAhMax.CotantCurrent:1000mA
Weight:55gHighLight:lithiumprimarybattery,lithiummanganesedioxidebattery

Product Description



Lithium Thionyl Chloride 3.6v disposable 3500mAh disposable battery ER18505M



1.Model

   ER18505M-3500mAh





2.Technical parameters



2.1 Data sheet



Nominal capacity3500mAh
Nominal voltage3.6V
Max.continuous current1000mA
Max.pulse current capability2000mA
WeightApprox.32g
DimensionØ18.5*50.5mm
Operating temperature range

-60℃ ~+85℃





2.2 Battery Dimension



3.6v Lithium Thionyl Chloride Battery Disposable 3500mah ER18505M Spiral Type 0





2.3 Voltage vs. Temperature

3.6v Lithium Thionyl Chloride Battery Disposable 3500mah ER18505M Spiral Type 1



2.4 Discharge Characteristics(25℃ )

3.6v Lithium Thionyl Chloride Battery Disposable 3500mah ER18505M Spiral Type 2



2.5 Capacity vs. Current

3.6v Lithium Thionyl Chloride Battery Disposable 3500mah ER18505M Spiral Type 3







3.Main Characteristics

     – High and stable operating voltage

     – Low self-discharge rate(less than 1% after one-year storage at +25℃ )

     – Hermetic glass-to-metal sealing

     – Non-flammable electrolyte

     – Spiral type

     – UL,CE,SGS recognized

     – ISO9001 approved



5.Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:

1) It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.

2) It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.

3) It is prohibited to disassemble, open, chop or puncture the battery pack with metal.

4) It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

5) It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

6) It is prohibited to subject a battery or battery pack to mechanical shock.

7) In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.

8) Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.

9) Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.

10) Keep the battery pack clean and dry.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.

12) Do not charge the battery pack for a long time.

13) The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.

14) Keep the original specification of the product for future reference.

15) Dispose of waste batteries or batteries in accordance with national environmental protection laws.



6.Model reference table



                                                                                  Li-SOCl2 Battery

TypeShapeModel

(Ømmxmm )

Max.Size

(v) Nominal

Voltage

(v) Termination

Voltage

(mAh)

Capacity

(mA)

Max.Constant current

(g)

weight

Bobbin

type

1/2AAER1425014.5X25.43.6212002511
2/3AAER1433514.5X33.53.6216504013
AAER1450514.5X50.53.6227005019
2/3AER1733517.0X33.53.62220010019
AER1850518.5X50.53.62400010032
CER2650026.2X50.03.62900015055
CCER26102026.2X102.003.6217000200100
DER3461534.0X61.53.6219000230107
DDER34124534.0X124.53.6235000400220
 ER9V17.0X26.5X48.810.8612002534

Spiral

type

1/2AAER14250M14.5X25.53.6280010011
2/3AAER14335M14.5X33.53.62130020015
AAER14505M14.5X50.53.62220040019
2/3AER17335M17.0X33.53.62190040019
AER18505M18.5X50.53.623500100032
CER26500M26.2X50.03.626500150055
DER34615M34.0X61.53.62145002000 110
