9060100 7500mah Large Capacity Lithium Battery 1600ma Standard Charge Current 7.4V

Basic Information
Place of Origin:CHINA
Brand Name:HB
Model Number:HB9060100-7500mAh
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information

Product Description

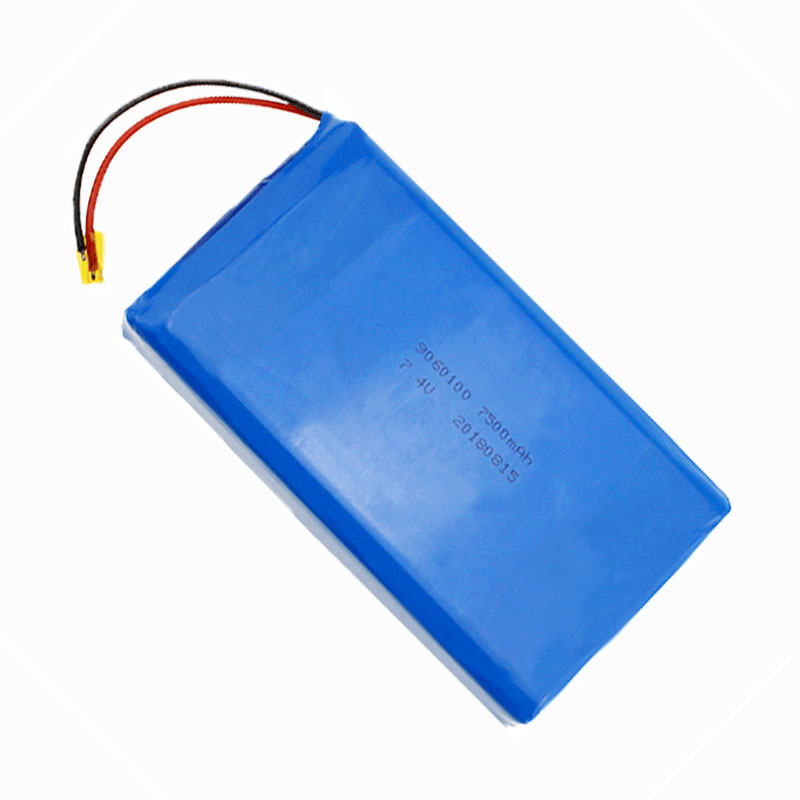

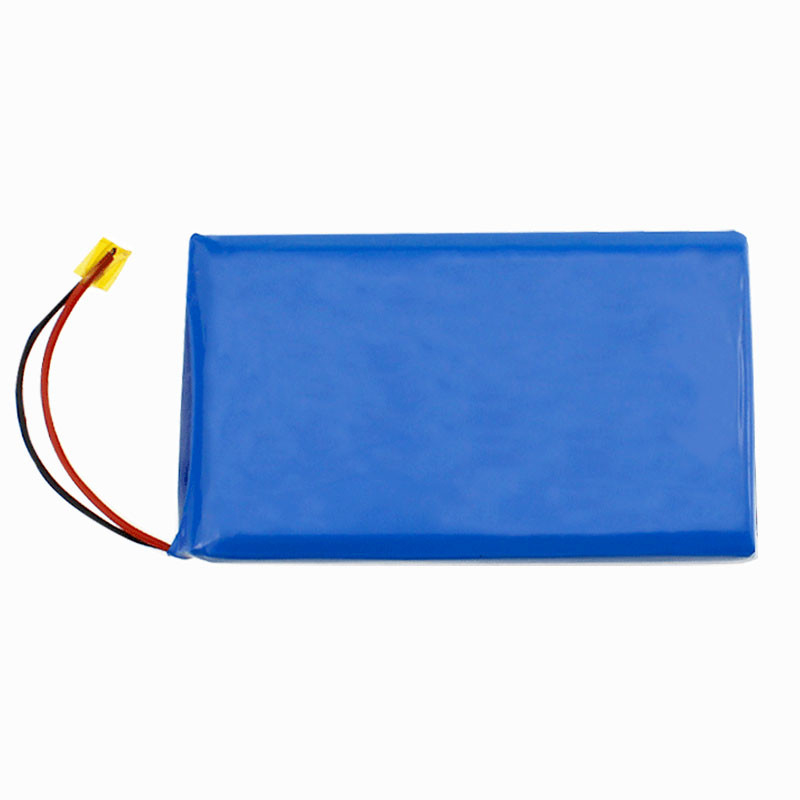

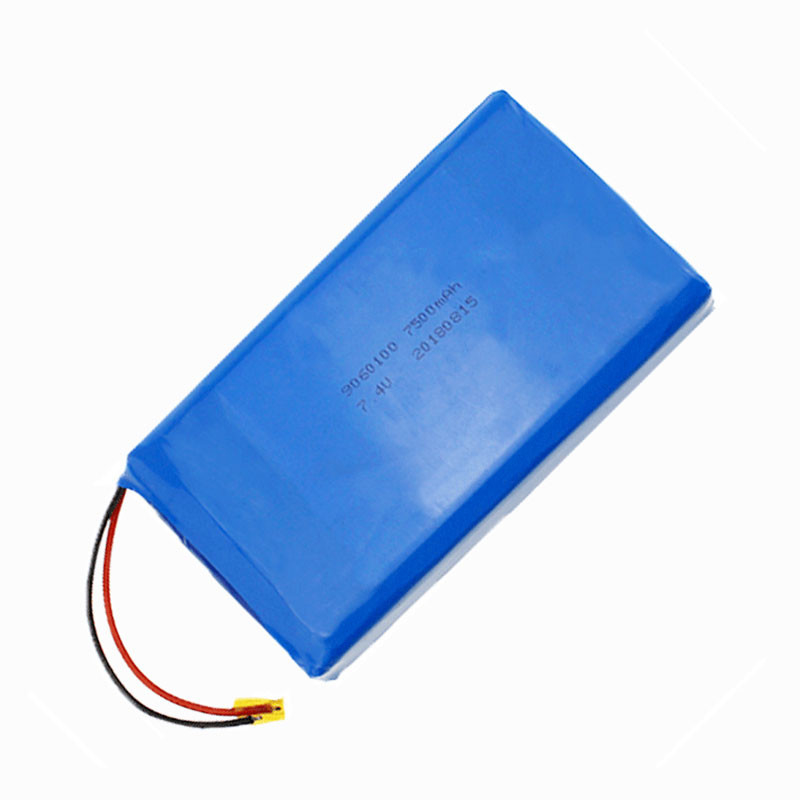

9060100 Li-Polymer Battery 7500mAh large capacity lithium battery


1. Technical Parameters


ItemsRated PerformanceRemarks
Nominal Capacity8000mAh

Discharge at 0.2C after standard charged fully.

Nominal Voltage7.4V

Voltage at end of Discharge

AC Impedance ≤200mΩAC 1KHz

Standard charge current


Standard discharge current

Fast Charge0.5C CC/CV →8.4VC cutoffcharge time:A pprox 2.5h.
Fast Discharge0.5C CC→5.0V cutoff
Maximum Continuous Charge Current4000mA
Maximum Continuous Discharge Current8000mA

Operation Temperature Range

Charge: 0~45℃Humidity60±25%
Discharge: -20~60℃

Storage T/H Range

Product DimensionLength:102mm(MAX)

Initial dimension

Width: 61mm(MAX)
Cable Length:60±3mm

HB has a strong customer service team and operation team that can communicate with customers in a timely and effective manner. The technical team now has more than 70 scientific researchers, including senior engineers in the fields of electrochemistry, structure, electronics, materials, measurement, and control, and power supply Many people.


3. Warning and Cautions

Danger warning(it should be described in manual or instruction for users, indicated especially) to prevent the
possibility of the battery from leaking, heating, explosion. Please observe the following precautions:

◆ Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using

◆ Do not discard or leave the battery near a heat source as fire or heater

◆ Being charged, using the battery charger specifically for that purpose

◆ Don’t reverse the positive and negative terminals

◆ Don’t connect the battery to an electrical outlet directly

◆ Don’t connect the positive and negative terminal directly with metal objects such as wire. Short
terminals of battery is strictly prohibited, it may damage battery

◆ Do not transport and store the battery together with metal objects such as necklaces, hairpins

◆ Do not strike, throw or trample the battery

◆ Do not directly solder the battery and pierce the battery with a nail or other sharp object

◆ Do not use it with other different battery, or other different lithium polymer battery model in mxture

◆ Prohibition of use of damaged cells

◆ Don’t bend or fold sealing edge. Don’t open or deform folding edge. Don’t fillet the end of the
folding edge

◆ Don’t fall, hit, bend battery body

◆ Battery pack designing and packing Prohibition injury batteries

◆ Never disassemble the cells

◆ The battery replacement shall be done only by either cells supplier or device supplier and never be
done by the user

◆ Keep the battery away from babies

◆ Any components contacting these two edges, they must be insulated
