Home » Products » Li Polymer Battery » 853450 1500mah Rechargeable Battery , 3.7v Soft Pack Battery 500 Times Cycle Life

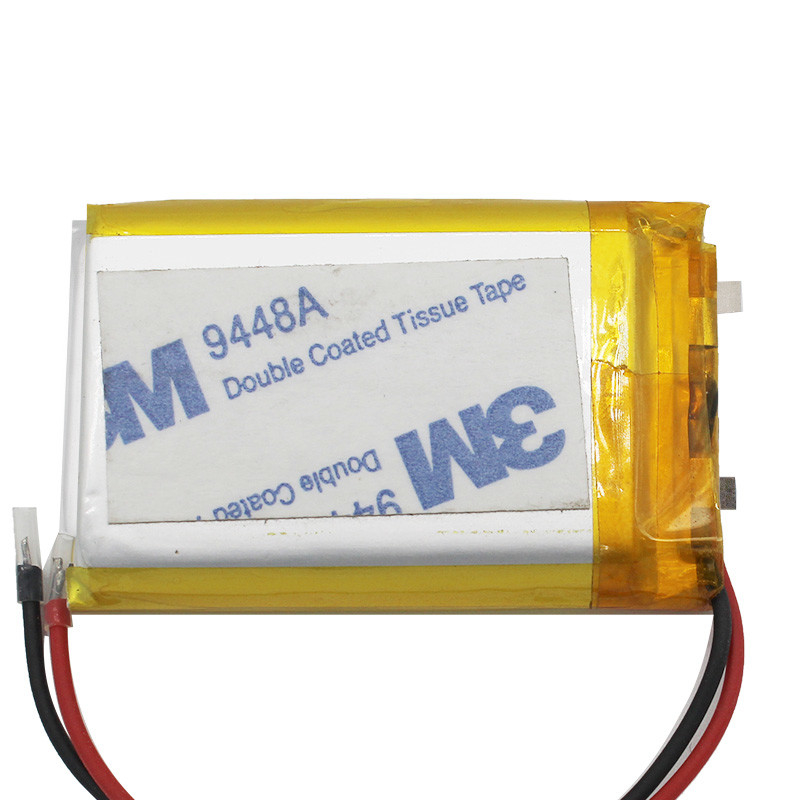

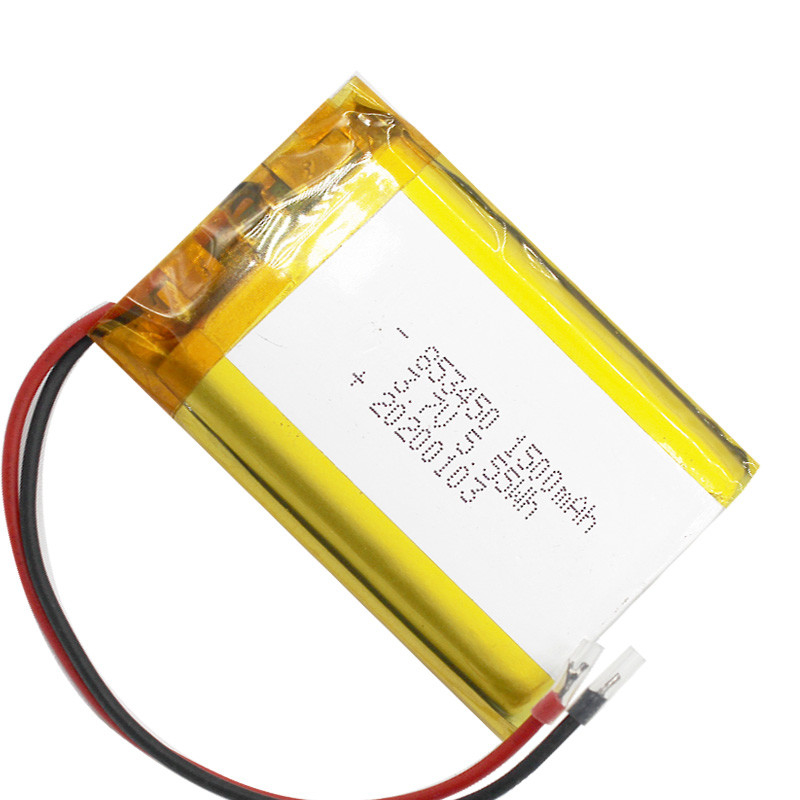

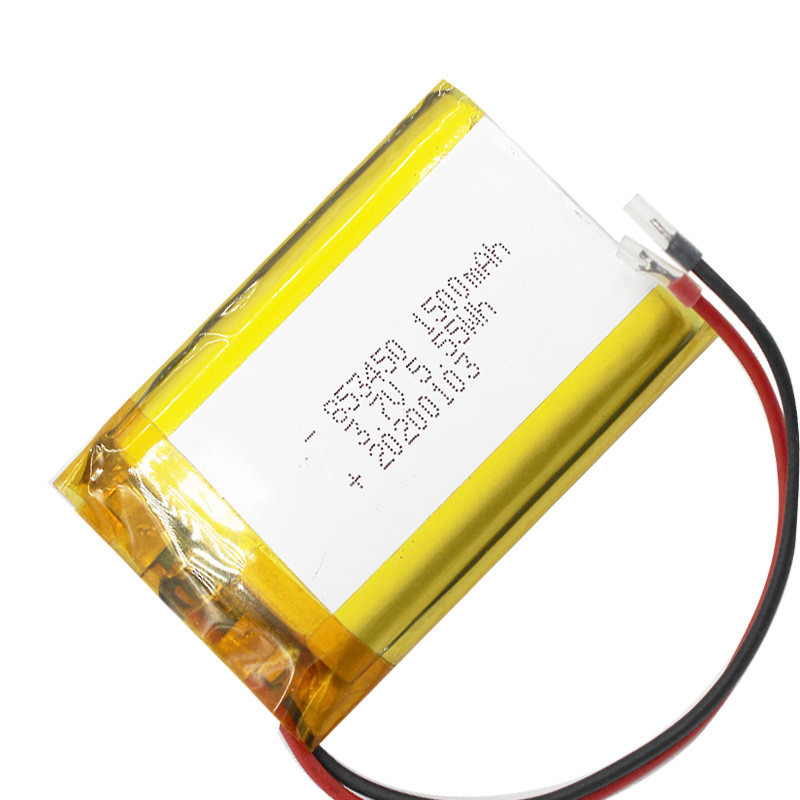

853450 1500mah Rechargeable Battery , 3.7v Soft Pack Battery 500 Times Cycle Life

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number:
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7VNominalCapacity:1500mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:ternarylithiumionbattery,hightemperatureresistantbattery

Product Description



853450 polymer lithium battery 1500mAh soft pack rechargeable battery 3.7V



1. Technical Parameters



Items Rated Performance Remarks
Nominal Capacity 1500mAh

Discharge at 0.2C after standard charge fully.


Nominal Voltage 3.7V

Voltage at end of Discharge

 2.5V ±0.1V
AC Impedance  ≤150mΩ AC 1KHz
Standard Charge 0.2C CC/CV→0.02C cutoff Charge time: Approx 6.0h.
Standard Discharge 0.2C CC→2.5V cutoff
Fast Charge 1C CC/CV →0.02C cutoff Charge time: Approx 2.5h.
Fast Discharge 1C CC→2.5V cutoff
Maximum Continuous Charge Current 750mA
Maximum Continuous Discharge Current 1500mA

Operation Temperature Range

 Charge: 0~45℃ Humidity60±25%
  Discharge: -20~50℃

Storage T/H Range

 -20~60℃/60±25%

HB lithium battery uses non-polluting materials and made with exceptional technology; UL safety certification has been passed by it, but like other types of cells, as a lithium battery, it has risks when it’s mechanically damaged. The following precautions must be taken into consideration when handling and using HB lithium-ion batteries:
1) It is forbidden to put the battery in water and needs to set in a warm and humid environment during storage.
2) It is not permitted to use in the hot sunlight of moxibustion. Otherwise, it may lead to battery overheating, fire, or function failure.
3) It is illegal to disassemble pen, chop or puncture the battery pack with metal.
4) It is prohibited to expose the battery or battery pack to heat or fire, to set the battery into the flame, and to prevent storing it in direct sunshine.
5) It is prohibited to short-circuit batteries or batteries, nor place multiple cells in boxes or drawers will to avoid shorting each other or from other metal items.
6) It is illegal to matter an assault or battery pack into mechanical shock.
7) in case of leakage, do not contact the leaking liquid directly into the skin or eyes; if contact occurs, apply a large amount of water to flush the contact area.
8) don’t use non-special charging; the manufacturer’s instructions should do that.
9) Note the”plus positive ear” and also”-negative ear” signals of the battery pack to ensure appropriate use.
10) Keep the battery pack dry and clean. Use a dry cloth to wash it if the battery pack gets dirty.
12) don’t charge the battery pack for a long time.
14) Maintain the original specification of this product for future reference.
15) Eliminate waste batteries or batteries by federal environmental protection laws.
