602432ll Arc Battery 300mah 3.7v 300 Times Cycle Life 0.2c Standard Discharge Current

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 602432LL-300mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
NominalVoltage:3.7V NominalCapacity:300mAh
Warranty:1Year CycleLife:≥300Times
StandardDischargeCurrent:0.2C 11
StandardChargeCurrent:0.2C
HighLight:flexiblelithiumbattery,superthinbattery

Product Description

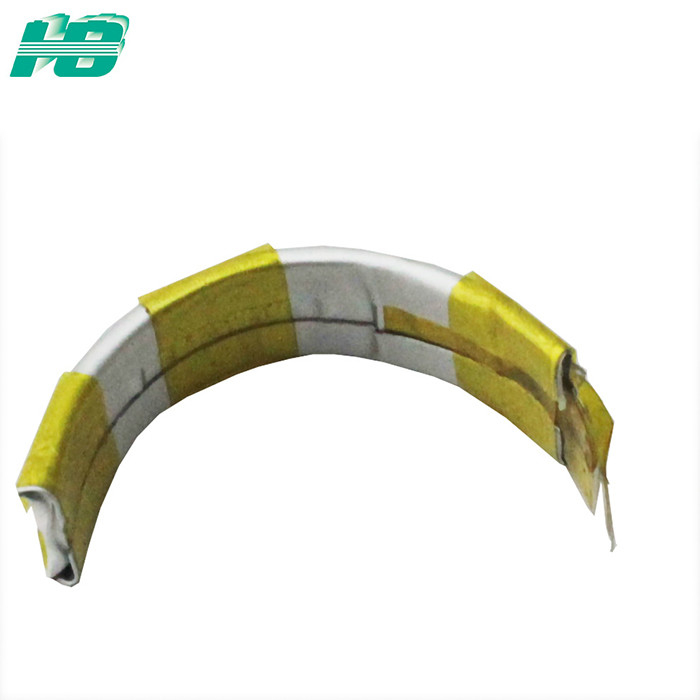

602432LL Arc Battery 300mAh polymer lithium battery 3.7V custom battery



Mainly used in steering wheel,i-watches, sports bracelets, smartwatches, Military clip, etc.



1.Technical Parameters



Item Rating Note



Capacity



Typical  300mAh

Discharge:60.0mA

60.0mA

Min  300mAh

Discharge:60.0mA ,

60.0mA

Energy  1.11Wh

Nominal Voltage

3.70V

AC Impedance Resistance

≤200mΩ

Discharge Cut-off Voltage

3.0V

Charge Voltage

4.20V

Max. Charge Voltage

4.25V

Charge Time

Approx 6.5h 0.2C

Standard charge current

60.0mA 0.2C

Max. Charge Current

300mA 1.0C

Max. discharge current

≤45℃ 1.0C
Shipments voltage  ≥4.05V
Weight Approx 6.5g

Operating

Temperature

Charge  0~+60℃
Discharge  -10~+60℃

Storage

Temperature

less than 1 month

-10~+60℃

Recommended storage temperature: 20℃, at the transportation



less than 6 months



-10~+45℃

HB

2.Electrical Performance



-Temperature Dependence of Capacity (Discharge)



Cells shall meet the discharge capacity requirements listed in the below table under respective discharge temperatures. Low-temperature discharge current of 0.2 CmA, high-temperature discharge current of 0.5 C mA, (2.75V cut-off) after standard charge at 25±2℃.



Discharge Temperature  -10℃ 25℃ 55℃
Discharge Capacity

50%

100%

95%



-Cycle Life



5min rest period after standard charge, 0.5CmA discharge to a cut-off voltage of 3.0V, 30min rest period, the test shall be terminated when Discharging Capacity ≤80% C5 of Initial Capacity in three consecutive cycles. Standard charge and discharge at 25±2℃.



Cycle time≥300 times
