NominalVoltage: | 14.8V | NominalCapacity: | 4400mAh |
---|---|---|---|
Warranty: | 1Year | CycleLife: | 500Times |
StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
HighLight: | lithiumpolymerbatterypack,highpowerbatterypack |

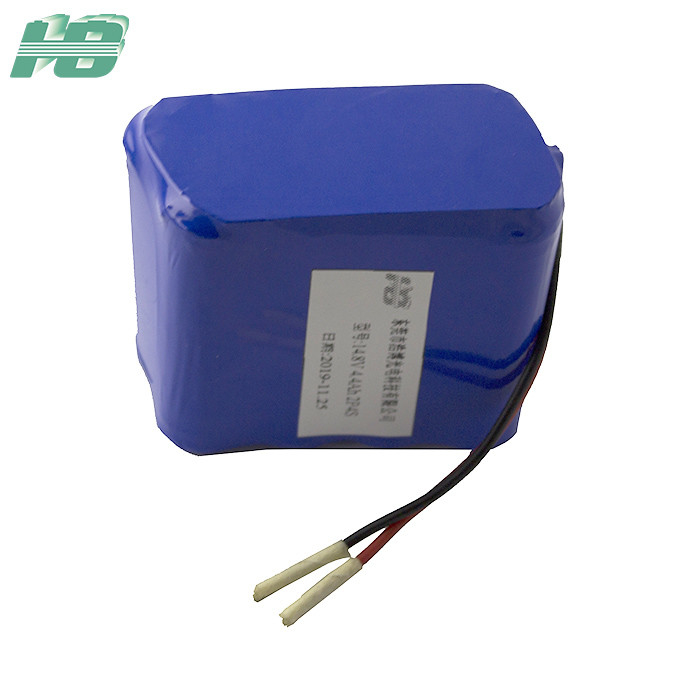

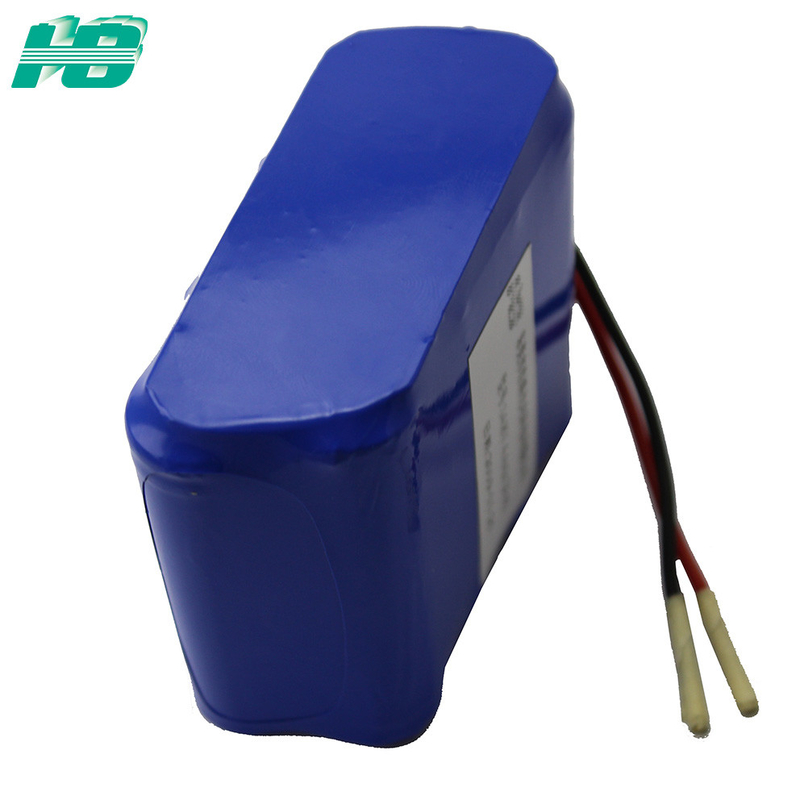

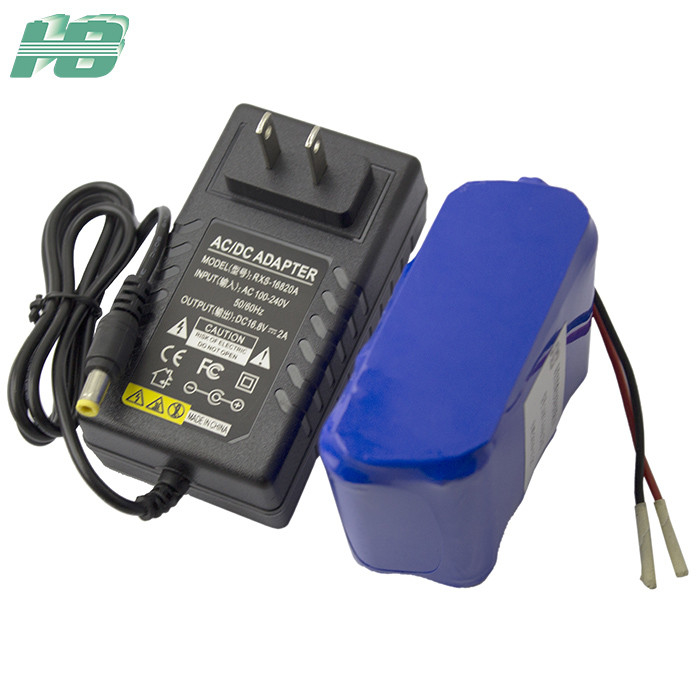

14.8V4400mAh customized 18650 Lithium Battery Pack ternary lithium ion battery
1. Technical Parameters
Item | Rating | Note | ||
Capacity | Typical | 4400mAh |
Discharge:880mA , 880mA |
|
Min | 4400mAh | |||
Energy | 65.12Wh | |||
Nominal Voltage
|
14.80V | |||
AC Impedance Resistance | ≤200mΩ | |||
Discharge Cut-off Voltage | 10.0V | |||
Charge Voltage | 16.8V | |||
Max. Charge Voltage | 17.0V | |||
Charge Time | Approx 6.5h | 0.2C | ||
Standard charge current | 880mA | 0.2C | ||
Max. Charge Current | 880mA | 1.0C | ||
Max. discharge current | ≤45℃ | 1.0C | ||
Shipments voltage | ≥4.05V | |||
Weight | Approx 400.0g | |||
Operating Temperature | Charge | 0~+60℃ | ||
Discharge | -10~+60℃ | |||
Storage Temperature
|
less than 1 month |
-10~+60℃ | Recommended storage temperature: 20℃,at the transportation | |
less than 6 months |
-10~+45℃ |
2. Application Area
Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.
3. Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
◆ Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using
◆ Do not discard or leave the battery near a heat source as fire or heater
◆ Being charged, using the battery charger specifically for that purpose
◆ Don’t reverse the positive and negative terminals
◆ Don’t connect the battery to an electrical outlet directly
◆ Don’t connect the positive and negative terminal directly with metal objects such as wire. Short
terminals of battery is strictly prohibited, it may damage battery
◆ Do not transport and store the battery together with metal objects such as necklaces, hairpins
