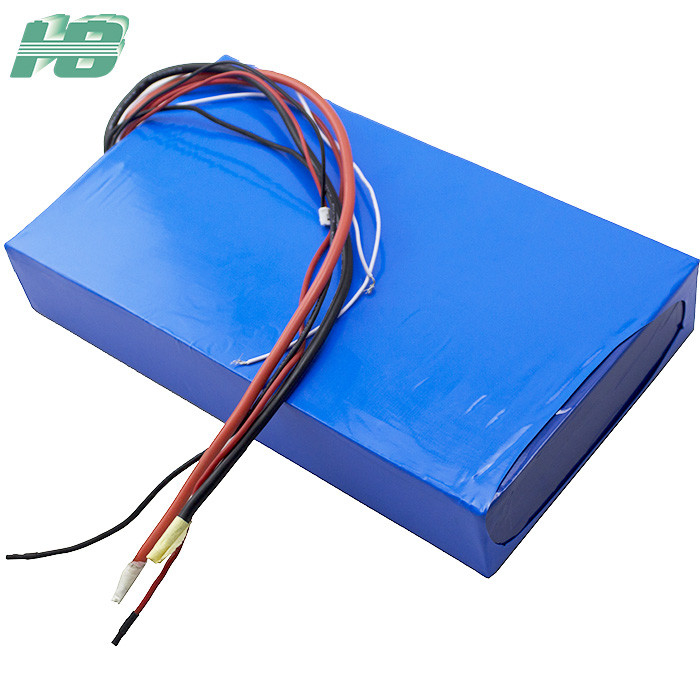

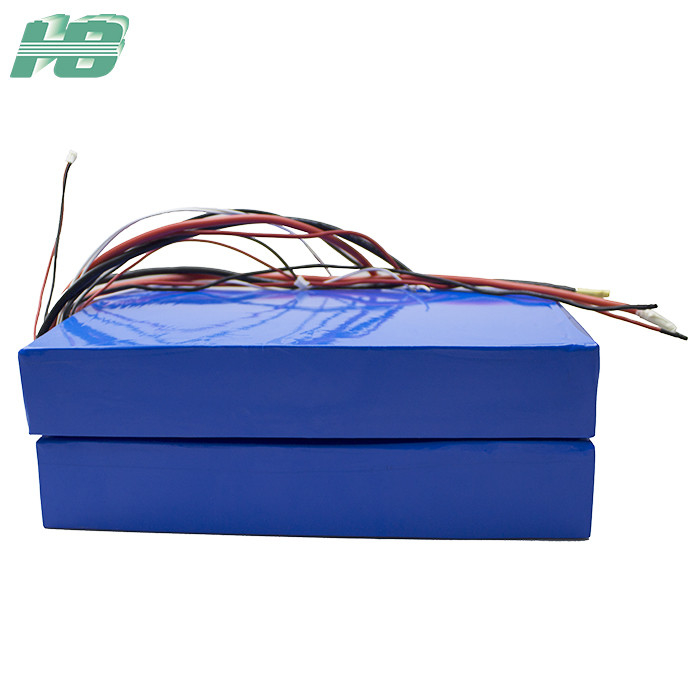

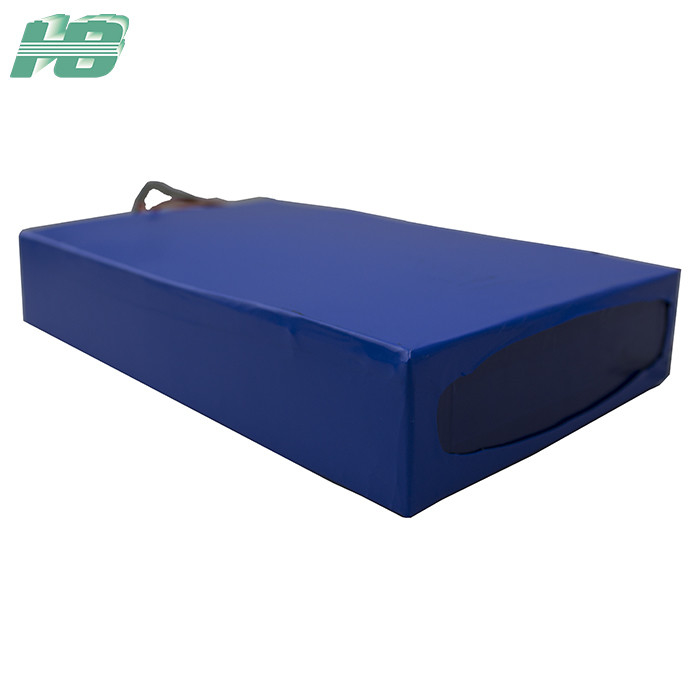

7.5Ah 48 Volt Lithium Ion Battery Pack 18650 Custom Size And Capacity Ecofriendly
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 48V | NominalCapacity: | 7500mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | lithiumpolymerbatterypack,highpowerbatterypack |
48V lithium battery 7.5Ah custom 18650 Lithium Battery Pack lithium ion battery
1.Technical Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 7500mAh |
Discharge:1500mA , 1500mA |
|
| Min | 7500mAh | |||
| Energy | 360Wh | |||
|
Nominal Voltage
|
48V | |||
| AC Impedance Resistance | ≤500mΩ | |||
| Discharge Cut-off Voltage | 20V | |||
| Charge Voltage | 48V | |||
| Max. Charge Voltage | 48V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 1500mA | 0.2C | ||
| Max. Charge Current | 7500mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥4.05V | |||
| Weight | Approx 1200g | |||
| Operating Temperature | Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
|
Storage Temperature
|
less than 1 month |
-10~+60℃ | Recommended storage temperature: 20℃,at the transportation | |
|
less than 6 months |
-10~+45℃ | |||
2. Application Area
Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.
3. Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
◆ Don’t bend or fold sealing edge. Don’t open or deform folding edge. Don’t fillet the end of the
folding edge
◆ Don’t fall, hit, bend battery body
◆ Battery pack designing and packing Prohibition injury batteries
◆ Never disassemble the cells
◆ The battery replacement shall be done only by either cells supplier or device supplier and never be
done by the user
◆ Keep the battery away from babies
◆ Any components contacting these two edges, they must be insulated
