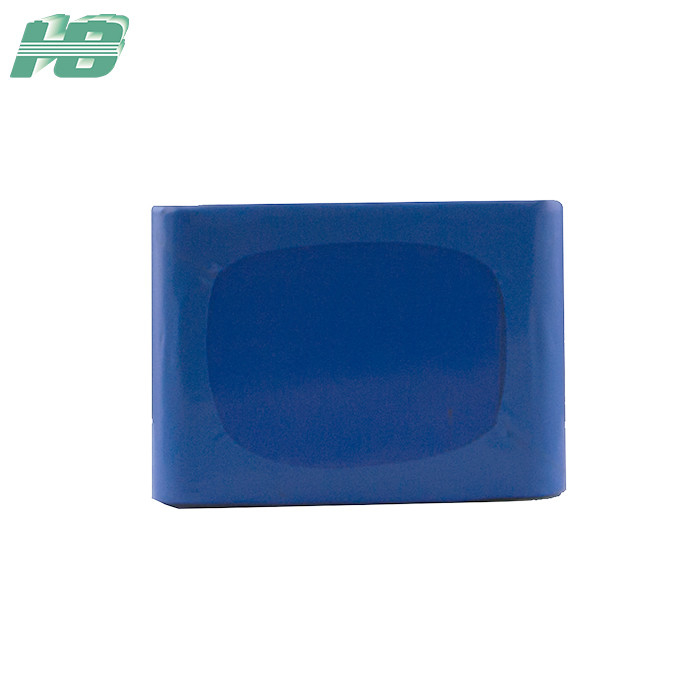

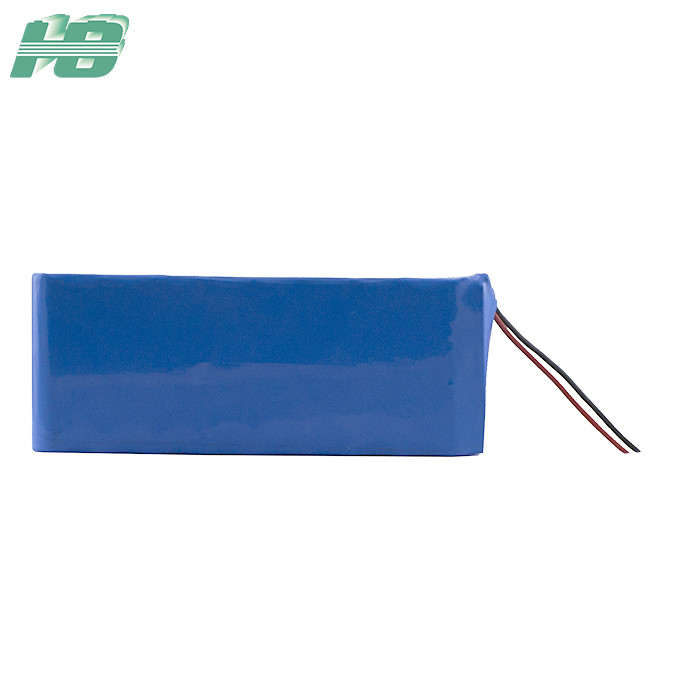

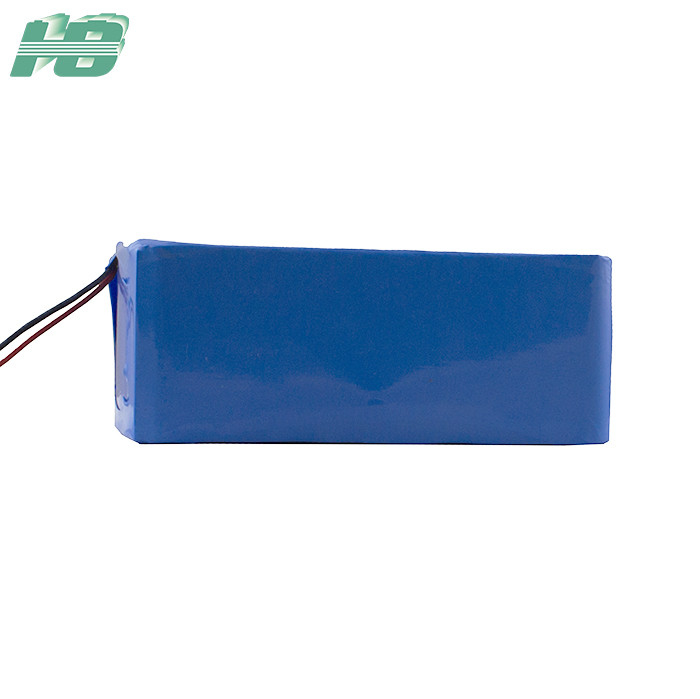

18650 11.1 V Battery Pack , Ternary 30ah Lithium Ion Battery Stable Working Performance
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 11.1V | NominalCapacity: | 30000mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | largecapacitybatterypack,highpowerbatterypack |
18650 lithium battery 11.1V30Ah ternary lithium ion rechargeable battery
1. Technical Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 30000mAh |
Discharge:6000mA , 6000mA |
|
| Min | 30000mAh | |||
| Energy | 333Wh | |||
|
Nominal Voltage
|
11.1V | |||
| AC Impedance Resistance | ≤500mΩ | |||
| Discharge Cut-off Voltage | 7.5V | |||
| Charge Voltage | 12.8V | |||
| Max. Charge Voltage | 12.6V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 6000mA | 0.2C | ||
| Max. Charge Current | 30000mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥12.05V | |||
| Weight | Approx 1800g | |||
| Operating Temperature | Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
|
Storage Temperature
|
less than 1 month |
-10~+60℃ | Recommended storage temperature: 20℃,at the transportation | |
|
less than 6 months |
-10~+45℃ | |||
2. Application Area
Mainly used in solar backpack, solar hood, solar flashlight, solar car, solar sailing boat, solar airplane, BIPV, etc.
3. Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged.
◆ Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using
◆ Do not discard or leave the battery near a heat source as fire or heater
◆ Being charged, using the battery charger specifically for that purpose
◆ Don’t reverse the positive and negative terminals
◆ Don’t connect the battery to an electrical outlet directly
◆ Don’t connect the positive and negative terminal directly with metal objects such as wire. Short
terminals of battery is strictly prohibited, it may damage battery
◆ Do not transport and store the battery together with metal objects such as necklaces, hairpins
