120938 15mah Solid Energy Battery 3.7v 1.2mm Thickness 0.2c Standard Discharge Current
Basic Information
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
Detail Information
| NominalVoltage: | 3.7V | NominalCapacity: | 15mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | thinlithiumpolymerbattery,thinlithiumionbattery |
Product Description

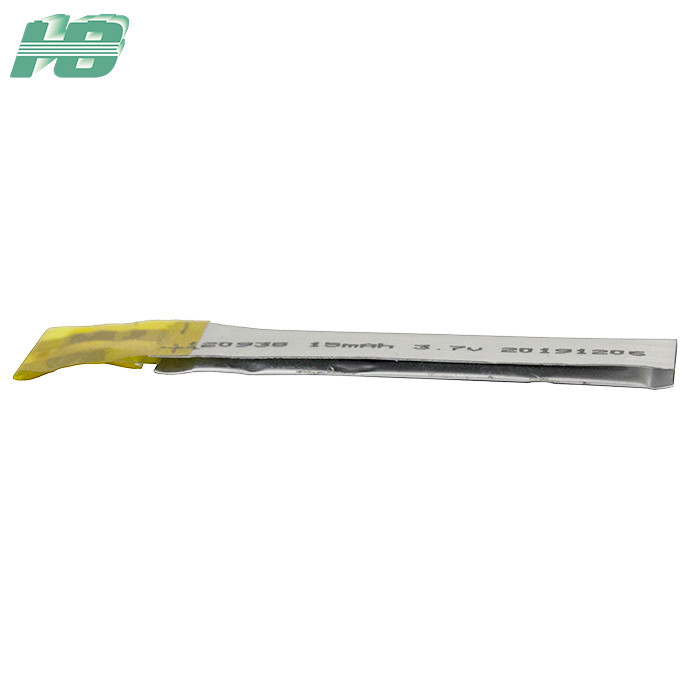

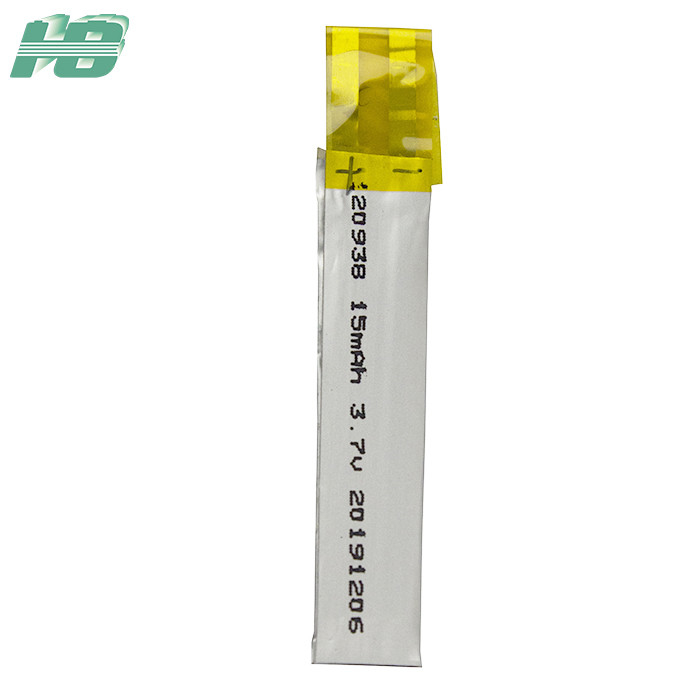

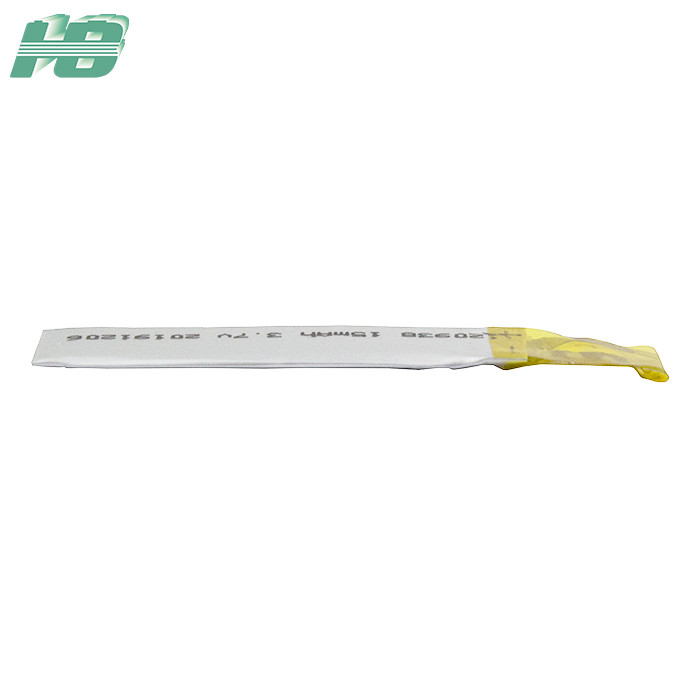

120938 ultra thin battery 15mAh thick 1.2mm solid state battery 3.7V
1.Technical Parameters
| Item | Rating | Note | ||
|
Capacity |
Typical | 15mAh |
Discharge:3.0mA , |
|
| Min | 14mAh |
Discharge:3.0mA , |
||
| Energy | 55.5mWh | |||
|
Nominal Voltage |
3.70V | |||
|
AC Impedance Resistance |
≤2000mΩ | |||
|
Discharge Cut-off Voltage |
3.0V | |||
|
Charge Voltage |
4.20V | |||
| Max. Charge Voltage | 4.25V | |||
|
Charge Time |
Approx 6.5h | 0.2C | ||
|
Standard charge current |
3.0mA | 0.2C | ||
|
Max. Charge Current |
15mA | 1.0C | ||
|
Max. discharge current |
≤45℃ | 1.0C | ||
|
Shipments voltage |
≥4.05V | |||
|
Weight |
Approx 4.5g | |||
|
Operating Temperature |
Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
|
Storage Temperature |
less than 1 month | -10~+60℃ |
Recommended storage temperature: 20℃,at the transportation
|
|
| less than 6 months | -10~+45℃ | |||
