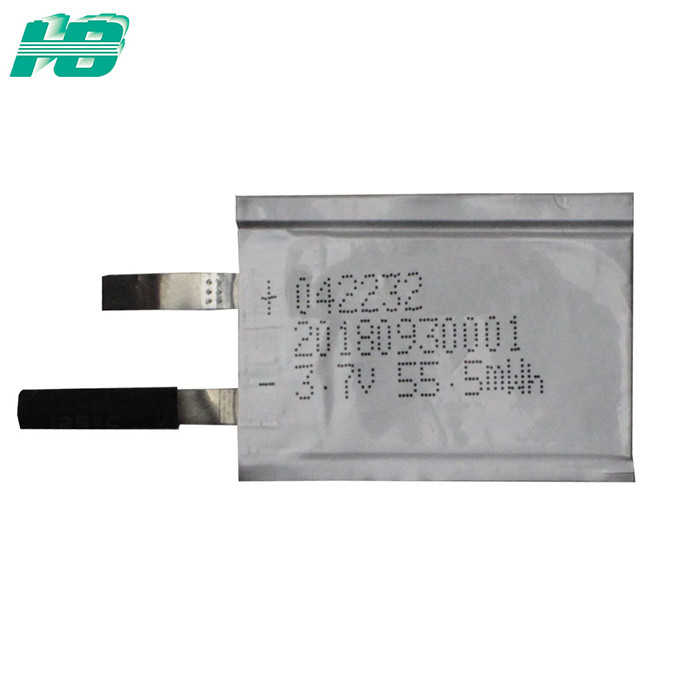

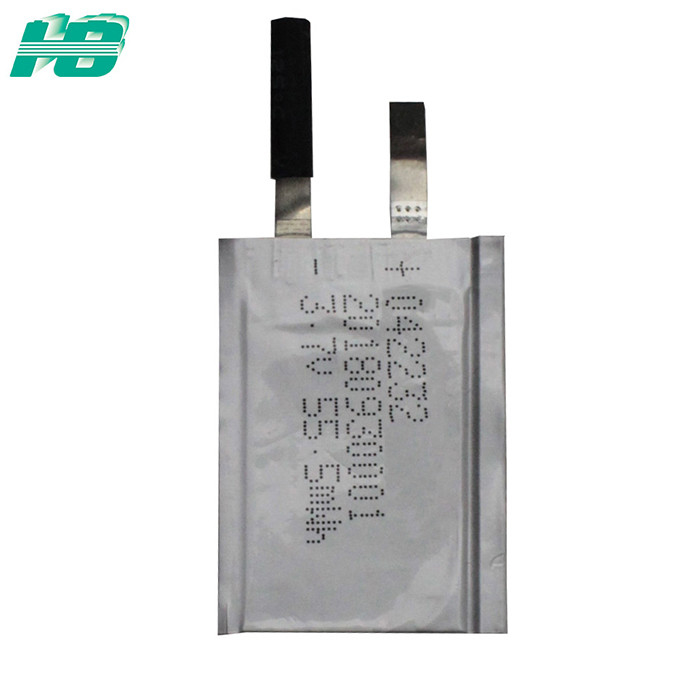

042232 Ultra Thin Lithium Battery 500 Times Cycle Life 1 Year Warranty
Basic Information
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | HB042232 15mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
Detail Information
| NominalVoltage: | 3.7V | NominalCapacity: | 15mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | thinlithiumpolymerbattery,thinlithiumionbattery |
Product Description
Ultra-thin lithium battery 042232 polymer lithium battery 15mAh custom 3.7V
1.Technical Parameters
| Part No | HB101010 |
| Voltage Range | 3.0 to 4.2V |
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 15mAh @15 mA to 3.0 V @ 23° C |
| Max. Discharge | 3mA continuous |
| Pulse Capability |
Up to10 mA Varies according to pulse characteristics, temperature, cell history and the application. Consult ABLE. |
| Typical Weight | 1 grams |
| Operating Temp | -30° C to 75° C |
| Storage Temp | -40° C to 75° C |
| Exterior/Housing | Laminated Aluminum Foil |
| Terminals/Connec tor | Nickel-Aluminum Tabs (Ni-Ni optional) |
| Safety | AL-MSDS/RD-004 |
| Transportation | Excepted from Regulations – see note 1 |
2.Outline Dimensions and Appearance
This thickness will be swelling when high temperature storage or operation in high temperature.
- Appearance
There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect Commercial value of battery.
