28mah Custom Lithium Polymer Battery , Lithium Polymer Battery Up To 10ma Pulse Capability

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: HB102323 28mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information

Product Description

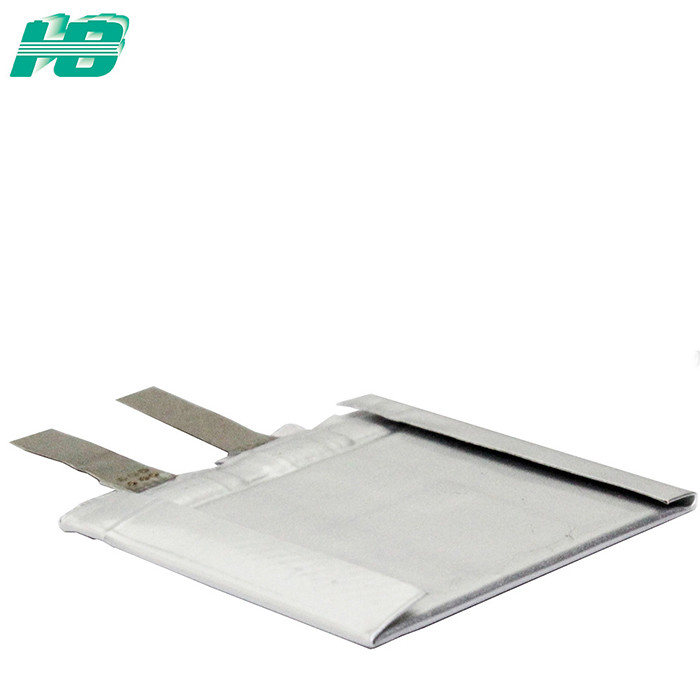

Ultra-thin lithium battery 102323 polymer lithium battery 28mAh custom 3.7V


1. Technical Parameters


Part No HB102323
Voltage Range 3.0 to 4.2V
Nominal Voltage 3.7 V
Nominal Capacity 28mAh @20mA to 3.0 V @ 23° C
Max. Discharge 7mA continuous
Pulse Capability

Up to10mA

Varies according to pulse characteristics, temperature, cell history and the application. Consult


Typical Weight 1 grams
Operating Temp -30° C to 75° C
Storage Temp -40° C to 75° C
Exterior/Housing Laminated Aluminum Foil
Terminals/Connec tor Nickel-Aluminum Tabs (Ni-Ni optional)
Safety AL-MSDS/RD-004
Transportation Excepted from Regulations – see note 1


2. Outline Dimensions and Appearance


This thickness will be swelling when high temperature storage or operation in high temperature.

  • Appearance

There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect Commercial value of battery.
