110 Kwh Mobile Energy Storage Systems , 380v Solar Power Storage Systems

Basic Information
Place of Origin:CHINA
Brand Name:HB
Certification:ROHS
Model Number:110kWh
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information
NominalVoltage:380VNominalCapacity:110KWh
Warranty:3YearCycleLife:3000Times
CRate(standard):0.33C11
CRate(Max):0.55C
HighLight:electricalenergystoragedevices,solarenergystoragebatteries

Product Description

110 kWh Mobile Energy Storage Systems 380V electricity storage device





Itemparameter
Nominal Battery Energy110kWh
C rate(standard)0.33C
C rate(Max)0.55C
AC output voltage380V
AC connection3P4W
Nominal AC output power50kW
AC Max output Power55kW
Dimension10-foot container
Operating temperatureCharge 0°C~45 °C/ Discharging-30°C- ~ 55°C ,Charging below 0℃ requires preheating
CommunicationRS485,CAN,LAN
Product Warranty≥3000@25℃,0.5C,80%DOD | 3 Years



The energy storage system is used in conjunction with a 110kWh battery system + 50kWPCS. The battery system has complete battery temperature, voltage, and current protection functions. The energy storage system automatically detects the battery system operation status, calculates the system charge / discharge voltage / current limit, and transmits data to the supporting PCS and EMS systems through the communication interface. The main configuration list of the system is as follows:



1) Battery system: 1 set, rated 110kWh

2) BMS: 1 set
3) PCS: 1 set, rated 50kW
4) Isolation transformer: 1
5) Container system: 10 feet, 1 set
6) Energy storage combiner: 1 set
7) Energy storage control cabinet: 1 set
8) Power distribution / weak current cable: 1 set
9) EMS: 1 set
10) heating system: 1 set



Main part-battery system



ItemParameter
Total energy110kWh
Nominal Voltage460.0VDC
Voltage Range360.0VDC -525.0VDC
C rate(standard)0.33C
C rate(Max)0.50C
D rate(standard)0.33C
D rate(Max)0.50C

Work temperature

Charge: 0℃~45℃ Discharge: -30℃~55℃

Life (80% Retention)

≥3000@25℃,0.5C,80%DOD | 3 Years
CommunicationCAN,RS485,LAN
BalancePassive



Main part-PCS

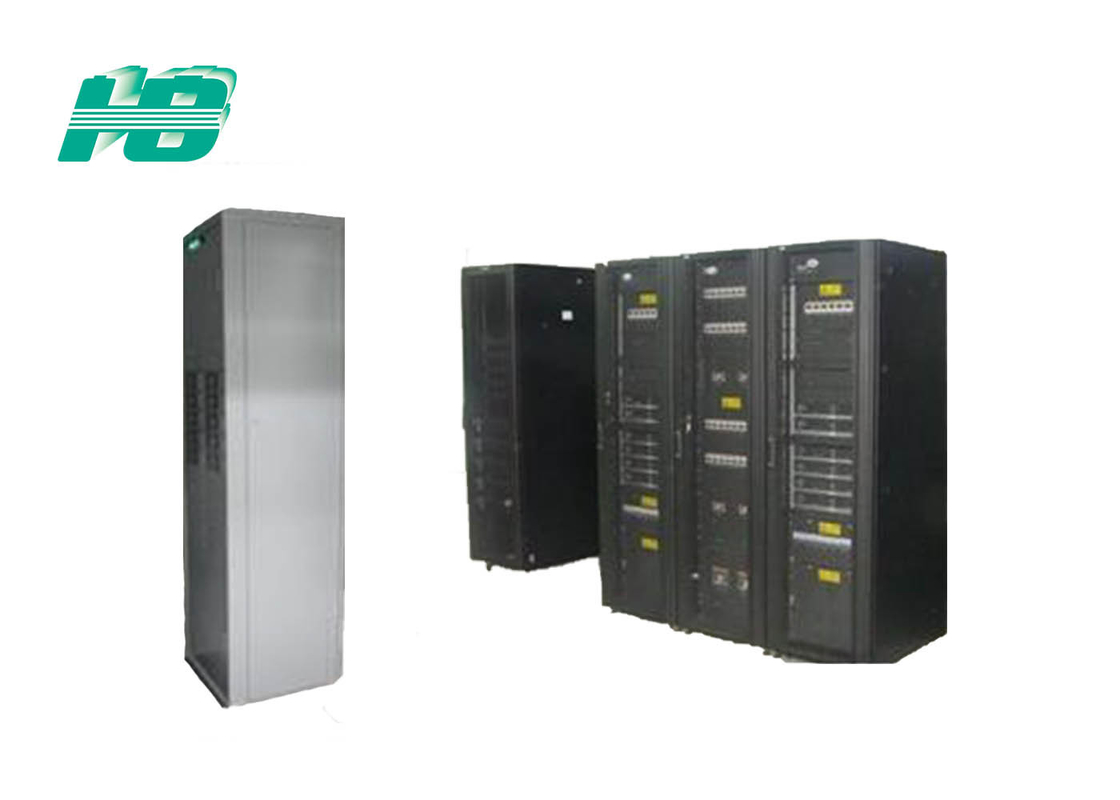

110 Kwh Mobile Energy Storage Systems , 380v Solar Power Storage Systems 0

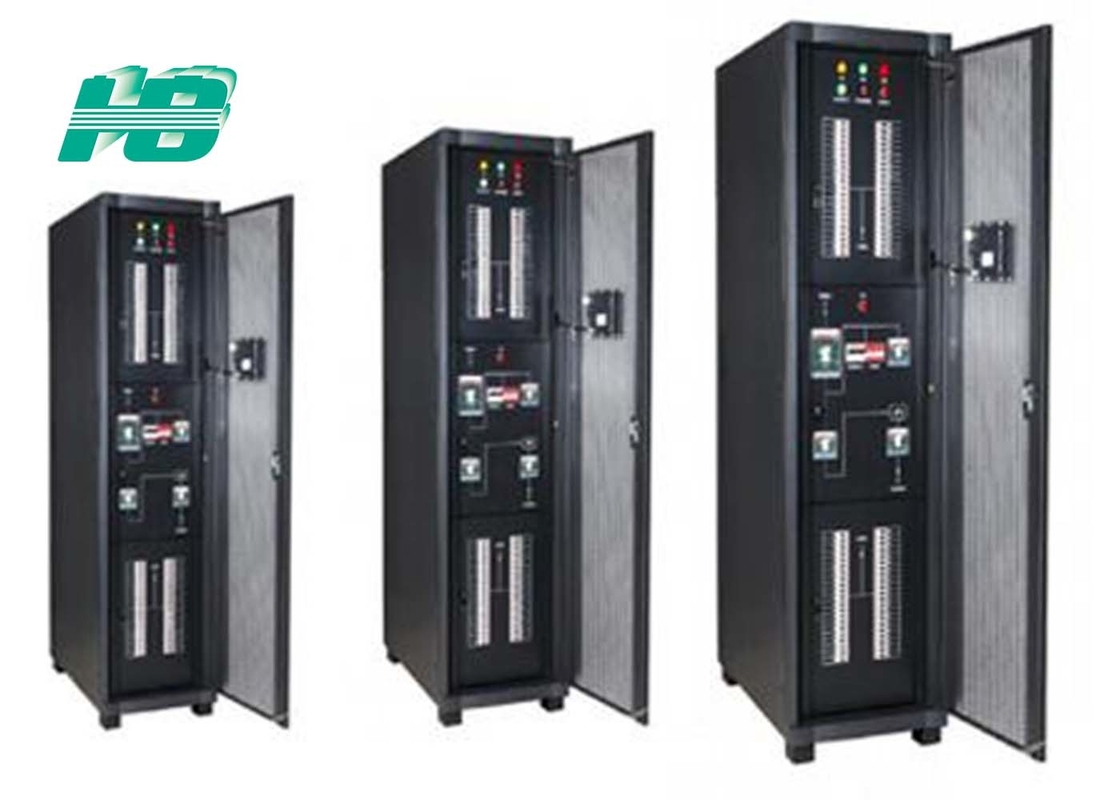

110 Kwh Mobile Energy Storage Systems , 380v Solar Power Storage Systems 1
