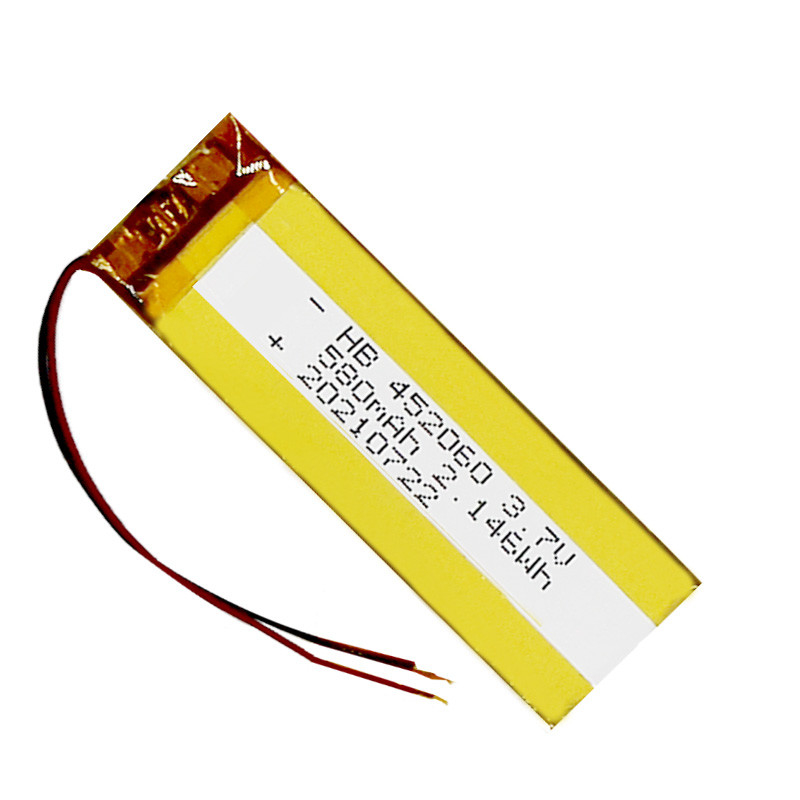

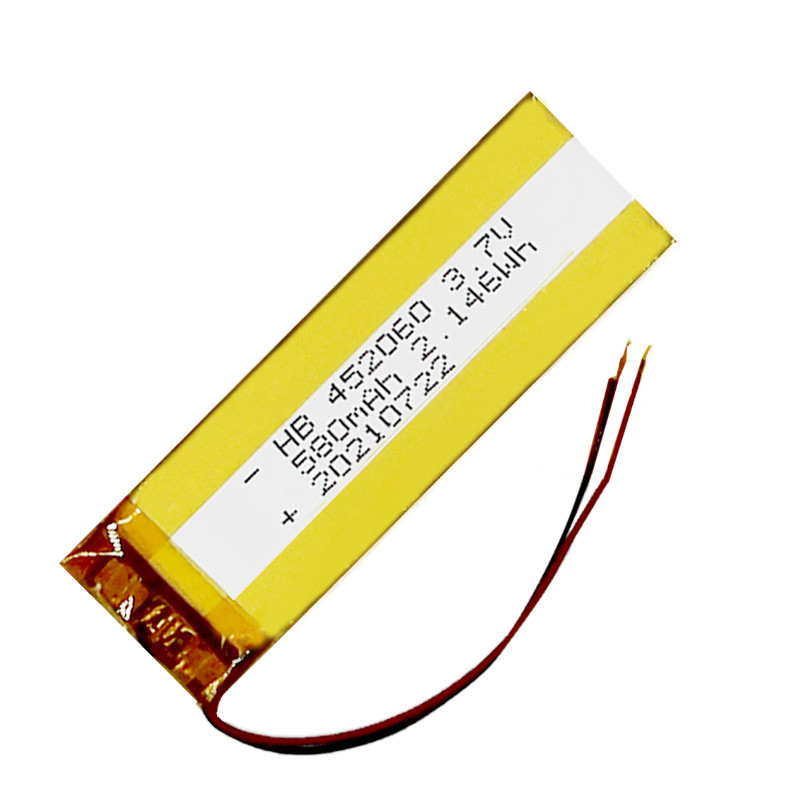

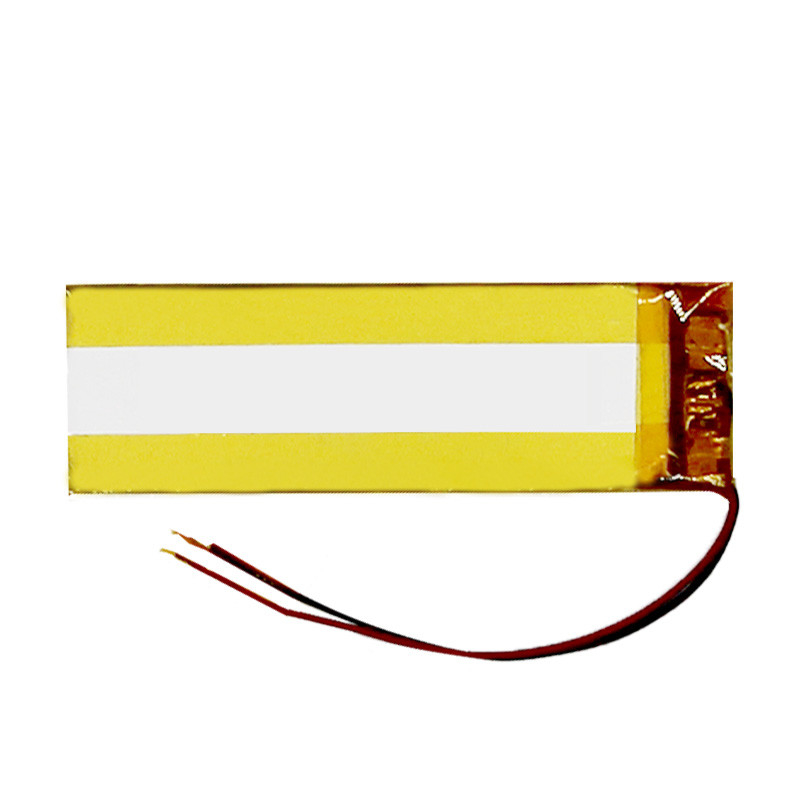

452060 High Temperature Lithium Ion Battery 580mah 3.7v Soft Pack Type

Basic Information
Place of Origin:CHINA
Brand Name:HB
Certification:ROHS
Model Number:452060-580mAh
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information
NominalVoltage:3.7VNominalCapacity:580mAh
Warranty:1YearCycleLife:300Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:largecapacitylithiumionbattery,ternarylithiumionbattery

Product Description

452060High Temperature Lithium Ion Battery 580mAh soft pack battery 3.7V

1.Technical Parameters



LMAX;45MM
WMAX;20 MM
HMAX;60MM
L150±3 MM



Item

Specifications

Test tools

Comments

Initial Capacity

580mAh

Secondary batteries test equipment



Nominal voltage

3.7V



Approx. Weight (g)

50g

Electronic weighbridge



Max Charge voltage

4.2V

Electronic voltage meter

Exactitude ±0.01V

Fast Charge current

1C mA

Secondary batteries

test equipment

580mA

Discharge cut-off voltage

2.75V

Secondary batteries

test equipment



Fast Discharge current

1C mA

Secondary batteries

test equipment

580mA

Charge temperature

10℃ ~ + 45℃



Discharge temperature

-10℃ ~ + 50℃



Recommended Storage

temperature

23±3℃



Storage humidity

< 75%RH

Hygrometer



HB

2.Pack

The sketch, size, color of marking should match GB/T191-2000 requests.

2.1 Model and specification of product;

2.2 Quantity;

2.3Measure up marking;

2.4Make date;

2.5 Other markings, like color..

3,Storage

Long Time Storage

If the Cell is stored for a long time
