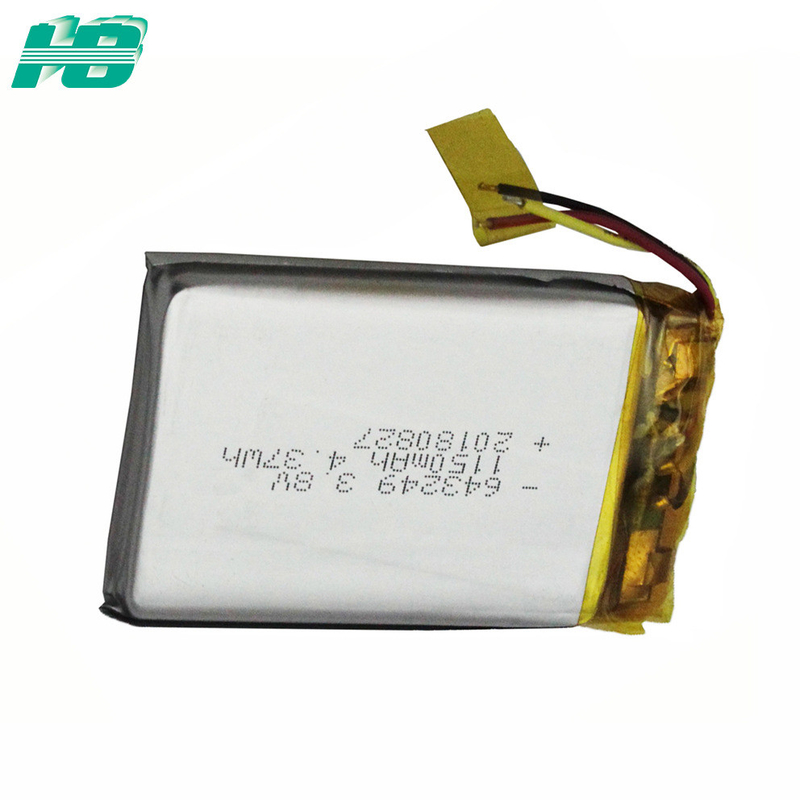

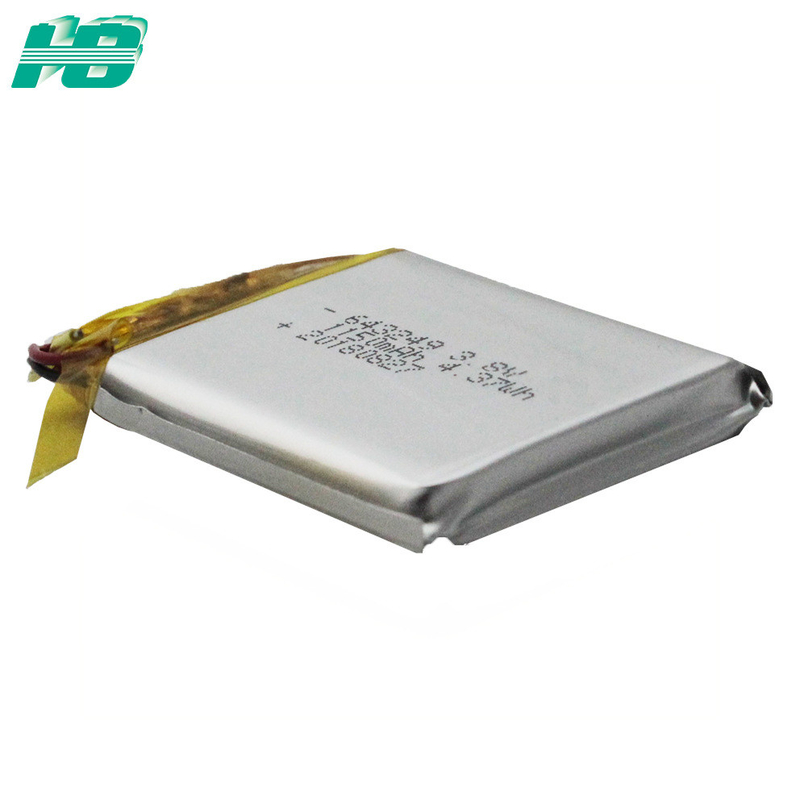

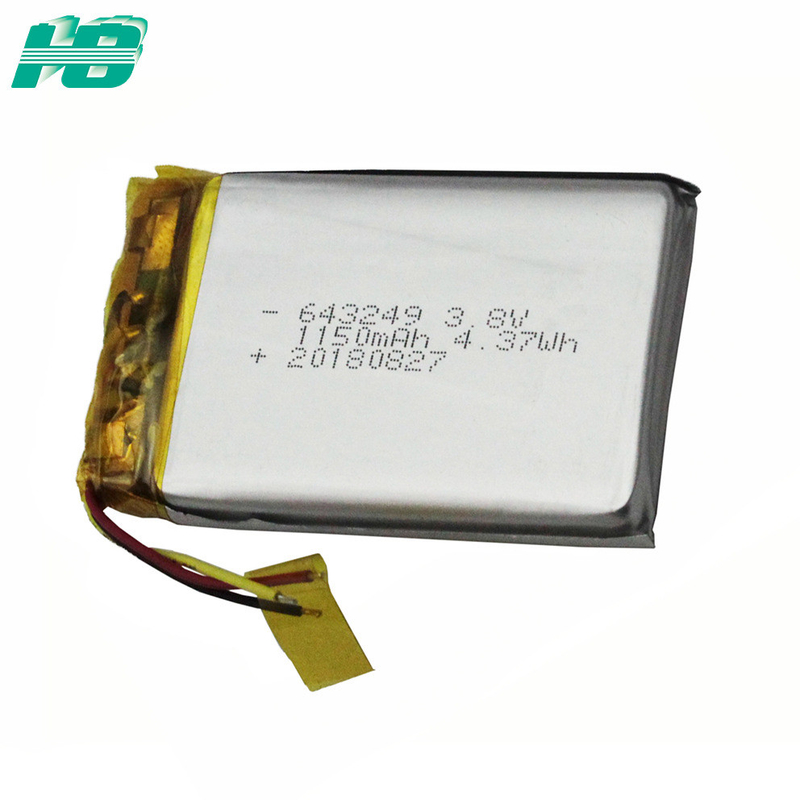

643249 High Temperature Lithium Ion Battery 1150mah 3.8 V 500 Times Cycle Life
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.8V | NominalCapacity: | 1150mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | largecapacitylithiumionbattery,hightemperatureresistantbattery |
643249 polymer lithium battery 1150mAh3.8 V battery custom rechargeable battery
1.Technical Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 1150mAh |
Discharge:230mA , 230mA |
|
| Min | 1150mAh | |||
| Energy | 4.255Wh | |||
|
Nominal Voltage |
3.80V | |||
| AC Impedance Resistance | ≤100mΩ | |||
| Discharge Cut-off Voltage | 3.0V | |||
| Charge Voltage | 4.35V | |||
| Max. Charge Voltage | 4.40V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 230mA | 0.2C | ||
| Max. Charge Current | 1150mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥4.05V | |||
| Weight | Approx 23.0g | |||
| Operating Temperature | Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
|
Storage Temperature
|
less than 1 month |
-10~+60℃ | Recommended storage temperature: 20℃,at the transportation | |
|
less than 6 months |
-10~+45℃ | |||
Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
Keep the battery pack clean and dry.
If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
Do not charge the battery pack for a long time.
The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.
Keep the original specification of the product for future reference.
Dispose of waste batteries or batteries in accordance with national environmental protection laws.
The products meet multiple international certifications, such as UL ,CB ,CE ,UN ,PSE ,KC ,BIS ,CQC ,3C , etc.
