Place of Origin: | CHINA |
---|---|
Brand Name: | HB |
Certification: | ROHS |
Model Number: | 753048 |
Minimum Order Quantity: | Contact sales to get |
Price: | Contact sales to get |
Packaging Details: | Contact sales to get |
Delivery Time: | Contact sales to get |
Payment Terms: | T/T |
Supply Ability: | Contact sales to get |
NominalVoltage: | 3.7V | NominalCapacity: | 1200mAh |
---|---|---|---|
Warranty: | 1Year | CycleLife: | 500Times |
StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
HighLight: | lithiumternarybattery,lithiumpolymerbattery |

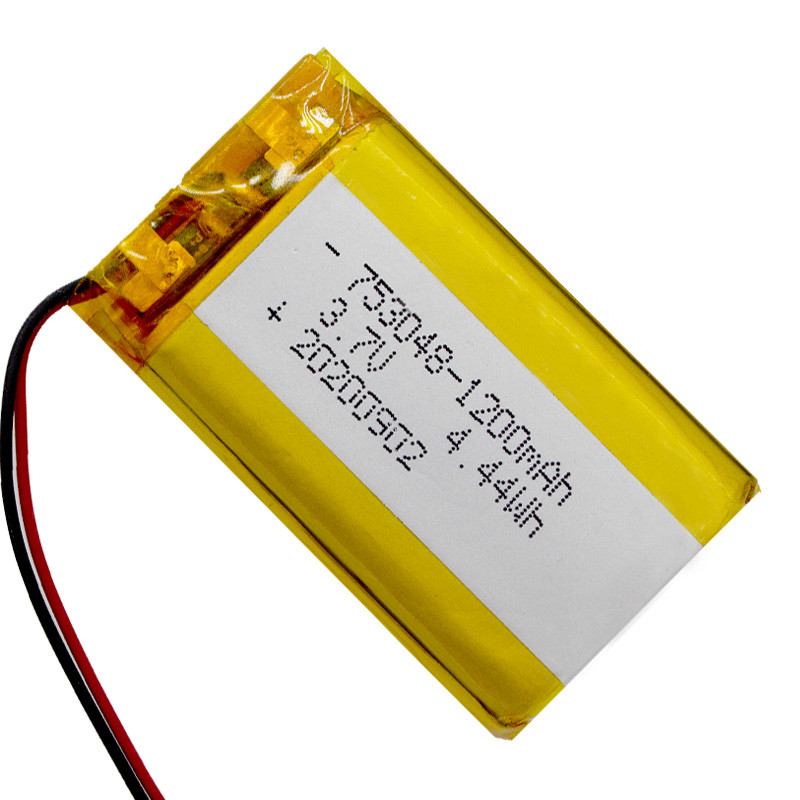

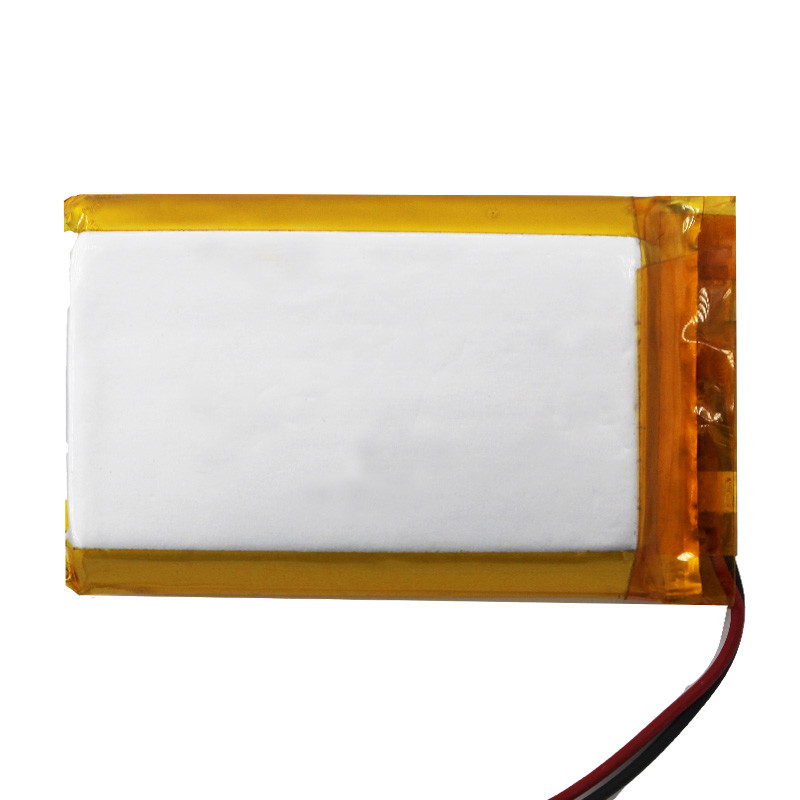

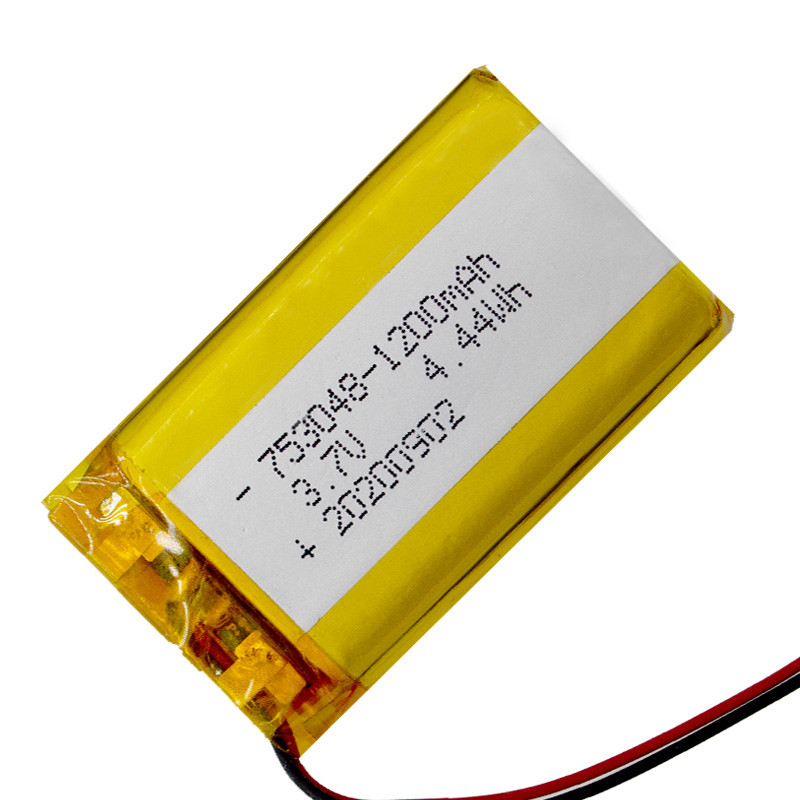

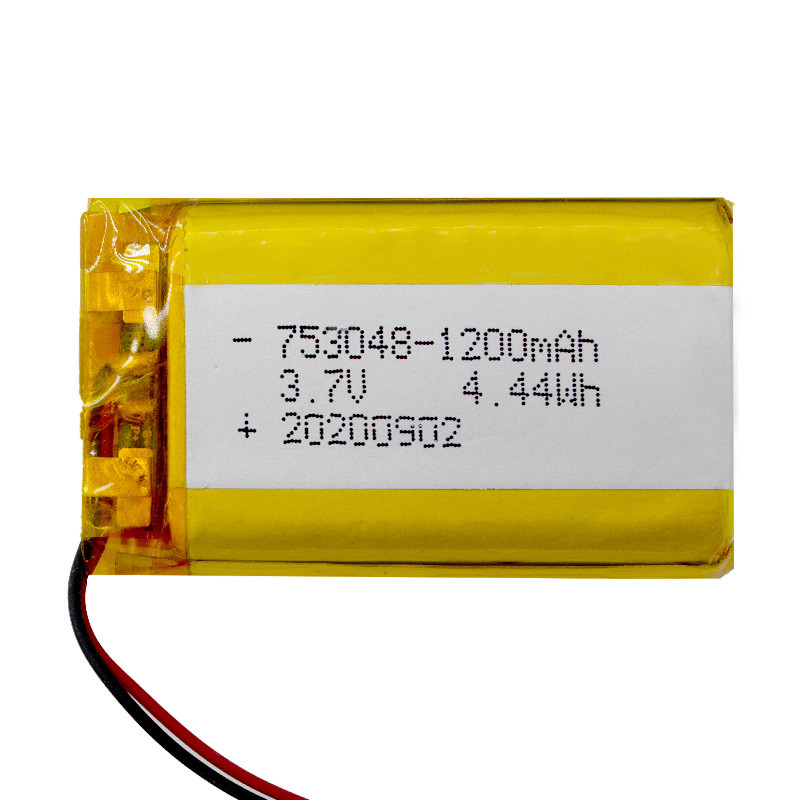

753048 li polymer battery 1200mAh UL 3.7V rechargeable li polymer battery
1. Technical Parameters
Item | Rating | Note | ||
Capacity | Typical | 1200mAh |
Discharge:240mA , 24 0mA |
|
Min | 1200mAh | |||
Energy | 4.44Wh | |||
Nominal Voltage
|
3.70V | |||
Discharge Cut-off Voltage | 3.0V | |||
Charge Voltage | 4.25V | |||
Max. Charge Voltage | 4.30V | |||
Charge Time | Approx 6.5h | 0.2C | ||
Standard charge current | 240mA | 0.2C | ||
Max. Charge Current | 1200mA | 1.0C | ||
Max. discharge current | ≤45℃ | 1.0C | ||
Shipments voltage | ≥4.05V |
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:
It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.
It is prohibited to subject a battery or battery pack to mechanical shock.
In the event of leakage, do not contact the leaking liquid directly to the skin or eyes, if contact occurs, apply a large amount of water to flush the contact area.
Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.
Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.
Keep the battery pack clean and dry.
