303450 Li Polymer Battery , 500mah Ternary Lithium Ion Battery High Safety-16 years lithium battery expert
products
Home » Products » Li Polymer Battery » 303450 Li Polymer Battery , 500mah Ternary Lithium Ion Battery High Safety

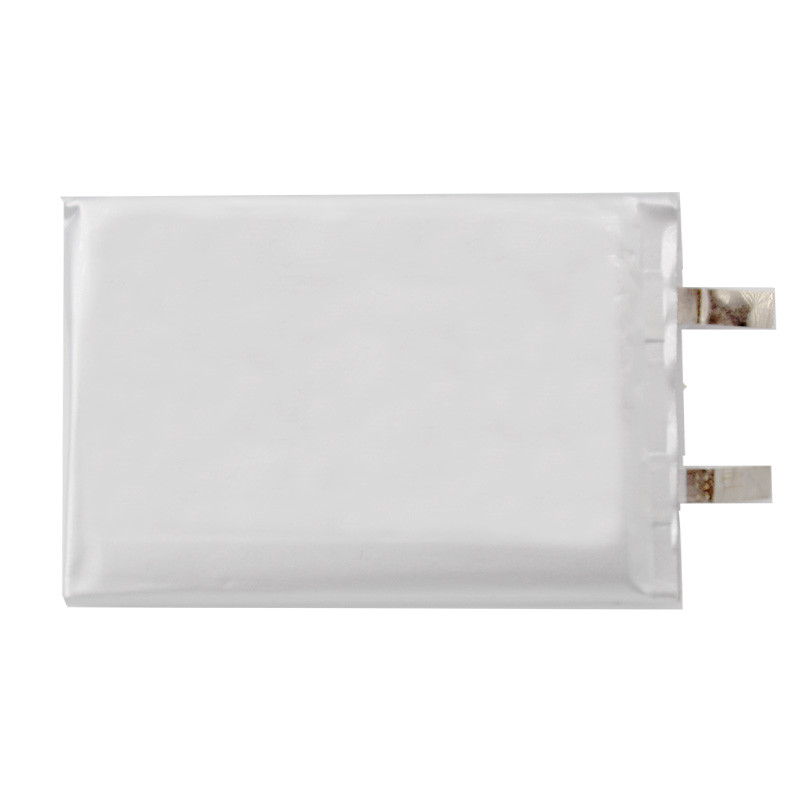

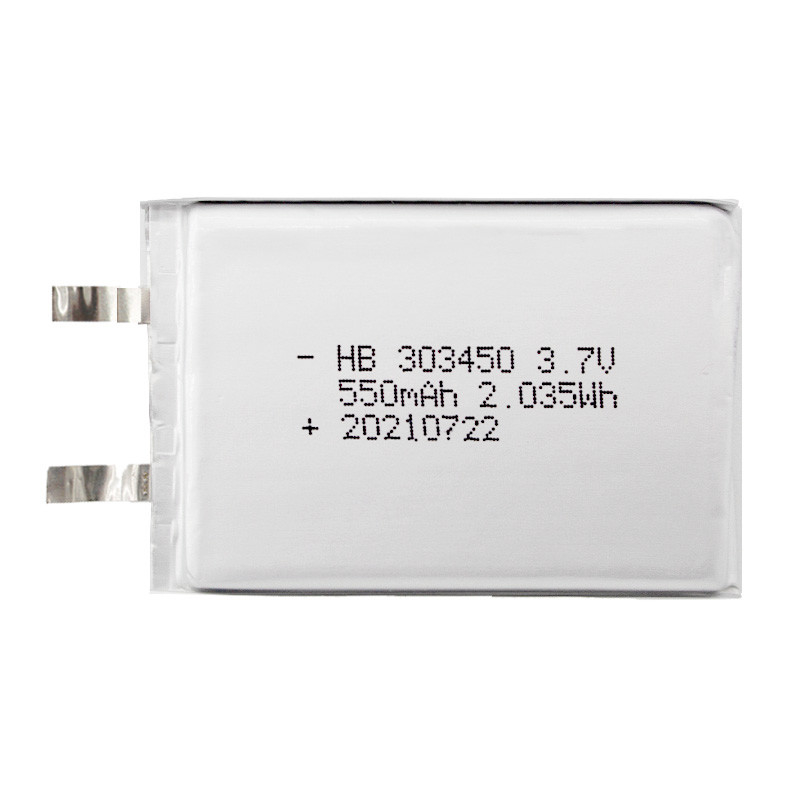

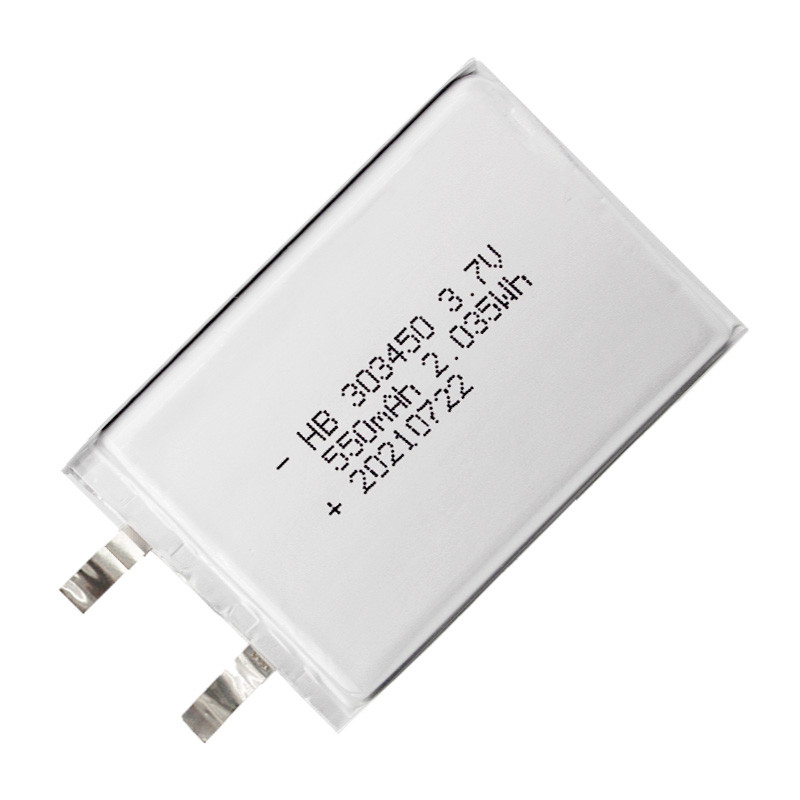

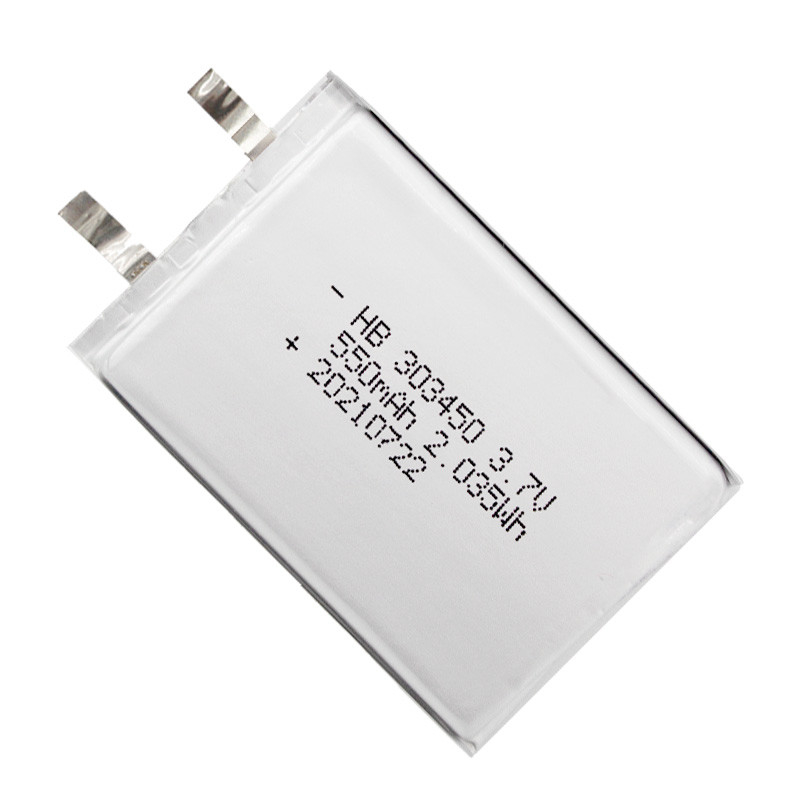

303450 Li Polymer Battery , 500mah Ternary Lithium Ion Battery High Safety

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 303450-500mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7V NominalCapacity:500mAh
Warranty:1Year CycleLife:300Times
StandardDischargeCurrent:0.2C 11
StandardChargeCurrent:0.2C
HighLight:lithiumternarybattery,lithiumpolymerbattery

Product Description

303450 li polymer battery 500mAh ternary lithium battery

size and capacity can be customized according to your requirements !

Mainly used in GPS,MP4,watches,earphone and other digital production, etc.

1.Technical Parameters

Items

Specification description

Appearance

The surface is clear and is free of scratch, mechanical cuts and match well with the host.
Charge voltage 4.2V
Nominal voltage 3.7V
Min Capacity

500mAh(at 0.2C rate discharge after standard charge)

Standard Charge method

 0.2C CC(constant current) charge to 4.2V, then CV(constant voltage 4.2V) charge till charge current decline to £ 0.01C

Max. charge current

 1.0 C

Standard Discharge method

 0.2C

Max. discharge current

 1.0C

Storage Temperature and Humidity Range

-5~35°C

Humidity: 35%~85% RH

Charge the battery every three months. Recommended storage temperature is 25±5°C of SOC 50%~60%.

Cycle Life

≥300 cycles, more than 80% at 0.2C charge and 0.2C discharge

Pack Initial InternalImpedance

 ≤500mΩ (50% SOC, Measure the AC impedancet 1kHz)

Delivery voltage

 3.7~4.05V


2. Safety Performance



Items Test Method and Condition Criteria

Over-Charge Protection



 At 20±5℃ conditions,after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h.

The battery should be no leakage,deformation,smoking and explosion during the test processes.

Short-Circuit Protection

After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery.

Cut circuit of resistance; test the battery’s voltage after charging with 1C constant current for 5 seconds.

The appearance is normal,

Noexplosion, No fire,

No smoking, No leakage.
