130mah 3.7 V 1 Cell Lithium Ion Battery Rechargeable 342323 Environment Friendly

Basic Information
Place of Origin:CHINA
Brand Name:HB 342323 130mAh
Model Number:HB
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information

Product Description

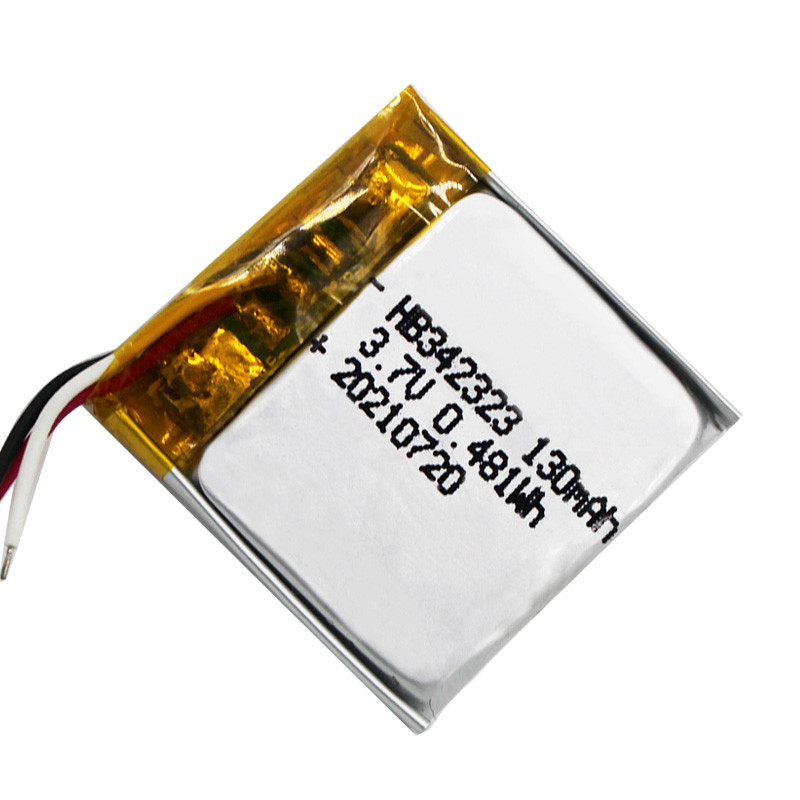

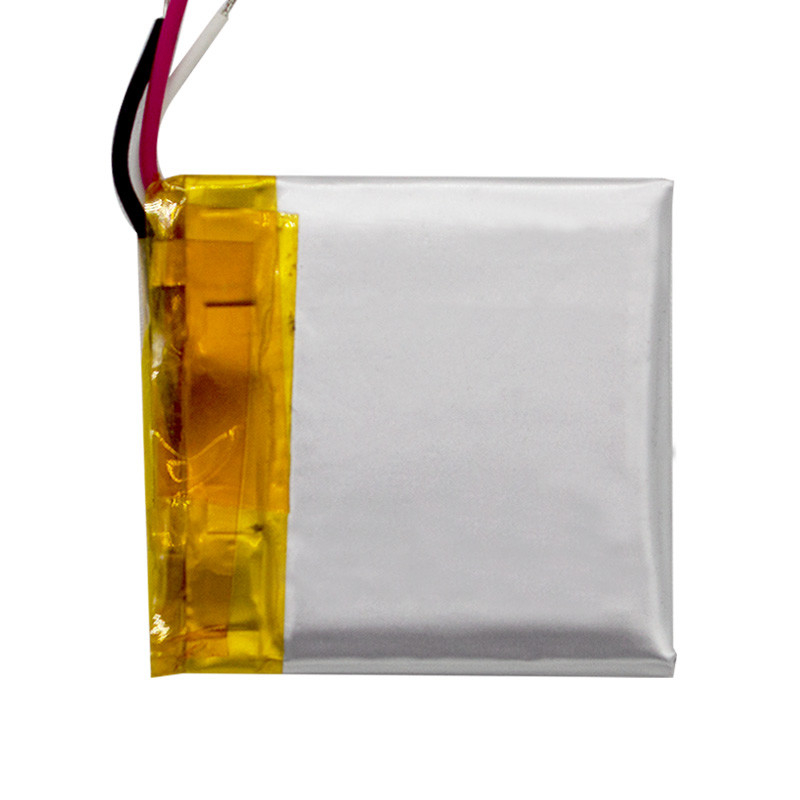

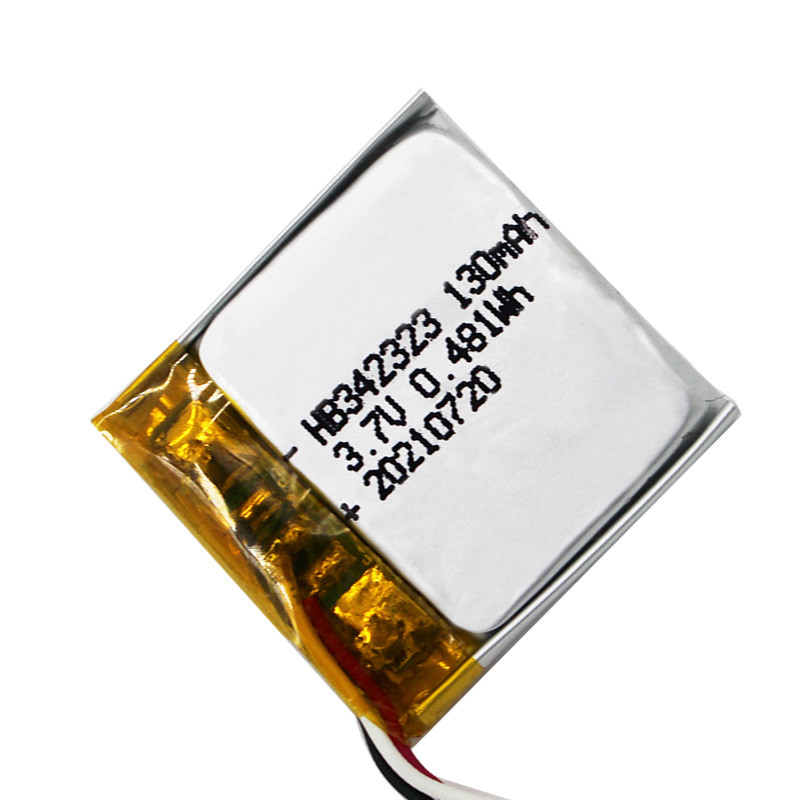

342323 li polymer battery 3.7 v 130mAh 1 cell rechargeable li polymer battery


1.Technical Parameters



Discharge:26mA ,



Nominal Voltage


AC Impedance Resistance≤100mΩ
Discharge Cut-off Voltage3.0V
Charge Voltage4.25V
Max. Charge Voltage4.30V
Charge TimeApprox 6.5h0.2C
Standard charge current26mA0.2C
Max. Charge Current130mA1.0C
Max. discharge current≤45℃1.0C
Operating TemperatureCharge0~+60℃



HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged. Therefore, the following precautions must be taken into consideration when handling and using HB lithium batteries:

It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.

It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.

It is prohibited to disassemble, open, chop or puncture the battery pack with metal.

It is forbidden to expose the battery or battery pack to heat or flame, to put the battery into the fire and to avoid storing it in direct sunlight.

It is forbidden to short-circuit batteries or batteries, and do not place multiple batteries in boxes or drawers at will to avoid shorting each other or by other metal objects.

If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.

Do not charge the battery pack for a long time.

The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.

Keep the original specification of the product for future reference.

Dispose of waste batteries or batteries in accordance with national environmental protection laws.
