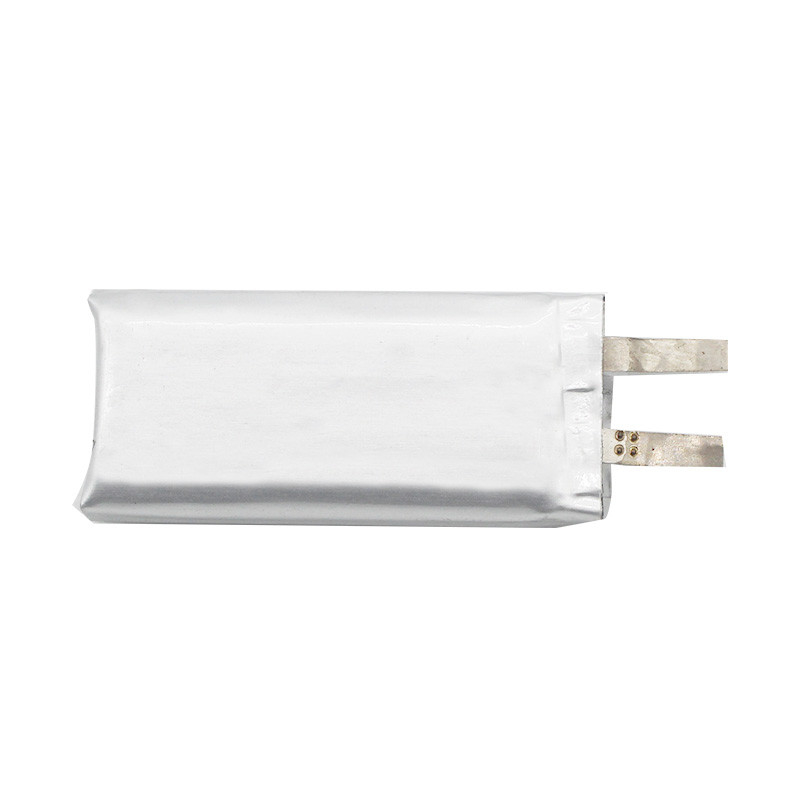

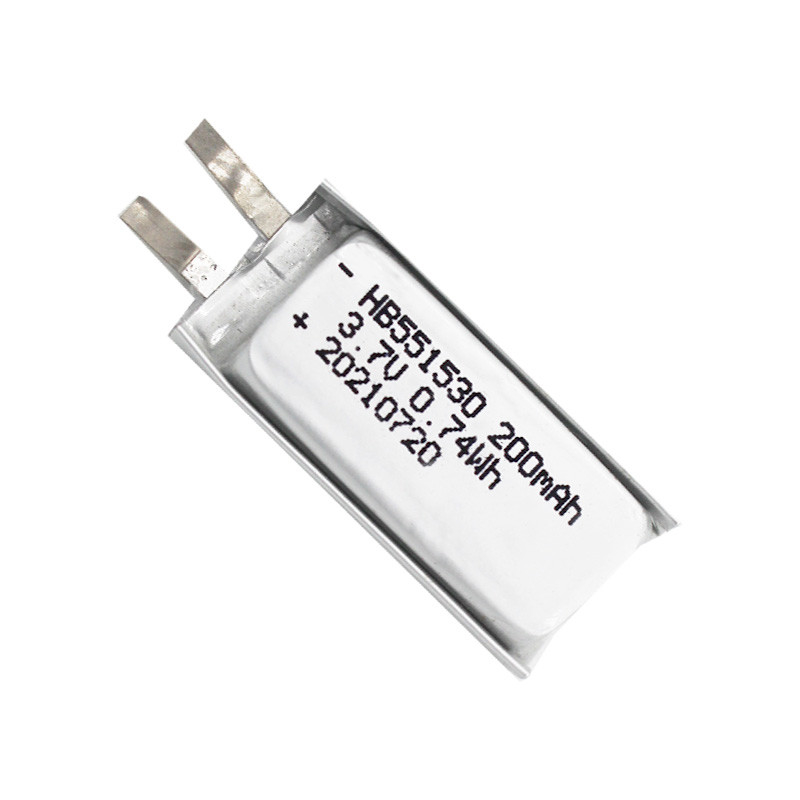

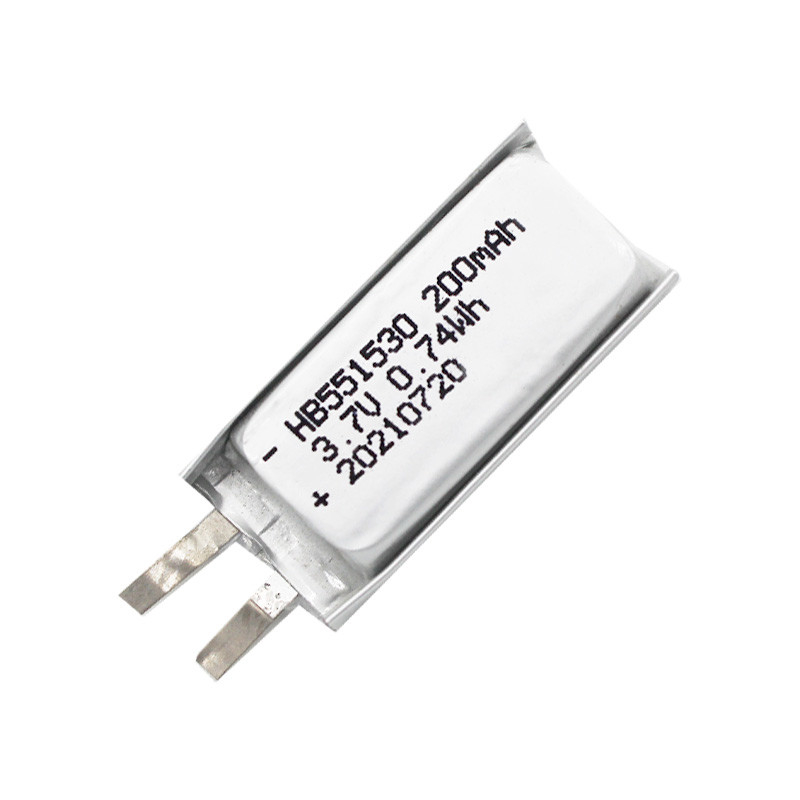

551530 Smart water cup battery Li Polymer Battery , Customized 200mAh Ternary Lithium Battery

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 551530-200mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
NominalVoltage:3.7VStandardDischargeCurrent:0.2C
Warranty:1YearCycleLife:300Times
NominalCapacity:200mAh11
StandardChargeCurrent:0.2C
HighLight:lithiumternarybattery,rechargeablelithiumbatteries

Product Description

551530 Smart water cup battery polymer lithium battery 200mAh ternary rechargeable battery 3.7V

size and capacity can be customized according to your requirements !
Mainly used in GPS,MP4,watches,earphone and other digital production, etc.

1.Technical Parameters

Items Rated Performance Remarks
Nominal Capacity 200mAh

Discharge at 0.2C after standard charge fully

Nominal Voltage 3.70V

End-of-Voltage at end of Discharge

2.75V

End-of-Charging Voltage

4.25V
AC Impedance  ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.25V 0.05Ccutoff Charge time: Approx 2.5h.
Standard Discharge 0.2C CC→2.75V cutoff
Fast Charge 0.1A →0.05C cutoff Charge time: Approx 1h.
Fast Discharge 0.1A→7.5V cutoff
Maximum Continuous Charge Current 0.09A
Maximum Continuous Discharge Current 0.2A

Operation Temperature Range

Charge: 0~60℃ Humidity /湿度60±25%
Discharge: -20~60℃

Storage T/H Range

-20~50℃/60±25%


Test method and request

Items  Test Method  Request

Appearance

By sight

No obvious flaw,blot,scratch distorted, tympanous.

Open-Circuit Voltage

The open-circuit voltage shall be measured within 24 hours after standard charge.

≥3.7V

Impedance

AC
Impedance Resistance

≤100 mΩ

Nominal Capacity

0.2CB5BA discharge

Discharge Capacity
≥1800mAh

Cycle Life
(0.2C)

Test condition: temperature:
First step:0.5C CC/CV to 4.2V
Second step: Static 10 min
Third step:0.2C CC to 2.5V.
Fourth step: Static 10 min
Fifth step: Repeat first step to fourth step 300cycles, record 300cycle then compare with first cycle value.
Sixth step: end

Higher than 80% of the Initial Capacities of the Cell



Lithium Polymer Battery Advantages
1.Safe And Reliable
2.Quality Assurance
3.Price Concessions
4.Long cycle life
5.High energy density
6.No memory effect
7.Environmental protection (not Contain Cadmium, Lead, Mercury)
8.One year warranty
