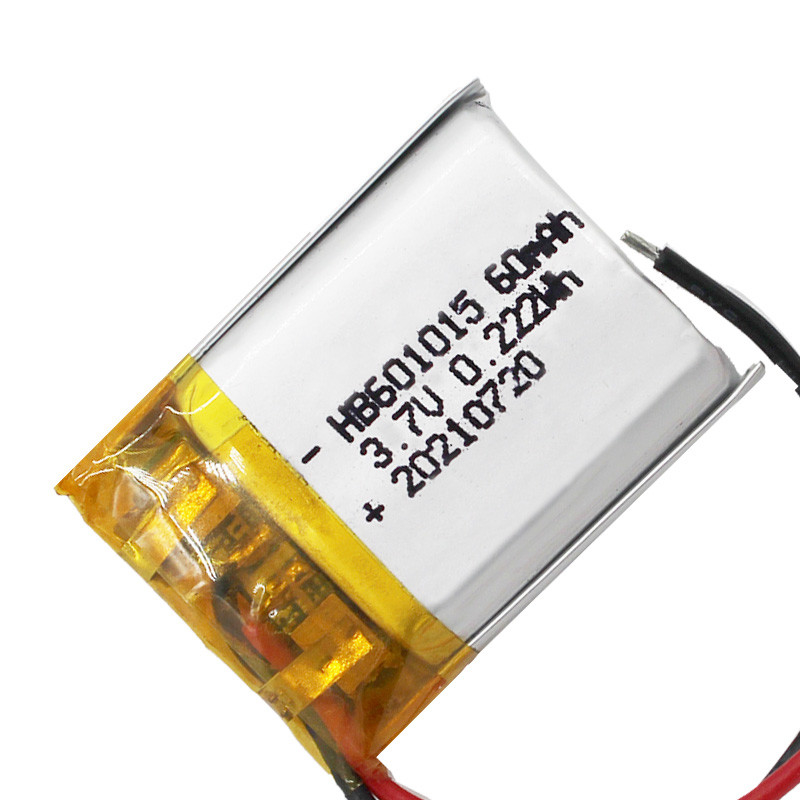

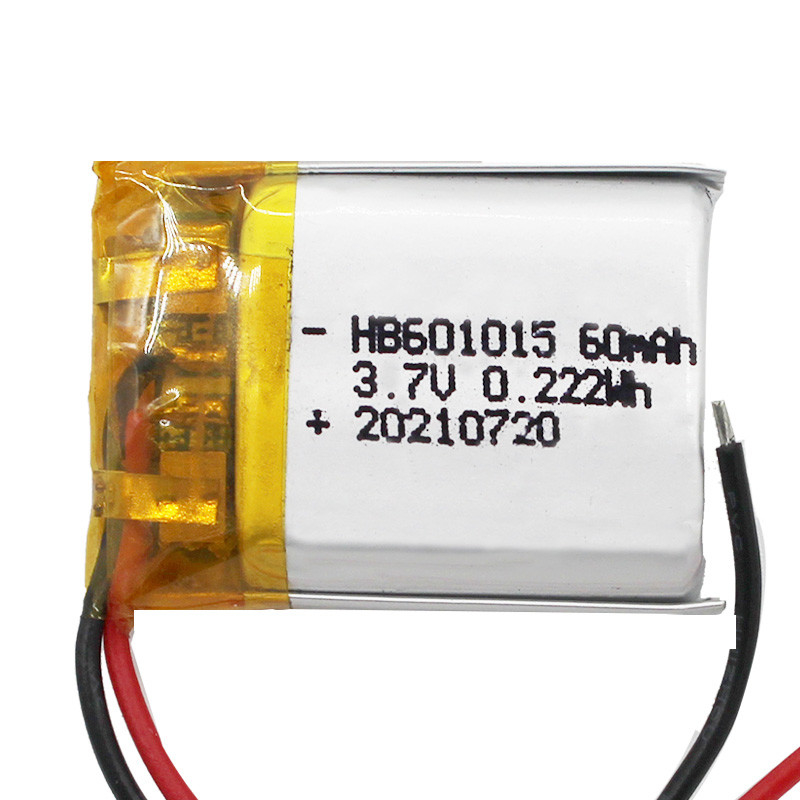

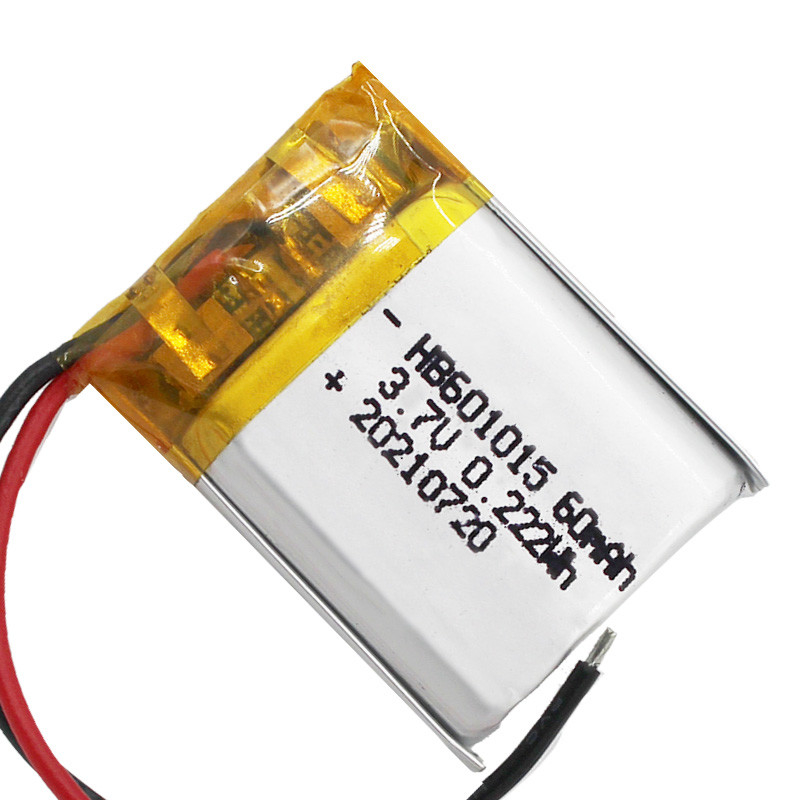

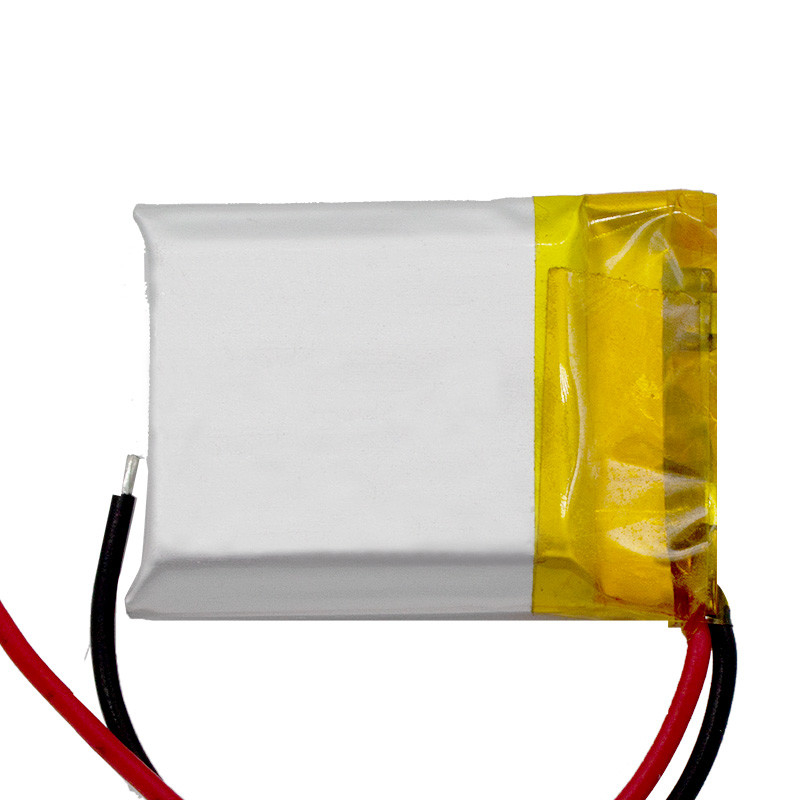

KC 601015 Li Polymer Battery 60mAh 3.7V For Infrared Temperature Detector

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 601015-60mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7VNominalCapacity:60mAh
Warranty:1YearCycleLife:300Times
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:lithiumternarybattery,lithiumpolymerbattery

Product Description

KC certification 601015 polymer lithium battery 60mAh battery 3.7V





Why choose our company?

1. We have our own factory with professional LiPo Batteries for over 15 years.
2. We have a strong R&D team and mature technical support.
3. Offering competitive price and good after-sales service.



size and capacity can be customized according to your requirements !



Items Rated Performance Remarks
Nominal Capacity 60mAh

Discharge at 0.2C after standard charge fully
Nominal Voltage 3.70V

End-of-Voltage at end of Discharge

 2.75V

End-of-Charging Voltage

 4.25V
AC Impedance  ≤100 mΩ AC 1KHz
Standard Charge 0.5C CC/CV→4.25V 0.05Ccutoff Charge time:Approx 2.5h.
Standard Discharge 0.2C CC→2.75V cutoff
Fast Charge 0.03A →0.05C cutoff  Charge time:CApprox 1h.
Fast Discharge 0.03A→7.5V cutoff
Maximum Continuous Charge Current 0.02A
Maximum Continuous Discharge Current 0.06A

Operation Temperature Range

 Charge: 0~60℃ Humidity /湿度60±25%
Discharge: -20~60℃

Storage T/H Range

 -20~50℃/60±25%



Test method and request

Items  Test Method  Request

Appearance

By sight

No obvious flaw, blot, scratch distorted, tympanous.

Open-Circuit Voltage

The open-circuit voltage shall be measured within 24 hours after standard charge.

 ≥3.7V

Impedance

AC

Impedance Resistance

 ≤100 mΩ

Nominal Capacity

0.2CB5BA discharge

Discharge Capacity

≥1800mAh


Safety Performance


Items Test Method and Condition Criteria

Over-Charge Protection


 At 20±5℃ conditions, after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h.

The battery should be no leakage, deformation, smoking and explosion during the test processes.

Over-Discharge Protection

At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of the battery.

The appearance is normal,
No explosion, No fire,
No smoking, No leakage.

Short-Circuit Protection

After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of the battery.
Cut circuit of resistance; test the battery’s voltage after charging with 1C constant current for 5 seconds.

The appearance is normal,
No explosion, No fire,
No smoking, No leakage.
