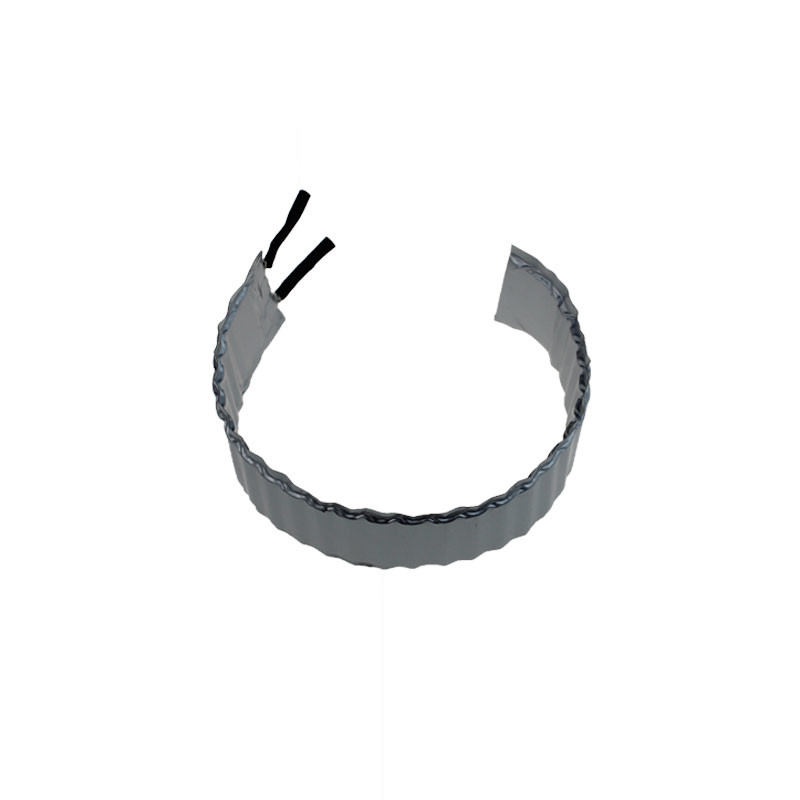

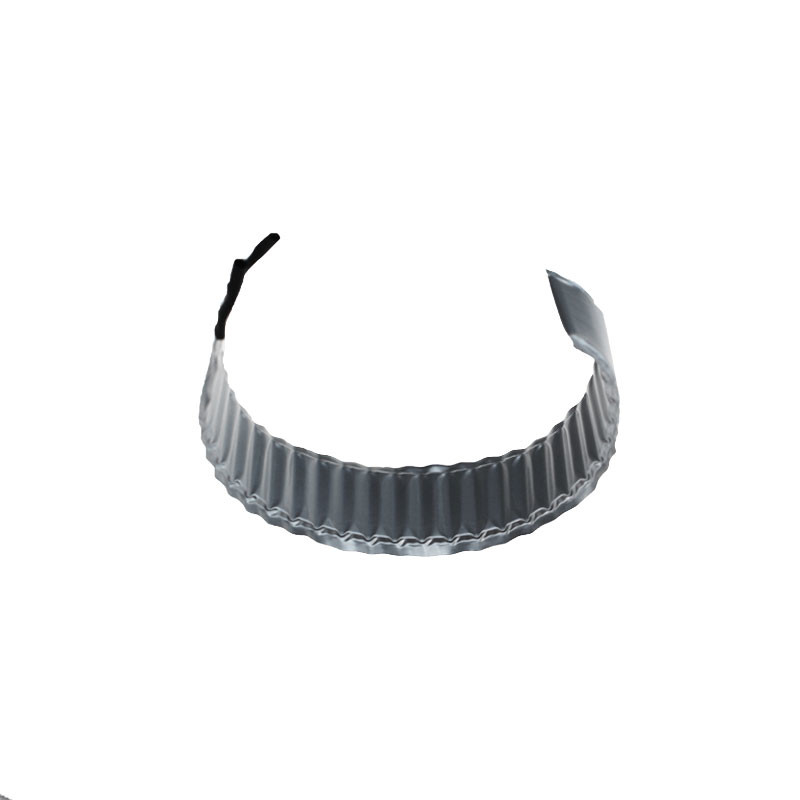

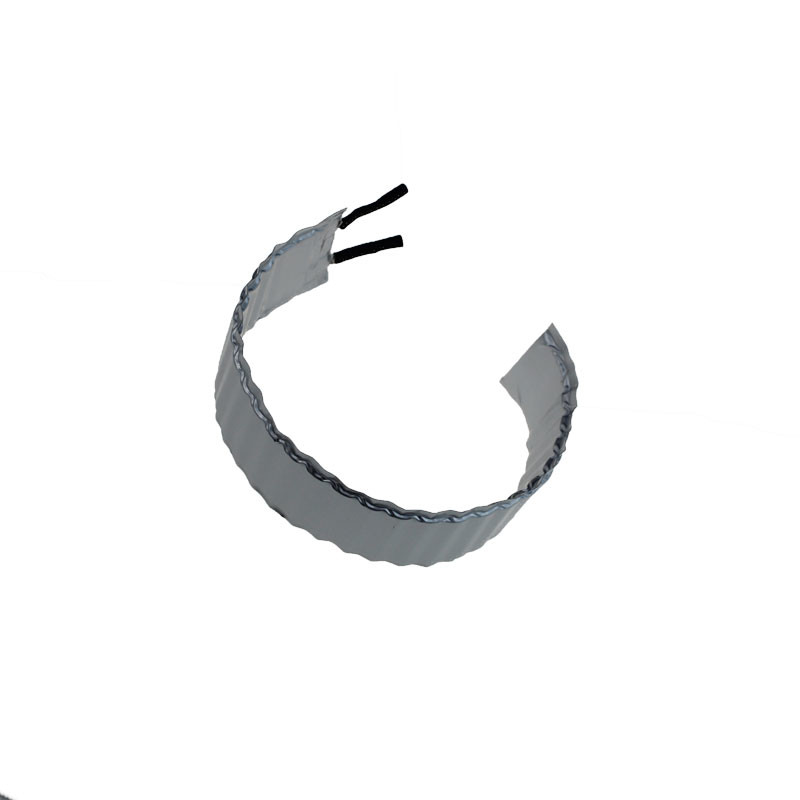

300mah 3.8v Flexible Rechargeable Battery , 1030108 Flexible Lithium Ion Battery
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 1030108-300mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.8V | NominalCapacity: | 300mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 500Times |
| StandardDischargeCurrent: | 0.2C | 1 | 1 | StandardChargeCurrent: | 0.2C |
| HighLight: | flexiblelithiumpolymerbattery,flexibleliionbattery |
1030108 flexible battery 300mAh polymer lithium battery 3.8V custom battery
| Item | Rating | Note | ||
|
Capacity |
Typical | 300mAh |
Discharge:148mA , 148mA |
|
| Min | 285mAh | |||
| Energy | 1.14Wh | |||
|
Nominal Voltage
|
3.80V | |||
|
AC Impedance Resistance |
≤150mΩ | |||
|
Discharge Cut-off Voltage |
3.0V | |||
|
Charge Voltage |
4.35V | |||
|
Max. Charge Voltage |
4.40V | |||
|
Operating Temperature |
Charge | 0~+60℃ | ||
| Discharge | -10~+60℃ | |||
|
Storage Temperature
|
less than 1 month |
-10~+60℃ |
Recommended storage temperature: 20℃,at the transportation |
|
|
less than 6 months |
-10~+45℃ | |||
Features of flexible batteries
Traditional lithium batteries and supercapacitors are rigid. When they are bent or folded, it is easy to cause the electrode material and current collector to separate, affect the electrochemical performance, and even cause short circuits. Serious safety problems occur.
But the so-called flexible battery means that it can withstand bending and twisting and stretching even foldable batteries.
The battery can maintain stable electrochemical performance in a bent state and serves as an important energy storage device for wearable electronic devices.
3.Safety instructions
◆ Don’t immerse the battery in water and seawater. Please put it in cool and dry environment if no using
◆ Do not discard or leave the battery near a heat source as fire or heater
◆ Being charged, using the battery charger specifically for that purpose
◆ Don’t reverse the positive and negative terminals
◆ Don’t connect the battery to an electrical outlet directly
◆ Don’t connect the positive and negative terminal directly with metal objects such as wire. Short
terminals of battery is strictly prohibited, it may damage battery
◆ Do not transport and store the battery together with metal objects such as necklaces, hairpins
◆ Do not strike, throw or trample the battery
◆ Do not directly solder the battery and pierce the battery with a nail or other sharp object
◆ Do not use it with other different battery, or other different lithium polymer battery model in mxture
◆ Prohibition of use of damaged cells
◆ Don’t bend or fold sealing edge. Don’t open or deform folding edge. Don’t fillet the end of the
folding edge
◆ Don’t fall, hit, bend battery body
◆ Battery pack designing and packing Prohibition injury batteries
◆ Never disassemble the cells
◆ The battery replacement shall be done only by either cells supplier or device supplier and never be
done by the user
◆ Keep the battery away from babies
◆ Any components contacting these two edges, they must be insulated
