Place of Origin: | CHINA |
---|---|
Brand Name: | HB |
Certification: | UL/PSE/CB/UN/BIS/KC/CE/CQC |
Model Number: | 501447-280mAh |
Minimum Order Quantity: | Contact sales to get |
Price: | Contact sales to get |
Packaging Details: | Contact sales to get |
Delivery Time: | Contact sales to get |
Payment Terms: | T/T |
Supply Ability: | Contact sales to get |
NominalVoltage: | 3.7V | Max.CotantDischargeCurrent: | 2800mAh10C |
---|---|---|---|
NominalCapacity: | 280mAh | CycleLife: | 300Times |
DischargeCut-offVoltage: | 3.0V | 1 | 1 | ChargingCut-offVoltage: | 4.20V |
HighLight: | ecigbatteries,ecigaccessories |

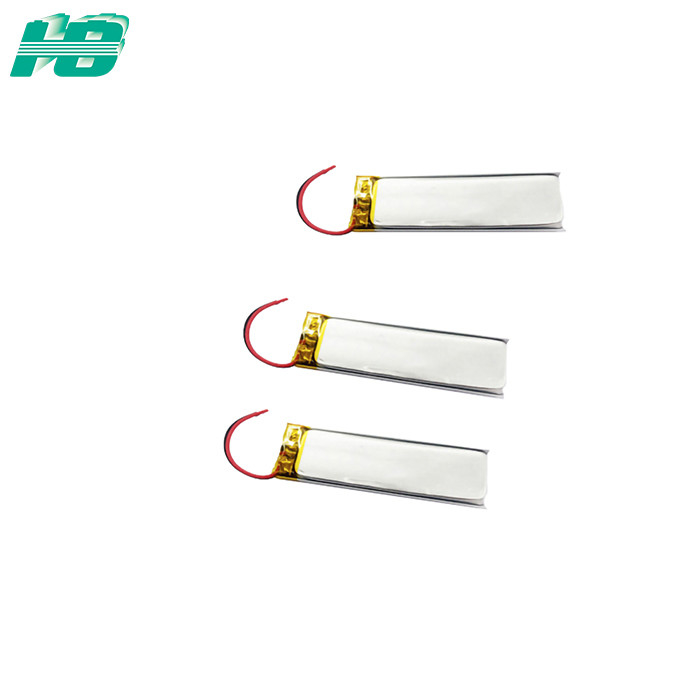

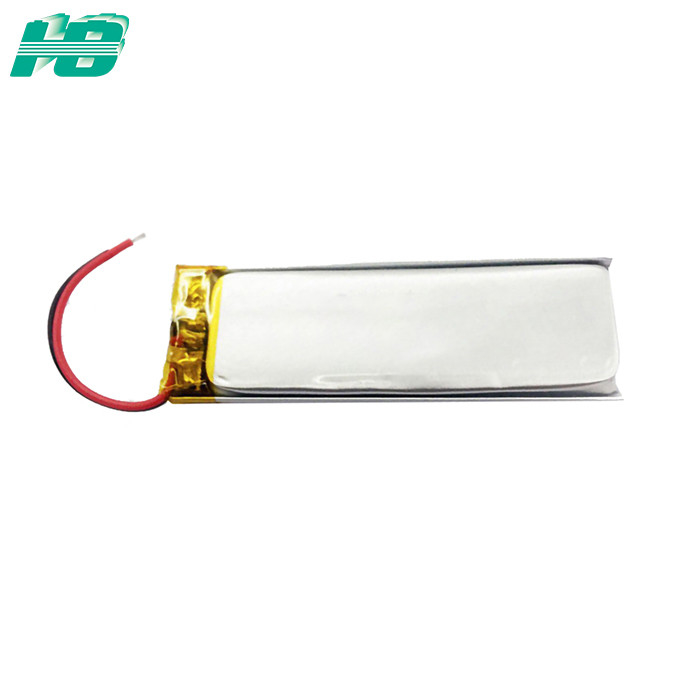

501447 electronic cigarette battery 280mAh 3.7V high magnification
Main Technical Parameter
1. Technical Parameter Of Cell and Pack:
Item |
Parameter |
Remark |
|||
1, Nominal Capacity |
280mAh |
Fully Discharge to3.0V @ 0.2C.after standard charge |
|||
2, Nominal Voltage |
3.7V |
Average Discharge Voltage (discharged at 1CmA) |
|||
3, Resistance |
cell | ≤60mΩ |
Measure the resistance with the discharge wires |
||
battery | |||||
4, Max. Constant Discharge Current |
2800mA | 10C | |||
5, Discharge Cut-off Voltage |
3.0V | ||||
6, Max. Constant Charge Current |
2800mA | 10C | |||
7, Charging Cut-off Voltage |
4.20V(PCM) | ||||
8, Size |
Thickness max. | Width max | Height max | ||
Cell | 5.2 | 14.5 | 47.5 | ||
battery | |||||
9, Range Of Work Temperature |
Charge |
0~+45℃ | |||
Dischare |
-20~+45℃ |
2. Electricity Characteristics
Item |
Testing method |
Requirement |
1. Capacity |
Discharge the battery at a constant current of 1Cto 3.0V after Standard Charge and rest 30min |
Discharge Capacity≥ 100%(Nominal Capacity) |
2. C-rate Discharge Characteristics |
Discharge the battery at a constant current of 10C to 3.0V after Standard Charge |
Discharge Capacity≥98%(10 C) |
3. Cycle Life characteristics |
Measure capacity under the cycle conditions described below, until the discharge capacity ≤80%(10C) for three times. Cycle conditions: Standard Charge(CC-CV,10C,4.2V),Rest for 30min; Discharge at 0.5C to 3.0V cut-off. Testing temperature is 23±2℃
|
Life≥300 cycles
Discharge Capacity≥80%(10C) |
4. High and low temperature performance |
After full charge under the condition of 23 ℃, measure the capacity ( compared with initial capacity ) of the cell core at different temperature and discharge with 0.2 c current to 3.0V. |
≥ 45 % at – 20 ℃ ≥ 65 % at 0 ℃ ≥ 90 % at 45 ℃
|
3. Cell parameters
Item |
Description |
Dimension and specification |
T | Thickness | ≤5.2mm |
W | Width | ≤14.5mm |
L | Length | ≤47.5mm |
A | Tab length | 6±2.0mm |
B | Tab center distance | 3.5±0.5mm |
C | Tab width |
2~2.2mm 2 -2.2mm |
D | Top sealing width | 2.5~3.5mm |
E | Tab thickness | 0.1mm |
Cap | Capacity | 280mAh |
Imp | Impedance | 60mΩ Max |
V | Voltage | 4.14-4.15V |
