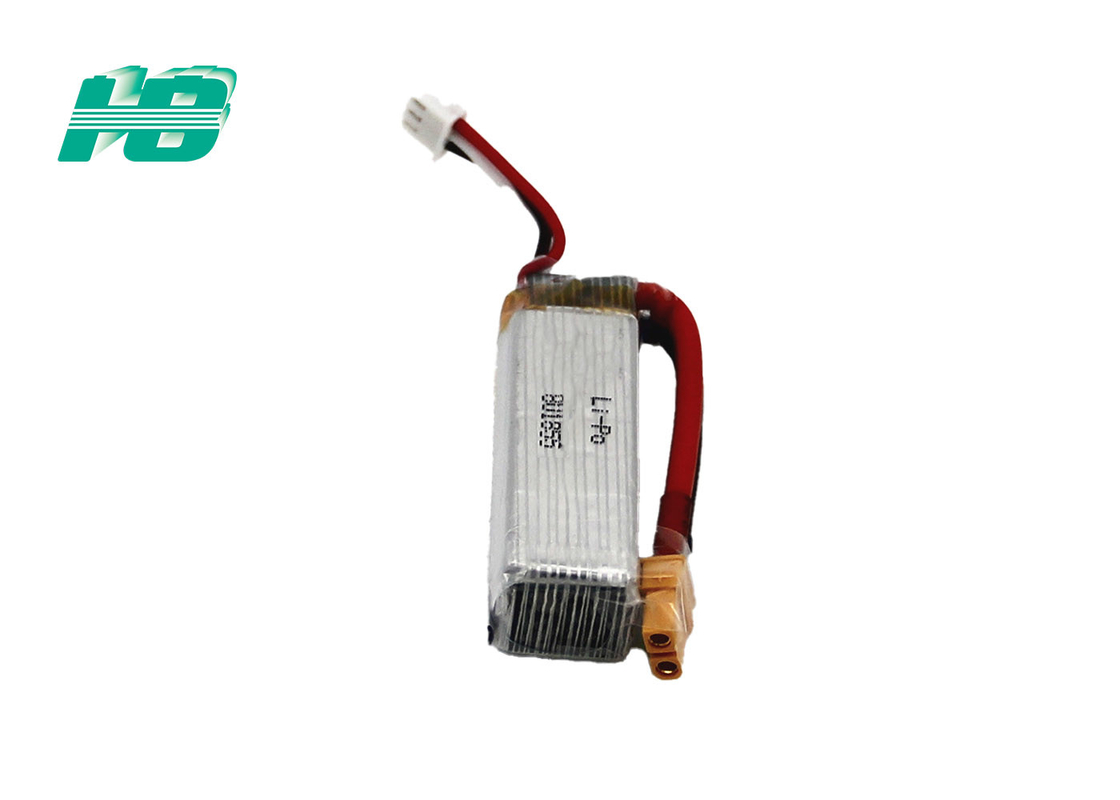

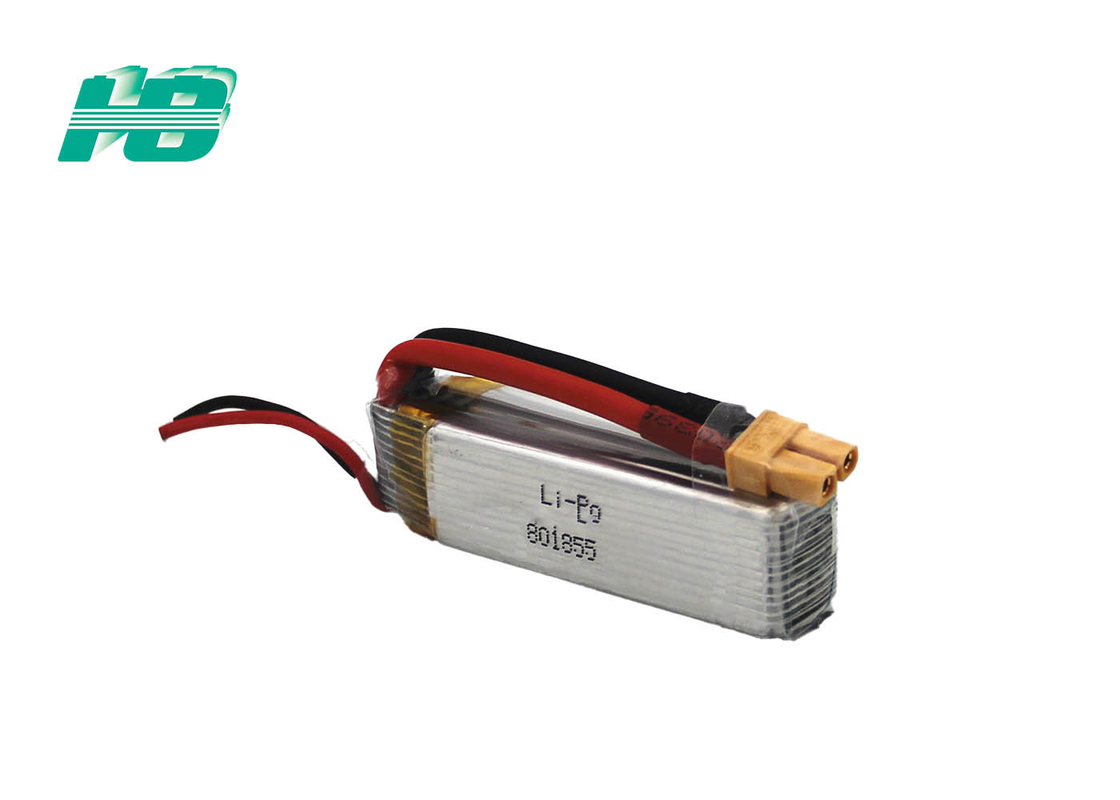

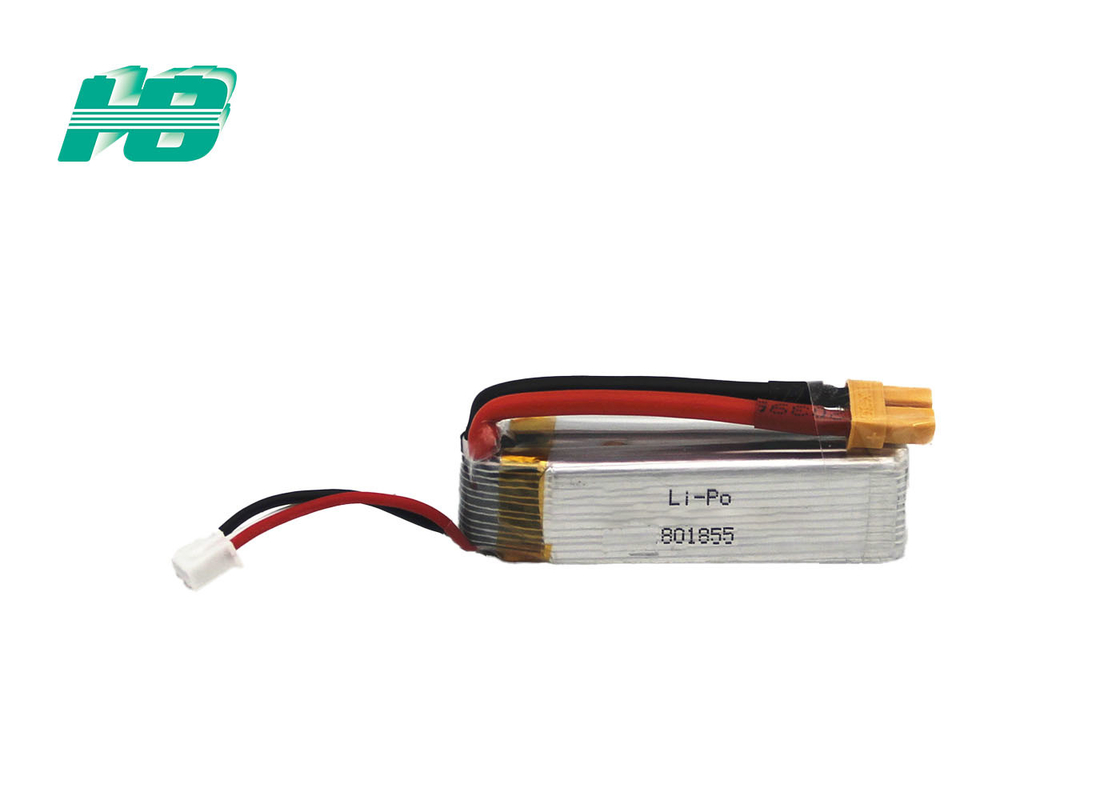

801855 E Cig Battery 700mAh 300 Times Cycle Life / Electronic Atomizer

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: UL/PSE/CB/UN/BIS/KC/CE/CQC
Model Number: 801855-700mAh
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:3.7VMax.InternalResistance:50mΩ
NominalCapacity:700mAhCycleLife:300Times
DischargeCurrent:10A11
ChargingCut-offVoltage:4.2V
HighLight:ecigbatteries,ecigaccessories

Product Description

801345 electronic cigarette battery 350mAh 3.7V high magnification



The electronic atomizer is a kind of atomizer powered by a rechargeable lithium polymer battery. Through heating the electronic liquid in the oil tank, the electronic cigarette does not need to be burned, it will only generate “steam” and no tar and carbon monoxide. People in the medical field believe that it is a potential substitute for nicotine. In theory, it can also reduce the impact of some traditional cigarettes on the body, the possibility of fire, and keep smokers who replace cigarettes with electronic cigarettes away from carcinogens in cigarettes.



1.Technical Parameter Of Cell and Pack:

Item

 Parameter

Nominal Capacity

 700mAh

Nominal Voltage

 3.7V

Resistance

 ≤50mΩ

Max. Constant Discharge Current

 10A

Discharge Cut-off Voltage

 3.0V

Max. Constant Charge Current

 700mA

Charging Cut-off Voltage

 4.20V
Thickness max. 8.0mm
Width max 18.0mm
Height max 55.0mm

Range Of Work Temperature

Charge:0~+45℃

Dischare:-20~+45℃





2. Electricity Characteristics

Item

Testing method

 Requirement

1. High and low temperature performance

After full charge under the condition of 23 ℃, measure the capacity ( compared with initial capacity ) of the cell core at different temperature and discharge with 0.2 c current to 3.0V.

≥ 45 % at – 20 ℃

≥ 65 % at 0 ℃

≥ 90 % at 45 ℃

2. Cycle Life characteristics

Measure capacity under the cycle conditions described below, until the discharge capacity ≤80%(10C) for three times. Cycle conditions: Standard Charge(CC-CV,10C,4.2V),Rest for 30min; Discharge at 0.5C to 3.0V cut-off. Testing temperature is 23±2℃

Life≥300 cycles

Discharge Capacity≥80%(10C)
3. Capacity Discharge the battery at a constant current of 1Cto 3.0V after Standard Charge and rest 30min

Discharge Capacity≥

100%(Nominal Capacity)
4. C-rate Discharge Characteristics Discharge the battery at a constant current of 10C to 3.0V after Standard Charge Discharge Capacity≥98%(10 C)
