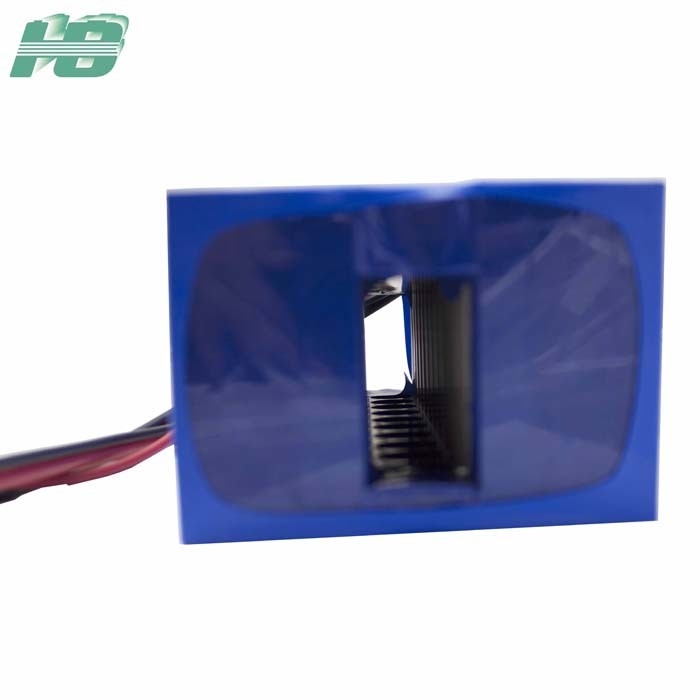

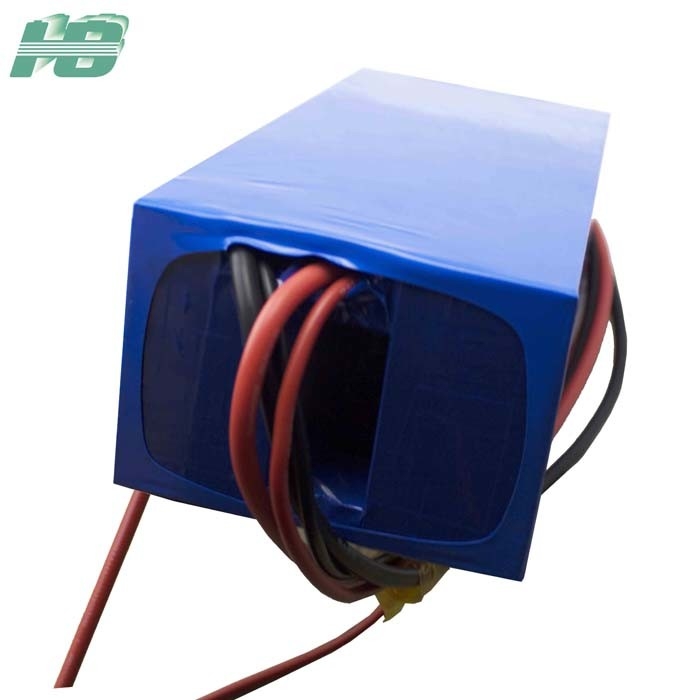

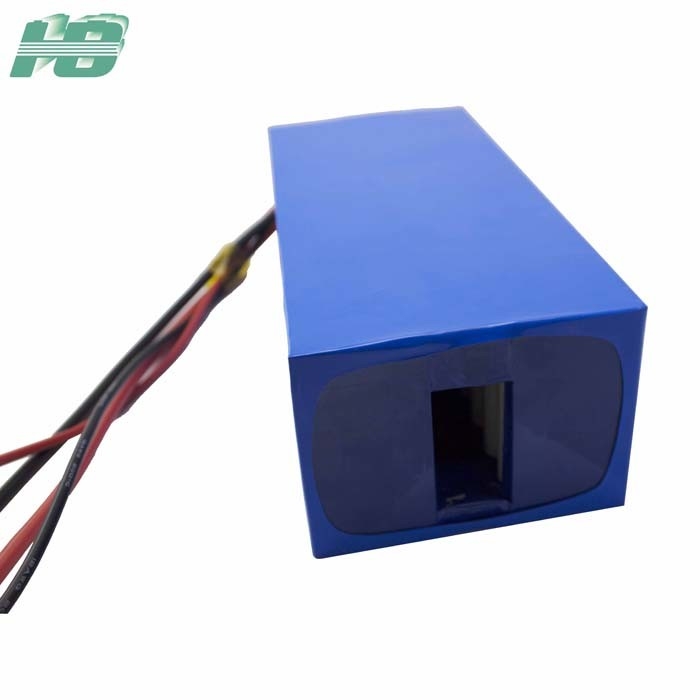

12Ah Military Lithium Battery / 43.2v High Voltage 18650 Battery Pack

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHIAN
Brand Name: HB
Certification: ROHS
Model Number: 18650-12S3P 43.2v 12Ah
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:43.2VNominalCapacity:12Ah
Warranty:1YearNominalEnergy:518Wh
StandardDischargeCurrent:0.2C11
StandardChargeCurrent:0.2C
HighLight:uavbatterypacks,militarybatterypack

Product Description

43.2v high voltage 18650 Battery Pack 12Ah Military Lithium Battery



1.Product Configuration

No. Item Specification Quantity
1 Cell 18650- 2600mAh 48
2 PCB 12S100A 1
3 wire  8 # silicone wire ( 200mm ) Red and black each 1



2.Size

Item Size(mm)
H Max.80
L Max.245.
W Max.107
L1 500±10



3.Product Specification

No.



 Items Rated Performance Remarks



1



Nominal Capacity



12Ah

Discharge at 0.2C after standard charge fully.


2 Minimum Capacity 11.5Ah
3 Nominal Energy 518Wh
4 Nominal Voltage 43.2V
5

End-of-Voltage at end of Discharge

 30V
6

End-of-Charging Voltage



 50.4V
7 AC Impedance ≤350 mΩ AC 1KHz
8 Standard Charge

0.2C CC/CV→50.4V 0.05C

cut off

Charge time

Approx 6.0h.
9 Standard Discharge 0.2C CC→30V cutoff
10 Fast Charge

0.5C CC/CV →50.4V 0.05C cut

off

Charge time

Approx 2.5h.
11 Fast Discharge 0.5C CC→30V cutoff
12

Maximum Continuous Charge Current

 12A
13

Maximum Continuous Discharge

Current

 100A





14

Operation Temperature Range

 Charge : 0~50℃



Humidity  60±25%
Discharge : -40~60℃
15

Storage T/H Range



 -45~55℃/60±25%
16 Weigh Approx: 3.5kg







17

Product Dimension

  Length:Max.285mm







Initial dimension


 Width: Max.117mm
 Height: Max.85mm
 L1:500±10mm
