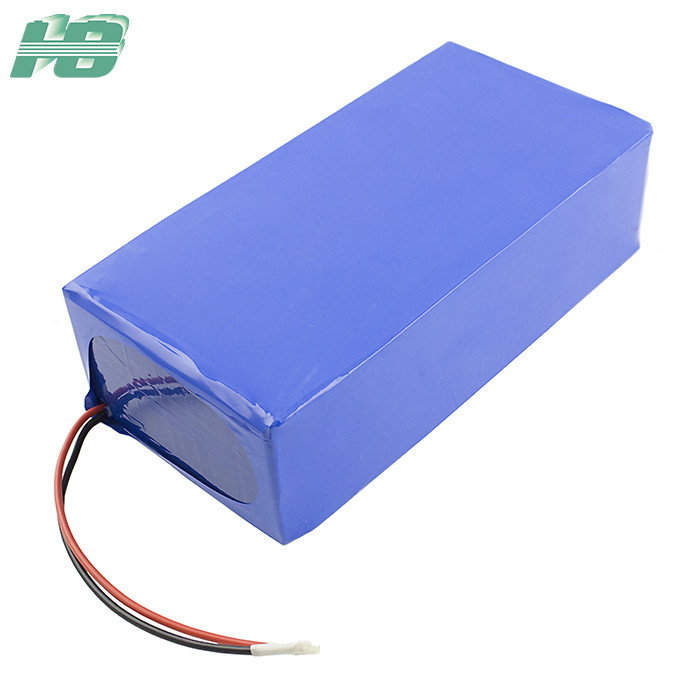

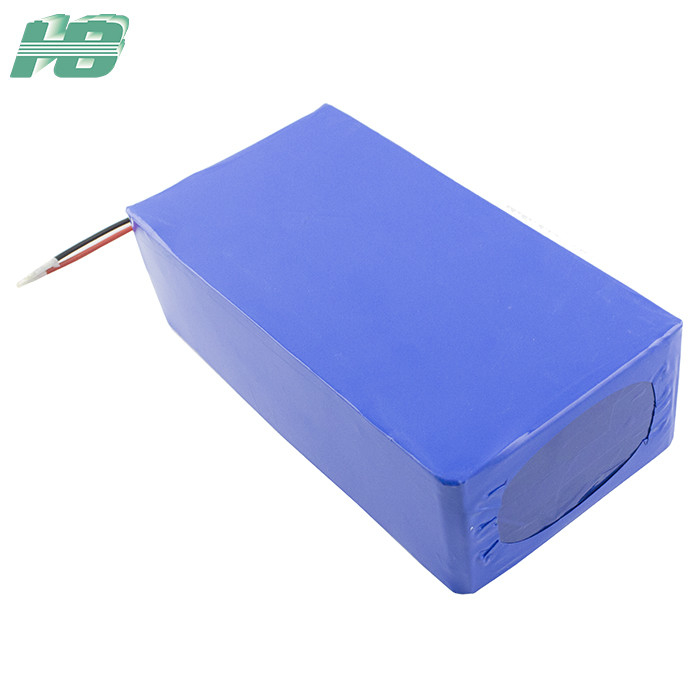

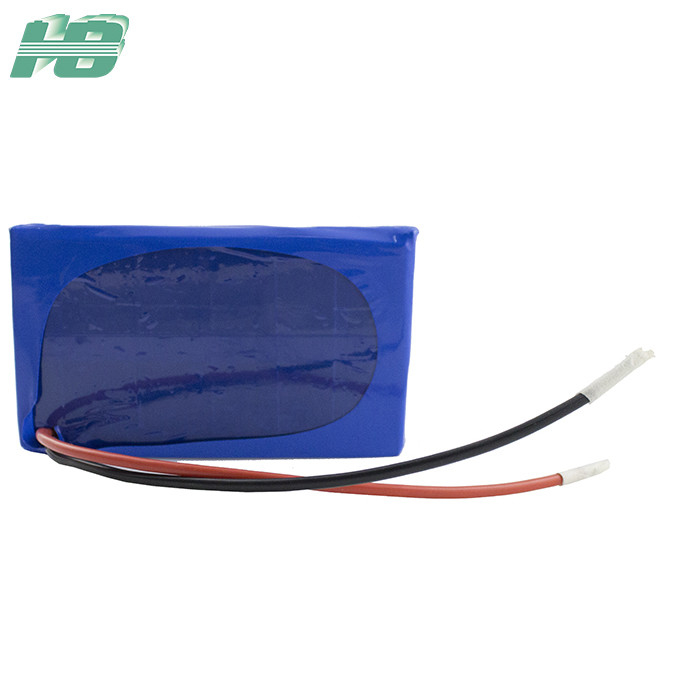

25.6Volt Power Lithium Battery 24Ah Long Cycle Life High Security Stable Performance

small.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 25.6V 24Ah
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Get Best Price Contact Now Chat Now
Detail Information
NominalVoltage:25.6VNominalCapacity:24Ah
CycleLife:≥300TimesWeight:About4.7g
BatteryInternalResistance:≤260MΩ11
Max.ContinuousDischargeCurrent:20A
HighLight:fastcharginglithiumionbatteries,longlifecyclebattery

Product Description

25.6V Power Lithium Battery 24Ah Long Cycle Life High Security Stable Performance



1. Product Configuration

No. Item  SPEC Remark
1

Cell

 32700-6000mAh-3.2V 32CELL
2 Wire / Terminal 14 # silicone wire /



3



Coding / label

Li-Fe Battery 25.6V 24Ah

614.4Wh 20200212

 /
4 PCB 8S20A /



2. Size

No. Size
L  Length: 280 mm(MAX)
W  Width: 140 mm(MAX)
T  Thick: 80 mm(MAX)
L(wire)  Line length 200±10 mm





3. Product Specification

No.

 Items Rated Performance Remarks





1

 Nominal Capacity 24Ah

Discharge at 0.2C after standard charge fully.



Minimum Capacity

 22.5Ah
2 Nominal Voltage 25.6V
3

End-of-Voltage at end of Discharge

 ≤260 mΩ ±0.4
4

End-of-Charging Voltage

 29.2V
6

Standard charge current

 4.8A
7

Standard discharge current

 4.8A
8 Fast Charge 10A →29.2 0.05C cutoff

Charge time:

Approx 3h.
9 Fast Discharge 15A→16 V cutoff
10

Maximum Continuous Discharge

Current

 20A
11

Maximum Instantaneous discharge

current

 60A





12



Operation Temperature Range



 Charge: 0~45℃



Humidity 60±25%
Discharge : -20~50℃
13

Storage T/H Range

 -20~50℃/60±25%
14 Weigh Approx/大约:4.7kg







15



Product Dimension

 Length: 280 mm(MAX)







Initial dimension


Width: 140mm(MAX)
Thick: 80 mm(MAX)
Line length:200±10mm
