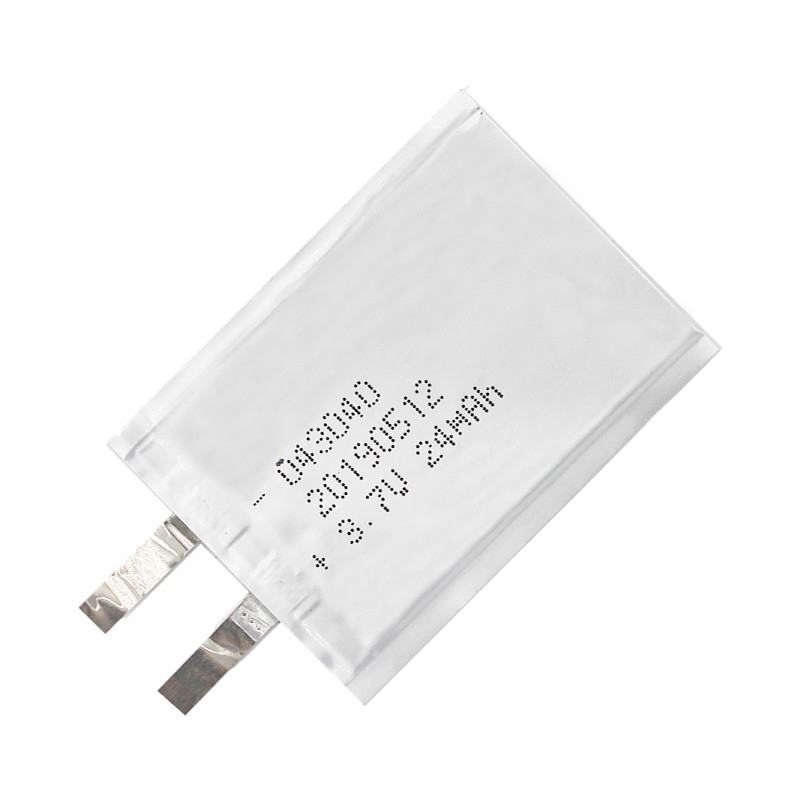

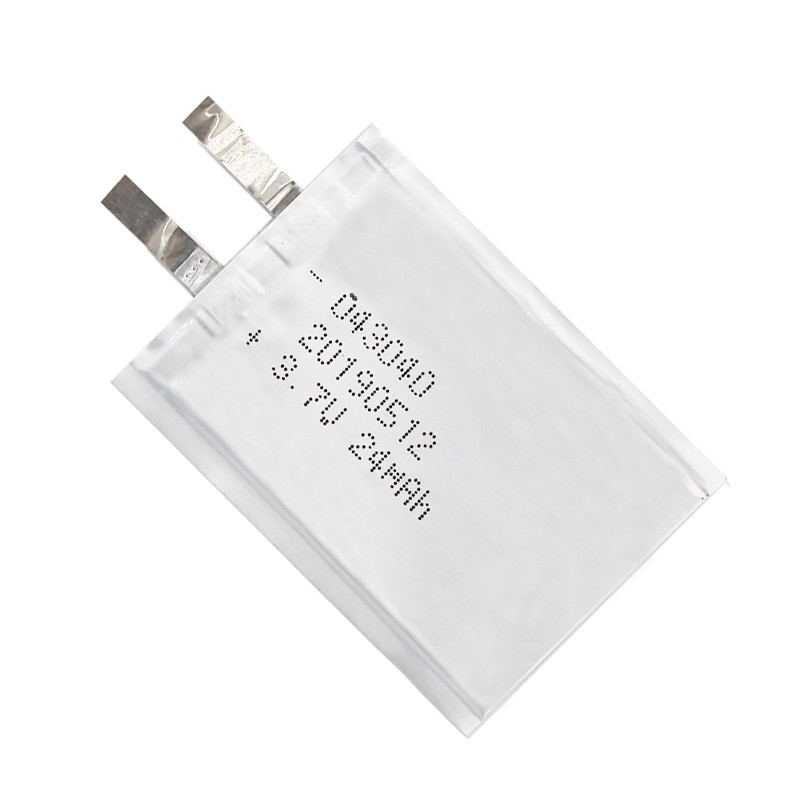

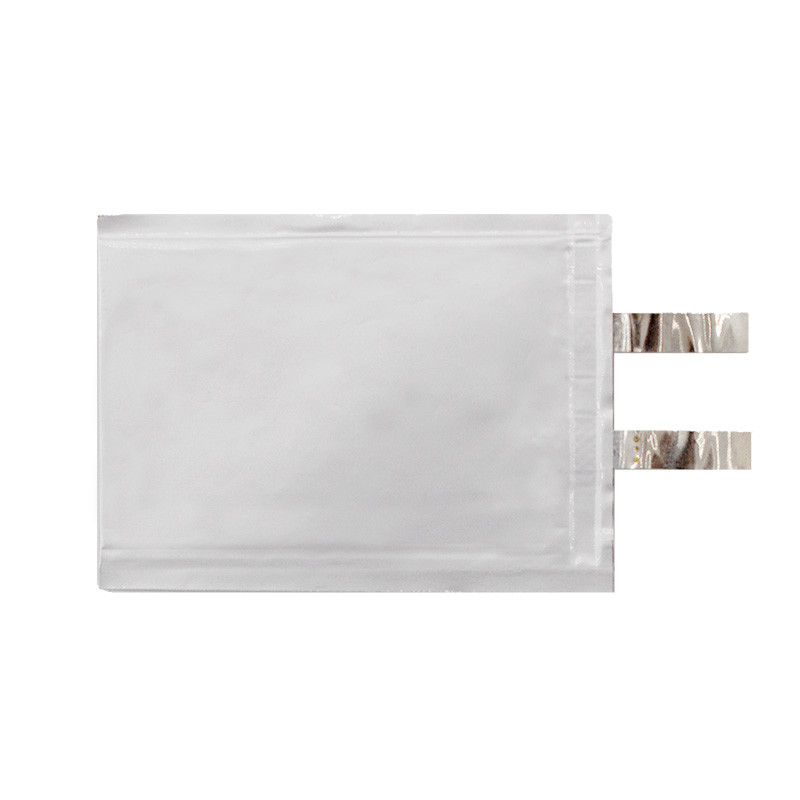

Thick 0.4mm 3.7V 24mAh 043040 Ultra Thin Lithium Battery

Basic Information
Place of Origin:CHINA
Brand Name:HB
Model Number:043040
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information

Product Description

043040 ultra-thin battery 24mAh thick 0.4mm solid battery 3.7V


Nominal voltage3.7V
Nominal Capacity24mAh
Warranty1 year
Cycle life500 times
Standard discharge current0.2C
Standard charge current0.2C


Maintenance instructions

When charging, it should not be higher than the maximum charging voltage, and when discharging, it should not be lower than the minimum working voltage.

Lithium-ion batteries must be kept above the minimum operating voltage at any time. Over-discharge or self-discharge reactions at low energies will cause decomposition and destruction of lithium-ion active materials, which may not necessarily be reduced.

Any form of overcharging of lithium-ion batteries will cause severe damage to battery performance and even explosion. Lithium-ion batteries must avoid overcharging the battery during the charging process.

Do not often deep discharge and grave charge. However, after about 30 charging cycles, the power detection chip will automatically perform a deep release and grave charge to accurately assess the battery’s status.

Avoid high temperature, which may shorten the life span, or cause an explosion in severe cases. Store in the refrigerator, if possible. If the notebook computer is using AC power, please remove the lithium-ion battery bar to avoid the heat generated by the computer.

Avoid freezing, but the freezing point of most lithium-ion battery electrolyte solutions is -40°C, which is not easy to freeze.

If it is not used for a long time, please store it with a charge of 40% to 60%. When the battery is too low, it may be over-discharged due to self-discharge.

Since lithium-ion batteries will naturally age when they are not in use, they should be purchased according to the actual amount needed when buying, and not too much
