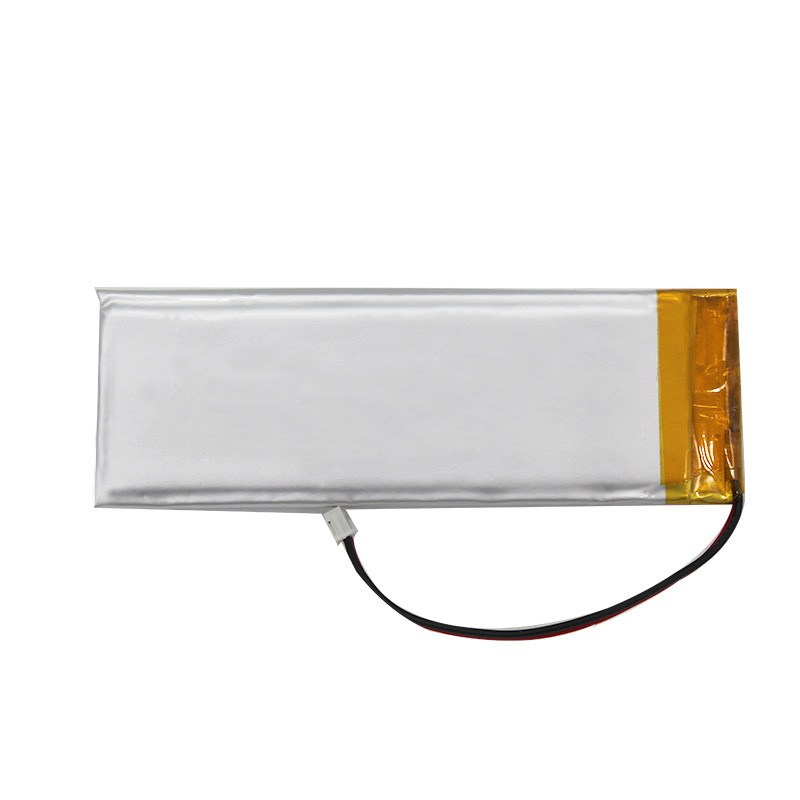

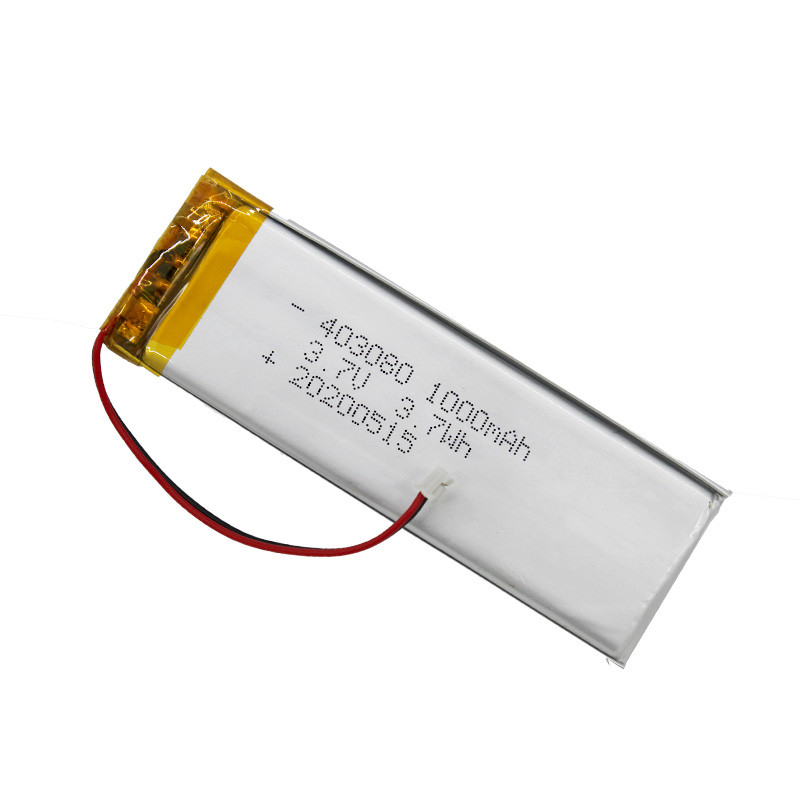

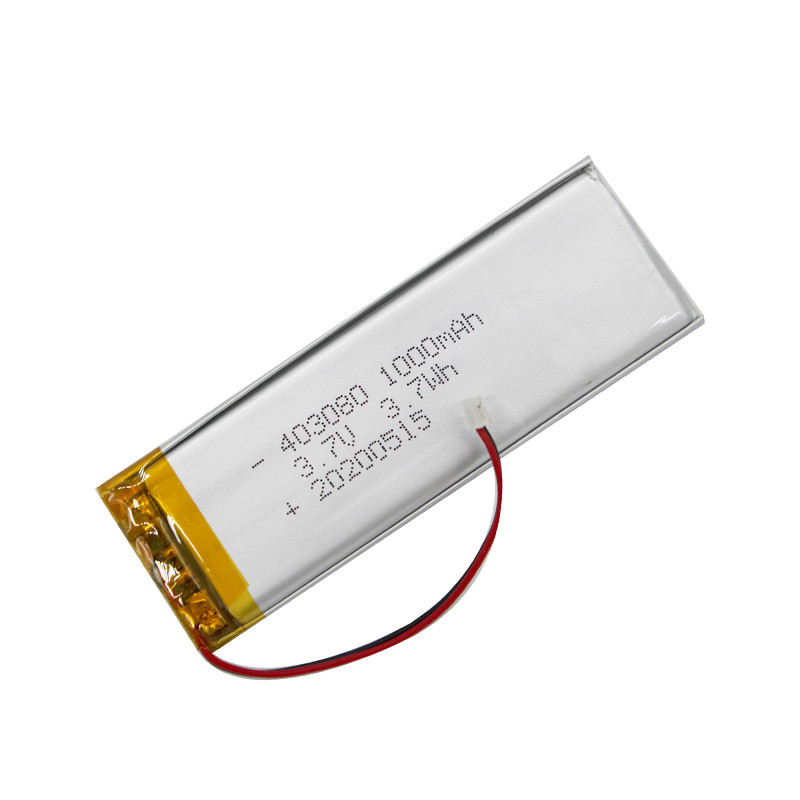

403080 Li Polymer Battery For Epidemic Prevention Equipment 1000mah 0.2C

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 403080
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
NominalVoltage:3.7VNominalCapacity:1000mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2CStandardChargeCurrent:0.2C

Product Description

4003080 Li Polymer Battery 1000mAh Epidemic prevention equipment battery 3.7V



1. Technical Parameters



Item Rating Note
Capacity Typical 1000mAh

Discharge:200mA ,

200mA

Min 1000mAh
Energy 3.7Wh

Nominal Voltage

3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 200mA 0.2C
Max. Charge Current 1000mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥4.05V
Weight Approx 14.0g
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃

Lithium Polymer Battery Advantages

1. Quality Assurance
2. Price Concessions
3. Safe And Reliable

4. Long cycle life
5. Environmental protection (not Contain Cadmium, Lead, Mercury)
6. One year warranty

7. No memory effect

8. High energy density
