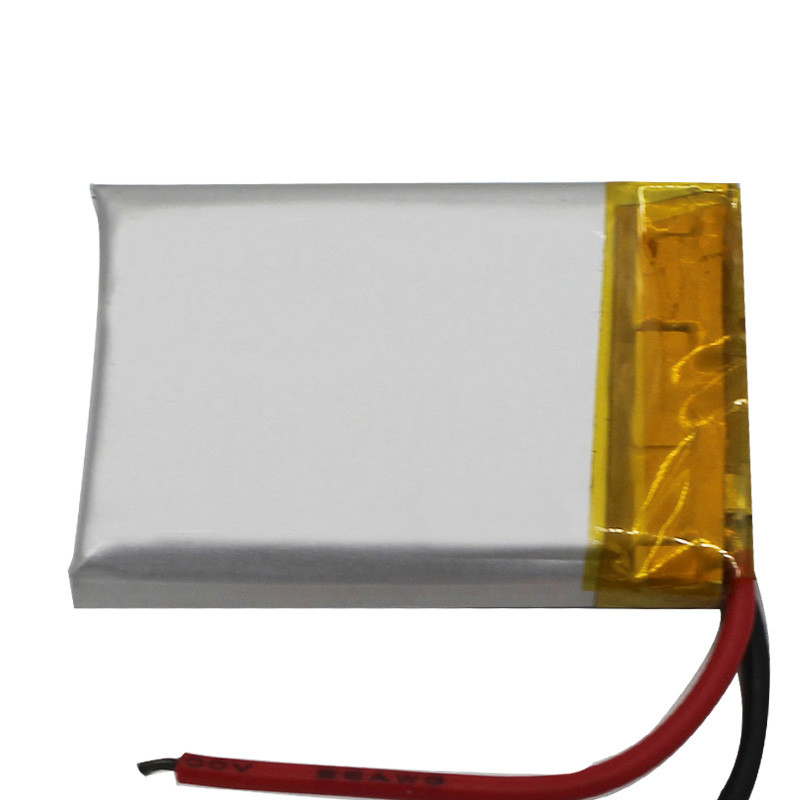

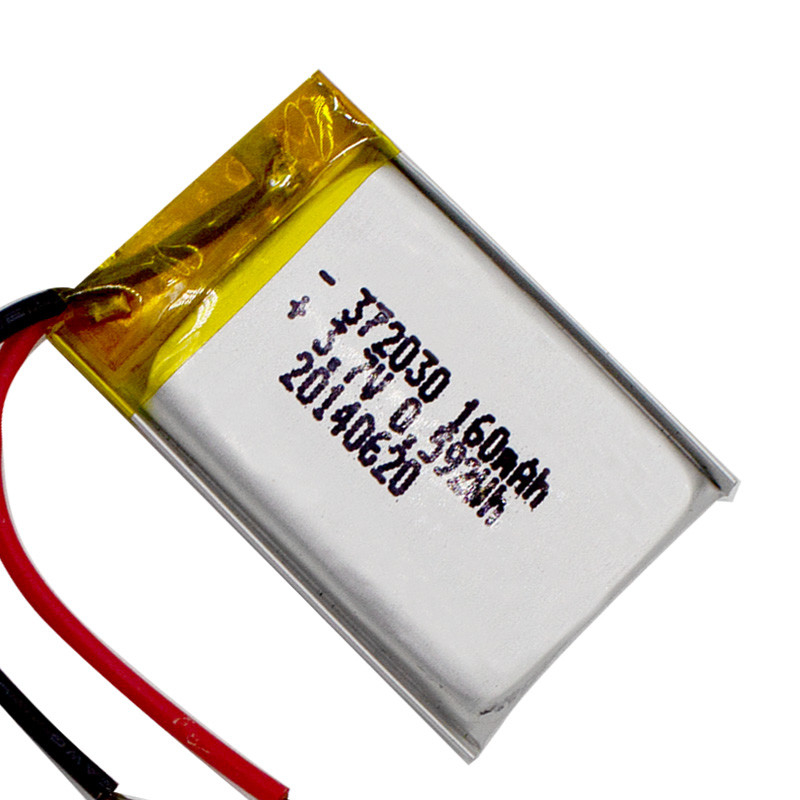

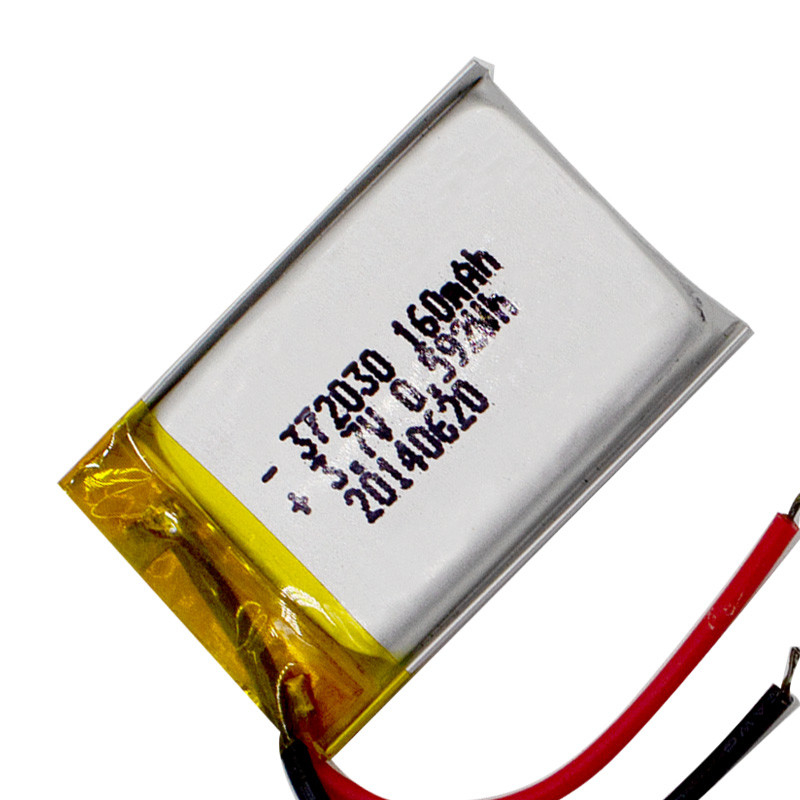

372030 Li Polymer Battery For Epidemic Prevention Equipment 160mah 0.2C

Basic Information
Place of Origin: CHINA
Brand Name: HB
Certification: ROHS
Model Number: 372030
Minimum Order Quantity: Contact sales to get
Price: Contact sales to get
Packaging Details: Contact sales to get
Delivery Time: Contact sales to get
Payment Terms: T/T
Supply Ability: Contact sales to get
Detail Information
NominalVoltage:3.7VNominalCapacity:160mAh
Warranty:1YearCycleLife:500Times
StandardDischargeCurrent:0.2CStandardChargeCurrent:0.2C

Product Description

383450 Li Polymer Battery 680mAh Epidemic prevention equipment battery 3.7V



1. Technical Parameters



Item Rating Note
Capacity Typical 160mAh

Discharge:136mA ,

136mA

Min 160mAh
Energy 0.592Wh

Nominal Voltage

3.70V
AC Impedance Resistance ≤100mΩ
Discharge Cut-off Voltage 3.0V
Charge Voltage 4.25V
Max. Charge Voltage 4.30V
Charge Time Approx 6.5h 0.2C
Standard charge current 32mA 0.2C
Max. Charge Current 1600mA 1.0C
Max. discharge current ≤45℃ 1.0C
Shipments voltage ≥4.05V
Weight Approx 5.0g
Operating Temperature Charge 0~+60℃
Discharge -10~+60℃

Storage Temperature



less than 1

month

-10~+60℃ Recommended storage temperature: 20℃,at the transportation

less than 6

months

-10~+45℃

Lithium Polymer Battery Advantages

1. Quality Assurance
2. Price Concessions
3. Safe And Reliable

4. Long cycle life
5. Environmental protection (not Contain Cadmium, Lead, Mercury)
6. One year warranty

7. No memory effect

8. High energy density
