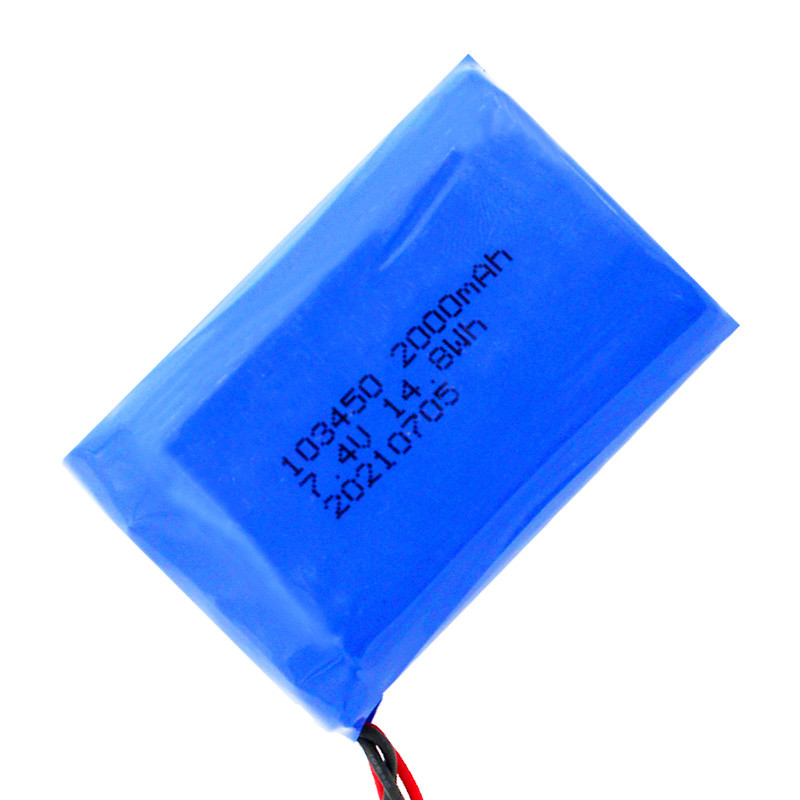

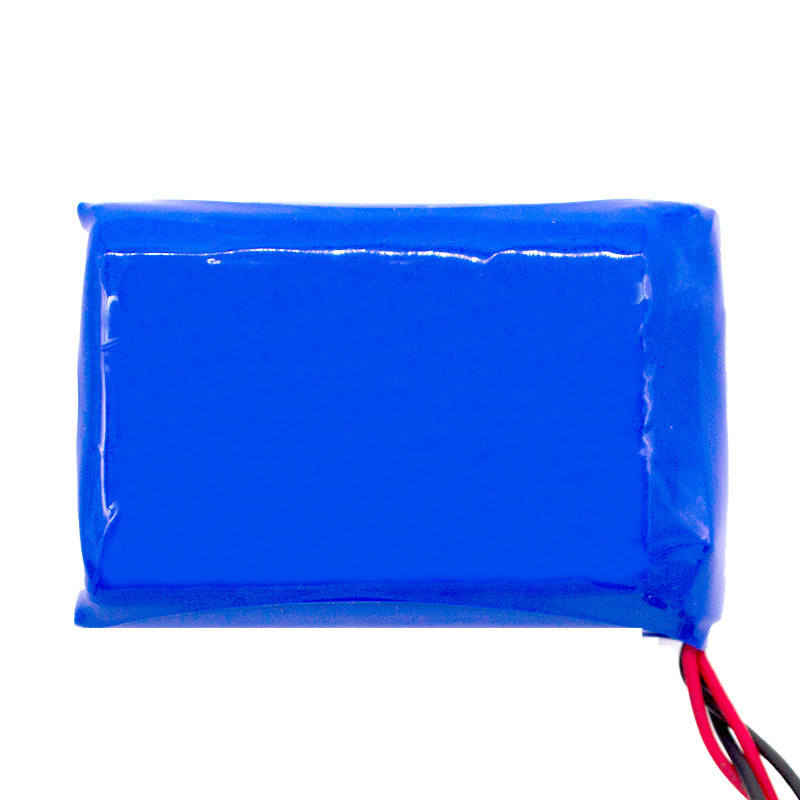

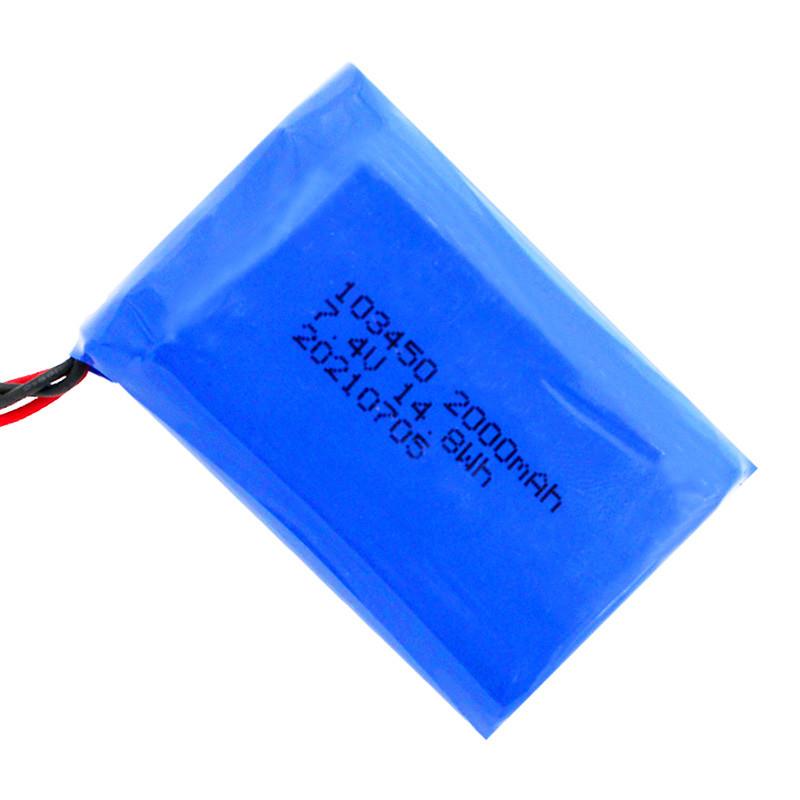

103450 Li Polymer Battery 2000mAh 7.4V 14.8Wh li polymer rechargeable battery
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS/UN38.3/CB |
| Model Number: | 103450-2000mAh |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 7.4V | NominalCapacity: | 2000mAh |
|---|---|---|---|
| Warranty: | 1Year | CycleLife: | 300Times |
| StandardDischargeCurrent: | 0.2C | StandardChargeCurrent: | 0.2C |
103450 Li Polymer Battery 2000mAh 7.4V 14.8Wh li polymer rechargeable battery
size and capacity can be customized according to your requirements !
Mainly used in GPS,MP4,watches,earphone and other digital production, etc.
1. Technical Parameters
| L | MAX;51.5 MM |
| W | MAX;31MM |
| H | MAX;37MM |
| L1 | 50±3 MM |
| 1007 22# |
| Items | Rated Performance | Remarks |
| Nominal Capacity | 2000mAh |
Discharge at 0.2C after standard charge fully |
| Nominal Voltage | 7.4V | |
|
End-of-Voltage at end of Discharge |
5.5V | |
|
End-of-Charging Voltage |
8.5V | |
| AC Impedance | ≤100 mΩ | AC 1KHz |
| Standard Charge | 0.5C CC/CV→8.5V 0.05Ccutoff | Charge time: Approx 2.5h. |
| Standard Discharge | 0.2C CC→5.50V cutoff | |
| Fast Charge | 0.9A →0.05C cutoff | Charge time: Approx 1h. |
| Fast Discharge | 0.9A→7.5V cutoff | |
| Maximum Continuous Charge Current | 0.5A | |
| Maximum Continuous Discharge Current | 1.8A | |
|
Operation Temperature Range |
Charge: 0~60℃ | Humidity /湿度60±25% |
| Discharge: -20~60℃ | ||
|
Storage T/H Range |
-20~50℃/60±25% |
Test method and request
| Items | Test Method | Request |
|
Appearance |
By sight |
No obvious flaw,blot,scratch distorted, tympanous. |
|
Open-Circuit Voltage |
The open-circuit voltage shall be measured within 24 hours after standard charge. |
≥7.4V |
|
Impedance |
AC Impedance Resistance |
≤100 mΩ |
|
Nominal Capacity |
0.2CB5BA discharge |
Discharge Capacity ≥1800mAh |
|
Cycle Life (0.2C) |
Test condition: temperature: First step:0.5C CC/CV to 8.4V Second step: Static 10 min Third step:0.2C CC to 5.0V. Fourth step: Static 10 min Fifth step: Repeat first step to fourth step 300cycles, record 300cycle then compare with first cycle value. Sixth step: end |
Higher than 80% of the Initial Capacities of the Cell
|
2. Safety Performance
| Items | Test Method and Condition | Criteria |
|
Over-Charge Protection |
At 20±5℃ conditions,after full-charging the battery with 0.5C and set the constant current and voltage supplier with 2times of the nominal voltage and current, then load it to the battery for 8h. |
The battery should be no leakage,deformation,smoking and explosion during the test processes. |
|
Over-Discharge Protection |
At 20±5℃ conditions, discharge battery to 6.0V with 0.5C constant current, then discharge with 30Ω loading for 24 hours. Check the appearance of battery. |
The appearance is normal, |
|
Short-Circuit Protection |
After fast-charging, use a cable of 0.1Ω resistance to short the battery for 1 hour. Then check the appearance of battery. |
The appearance is normal, |
