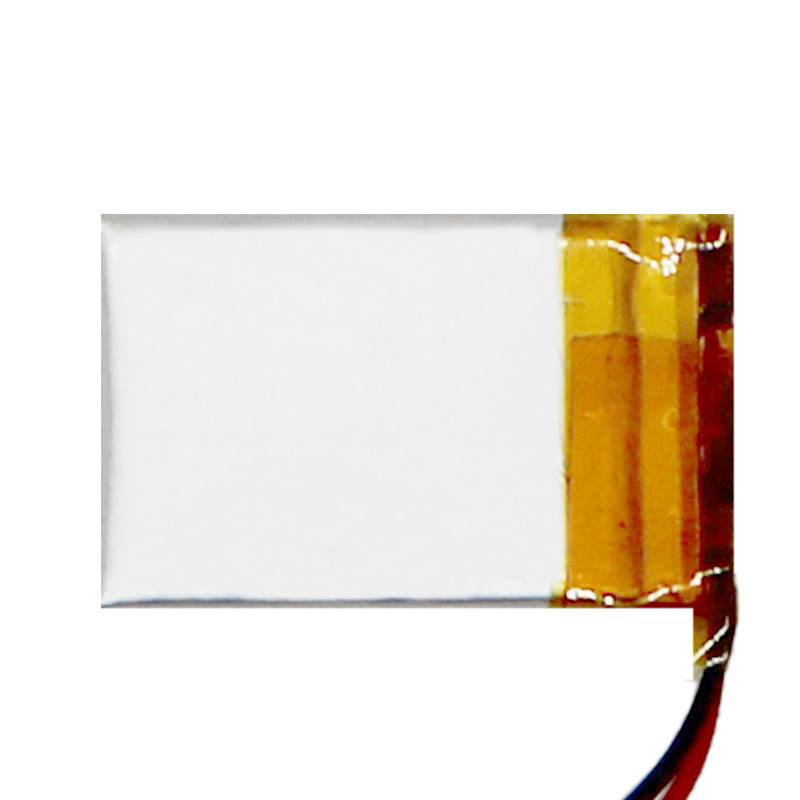

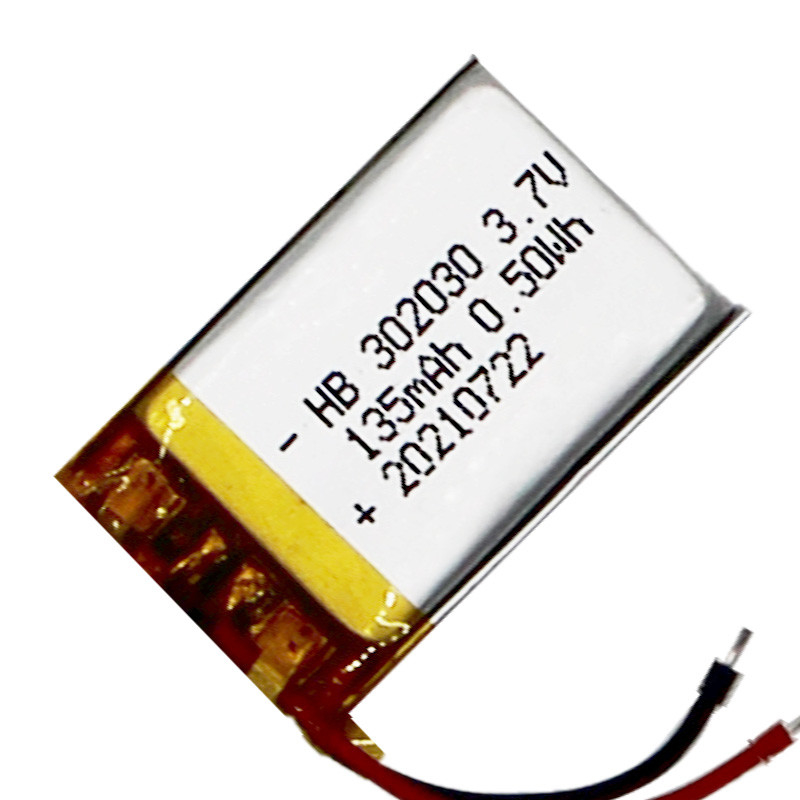

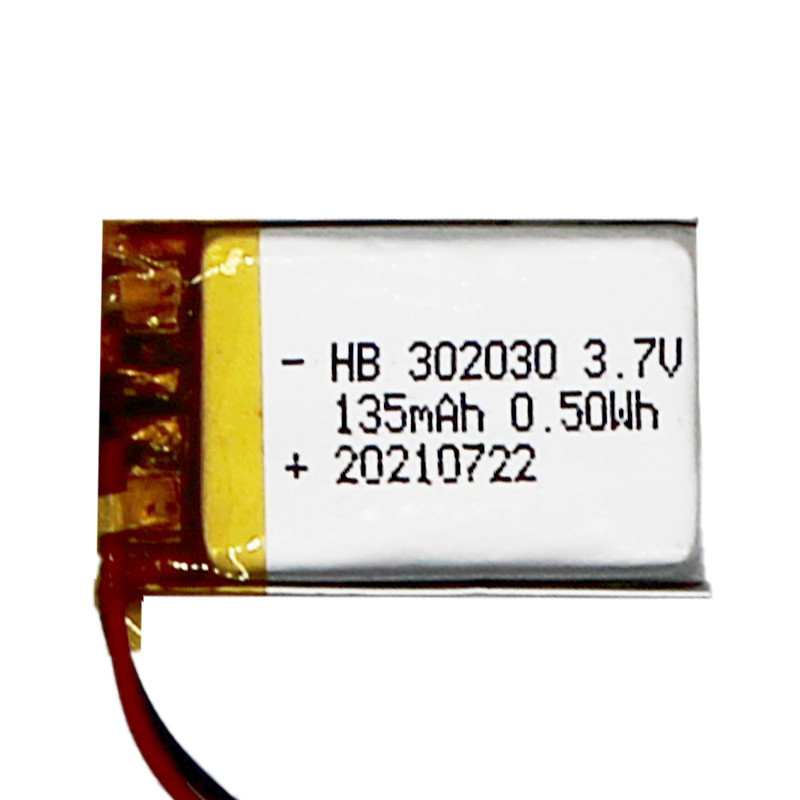

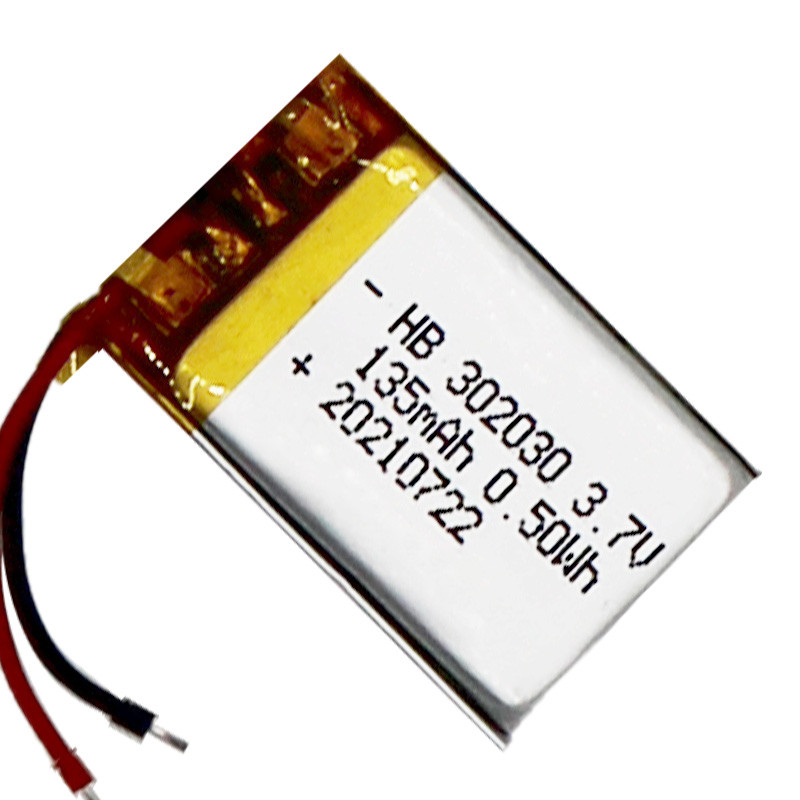

HB Custom Battery 3.7V 302030 135mAh 0.50Wh Lithium Polymer Battery

Basic Information
Place of Origin:CHINA
Brand Name:HB
Model Number:302030
Minimum Order Quantity:Contact sales to get
Price:Contact sales to get
Packaging Details:Contact sales to get
Delivery Time:Contact sales to get
Payment Terms:T/T
Supply Ability:Contact sales to get
Detail Information

Product Description

HB Custom Battery 3.7V 302030 135mAh 0.50Wh Lithium Polymer Battery


Nominal voltage3.7V
Nominal Capacity135mAh
Warranty1 year
Cycle life500 times
Standard discharge current0.2C
Standard charge current0.2C

Lithium polymer battery application field

Lithium polymer battery technology is more advanced than lithium-ion batteries. It didn’t appear until the 1970s and has only been installed in smartphones in recent years. For example, Samsung only switched to lithium polymer in the Galaxy S20 series, while other manufacturers used the technology earlier. And Samsung used lithium-ion back on the Galaxy Note 20 series.


Lithium polymer technology also uses positive and negative electrodes but uses dry solid, porous chemical, or gel-like electrolytes instead of liquids. Therefore, polymer batteries can provide a lower profile, flexible, and more robust design, and the possibility of electrolyte leakage causing thermal runaway is lower. In short, they are safer.


A significant disadvantage of this technology is that the manufacturing cost is significantly higher. The life cycle of lithium polymer is also shorter, and the energy stored in the battery is less than that of a lithium-ion battery of the same size. These batteries still need to rely on protection circuits to keep the voltage running within a safe range.


Lithium polymer battery disassembly diagram


Lithium polymer battery production process
