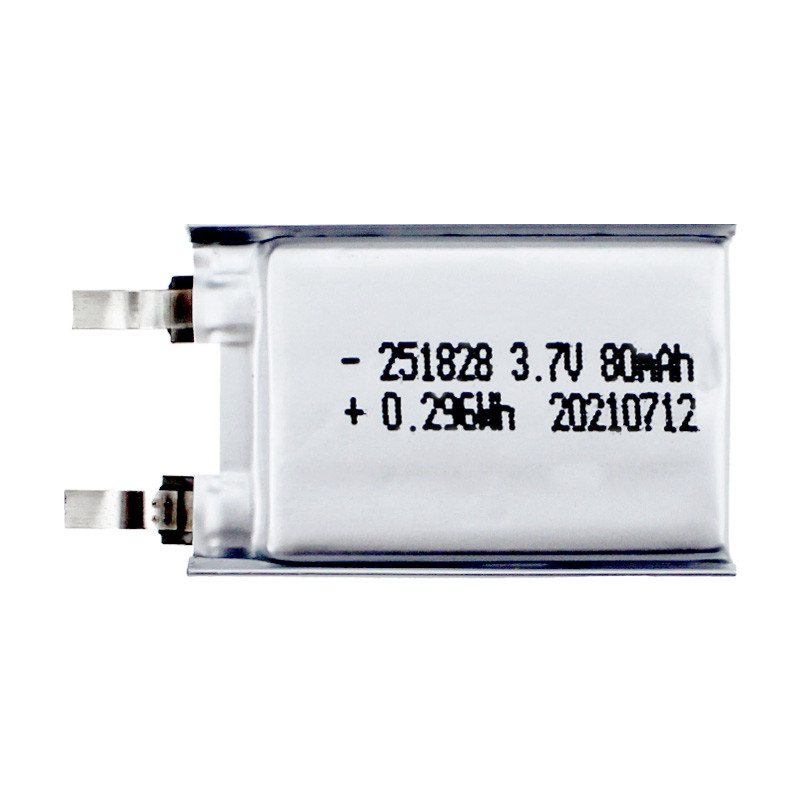

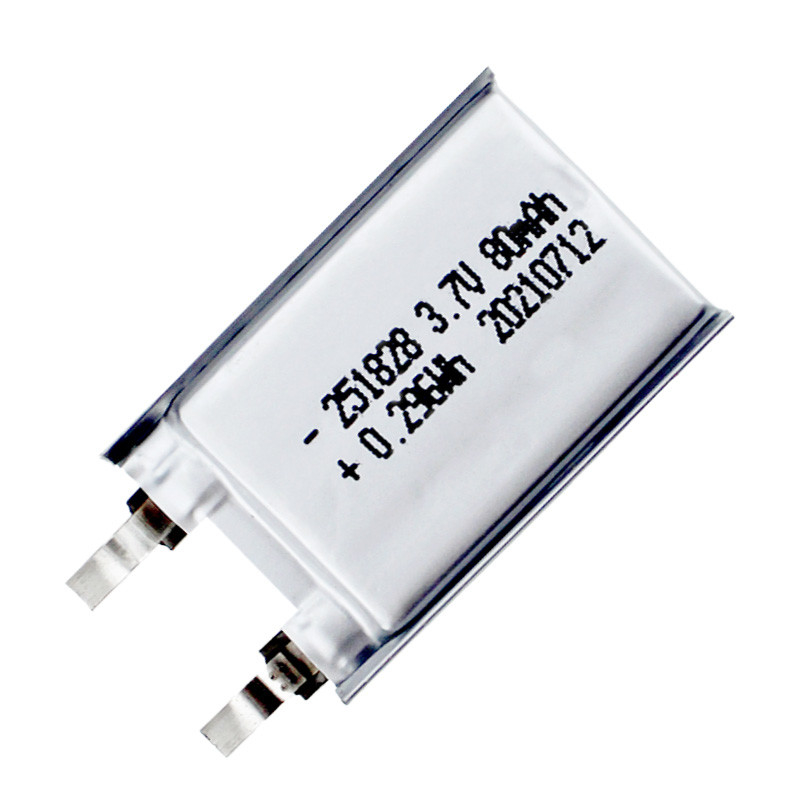

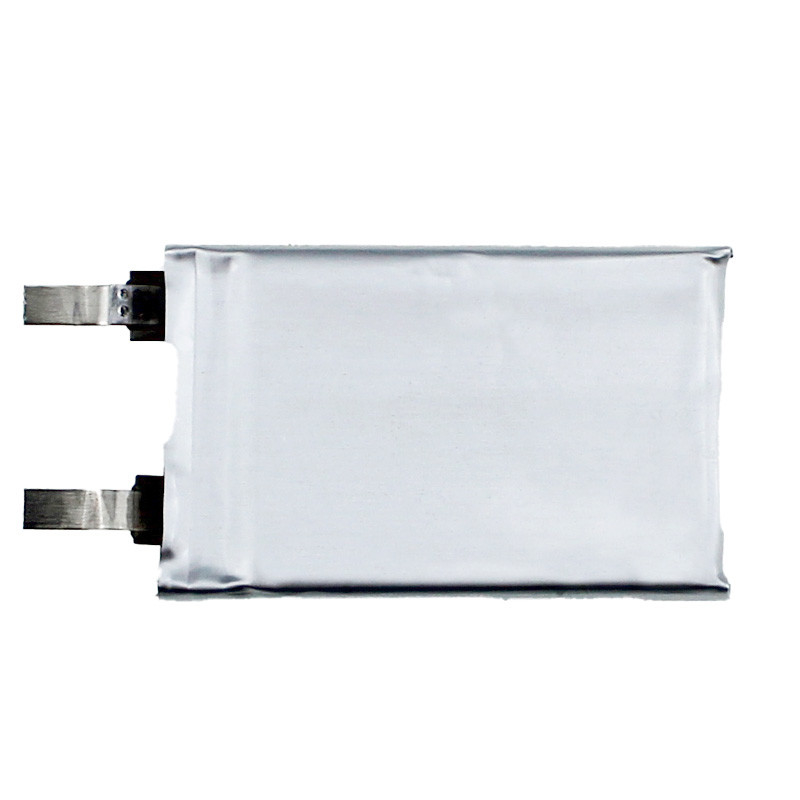

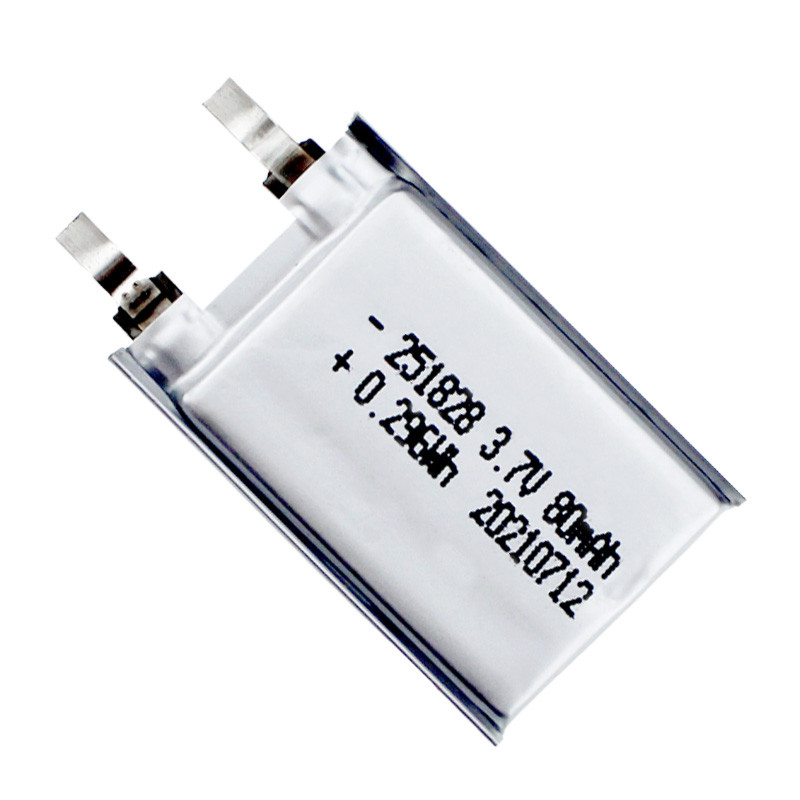

251828 3.7 V 80mah 0.296Wh Lithium Battery , Ternary Rechargeable Lithium Batteries
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HB |
| Certification: | ROHS |
| Model Number: | 251828 |
| Minimum Order Quantity: | Contact sales to get |
| Price: | Contact sales to get |
| Packaging Details: | Contact sales to get |
| Delivery Time: | Contact sales to get |
| Payment Terms: | T/T |
| Supply Ability: | Contact sales to get |
| NominalVoltage: | 3.7V | CycleLife: | 500Times |
|---|---|---|---|
| Warranty: | 1Year | StandardDischargeCurrent: | 0.2C |
| NominalCapacity: | 80mAh | StandardChargeCurrent: | 0.2C |
251828 3.7 V 80mah 0.296Wh Lithium Battery , Ternary Rechargeable Lithium Batteries
1. Technical Parameters
| Item | Rating | Note | ||
| Capacity | Typical | 80mAh |
Discharge:16mA , 16mA |
|
| Min | 80mAh | |||
| Energy |
0.296Wh |
|||
|
Nominal Voltage
|
3.70V | |||
| AC Impedance Resistance | ≤100mΩ | |||
| Discharge Cut-off Voltage | 3.0V | |||
| Charge Voltage | 4.25V | |||
| Max. Charge Voltage | 4.30V | |||
| Charge Time | Approx 6.5h | 0.2C | ||
| Standard charge current | 16mA | 0.2C | ||
| Max. Charge Current | 80mA | 1.0C | ||
| Max. discharge current | ≤45℃ | 1.0C | ||
| Shipments voltage | ≥4.05V | |||
| Weight | Approx 5.0g | |||
2. Safety instructions
HB lithium battery uses non-polluting materials and is produced with unique technology; it has fully passed UL safety certification, but as a lithium battery, like other types of cells, it has certain dangers when it is mechanically damaged.
It is forbidden to put the battery in water, and should be placed in a cool and dry environment during storage.
It is forbidden to use in the hot sunlight of moxibustion, otherwise it may cause battery overheating, fire or function failure.
It is prohibited to disassemble, open, chop or puncture the battery pack with metal.
Do not use non-special charging, which should be done in accordance with the manufacturer’s instructions.
Note the “plus positive ear” and “-negative ear “signs of the battery pack to ensure proper use.
Keep the battery pack clean and dry.
If the battery pack becomes extremely dirty, use a clean, dry cloth to wipe it.
Do not charge the battery pack for a long time.
The best performance and service life of the battery or battery pack can be obtained by charging and discharging at 15°C ~25°C.
Keep the original specification of the product for future reference.
